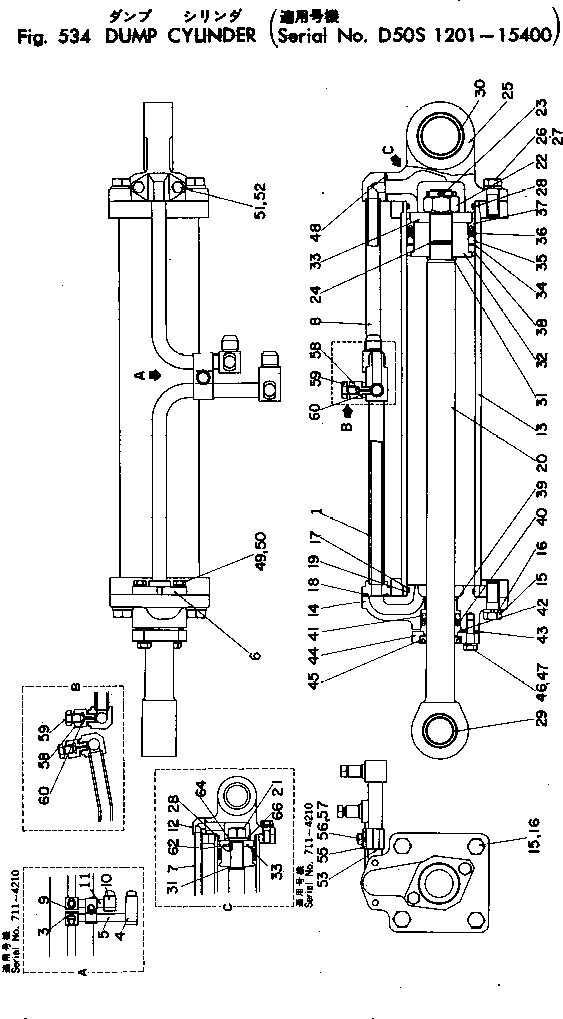

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 131-60-00044 | CYLINDER ASS'Y,L.H. | 1 | SN: 12216-15400 |
|||
| ? | 131-60-00043 | CYLINDER ASS'Y,L.H. | 1 | SN: 10901-12215 |
|||
| ? | 131-60-00042 | CYLINDER ASS'Y,L.H. | 1 | SN: 4211-10900 |
|||
| ? | 131-60-00041 | CYLINDER ASS'Y,L.H. | 1 | SN: 3841-4210 |
|||
| ? | 131-60-00040 | CYLINDER ASS'Y,L.H. | 1 | SN: 1201-3840 |
|||
| ? | 131-60-00054 | CYLINDER ASS'Y,R.H. | 1 | SN: 12216-15400 |
|||
| ? | 131-60-00053 | CYLINDER ASS'Y,R.H. | 1 | SN: 10901-12215 |
|||
| ? | 131-60-00052 | CYLINDER ASS'Y,R.H. | 1 | SN: 4211-10900 |
|||
| ? | 131-60-00051 | CYLINDER ASS'Y,R.H. | 1 | SN: 3841-4210 |
|||
| ? | 131-60-00050 | CYLINDER ASS'Y,R.H. | 1 | SN: 1201-3840 |
|||
| ? | D50S-T641D | • TUBE,L.H. | 1 | SN: 12216-15400 |
|||
| ? | D50S-T641C | • TUBE,L.H. | 1 | SN: 10901-12215 |
|||
| ? | D50S-T641B | • TUBE,L.H. | 1 | SN: 4211-10900 |
|||
| ? | D50S-T641A | • TUBE,L.H. | 1 | SN: 1201-4210 |
|||
| ? | D50S-T663C | • TUBE,R.H. | 1 | SN: 12216-15400 |
|||
| ? | D50S-T663B | • TUBE,R.H. | 1 | SN: 10901-12215 |
|||
| ? | D50S-T663A | • TUBE,R.H. | 1 | SN: 4211-10900 |
|||
| ? | D50S-T641A | • TUBE,R.H. | 1 | SN: 1201-4210 |
|||
| ? | D50S-T660A | • JOINT,L.H. | 1 | SN: 1201-4210 |
|||
| ? | D50-T646A | • JOINT,R.H. | 1 | SN: 1201-4210 |
|||
| ? | D50S-T648A | • JOINT,L.H. | 1 | SN: 1201-4210 |
|||
| ? | D50-T648A | • JOINT,R.H. | 1 | SN: 1201-4210 |
|||
| ? | D50S-T647A | • TUBE,L.H. | 1 | SN: 1201-4210 |
|||
| ? | D50-T647A | • TUBE,R.H. | 1 | SN: 1201-4210 |
|||
| ? | D50S-T642A | • FLANGE,L.H. | 1 | SN: 1201-4210 |
|||
| ? | D50-T642A | • FLANGE,R.H. | 1 | SN: 1201-4210 |
|||
| ? | D50S-T653A | • TUBE | 1 | SN: 1201-4210 |
|||
| ? | 131-60-16344 | • TUBE,L.H. | 1 | SN: 12216-15400 |
|||
| ? | D50S-T653C | • TUBE,L.H. | 1 | SN: 10901-12215 |
|||
| ? | D50S-T653B | • TUBE,L.H. | 1 | SN: 4211-10900 |
|||
| ? | 131-60-16383 | • TUBE,R.H. | 1 | SN: 12216-15400 |
|||
| ? | D50S-T664B | • TUBE,R.H. | 1 | SN: 10901-12215 |
|||
| ? | D50S-T664A | • TUBE,R.H. | 1 | SN: 4211-10900 |
|||
| ? | D50-T646A | • JOINT | 1 | SN: 1201-4210 |
|||
| ? | D50-T655A | • JOINT | 1 | SN: 1201-4210 |
|||
| ? | D50-654A | • TUBE | 1 | SN: 1201-4210 |
|||
| ? | D50-T649A | • FLANGE | 1 | SN: 1201-4210 |
|||
| ? | D50-T601B | • CYLINDER | 1 | SN: 10901-15400 |
|||
| ? | D50-T601A | • CYLINDER | 1 | SN: 1201-10900 |
|||
| ? | 131-60-16132 | • COVER | 1 | SN: 10901-15400 |
|||
| ? | 131-60-16131 | • COVER | 1 | SN: 1201-10900 |
|||
| ? | 01040-32255 | • BOLT | 4 | SN: 10901-15400 |
|||
| ? | 01000-32255 | • BOLT | 4 | SN: 1201-10900 |
|||
| ? | 01602-02268 | • WASHER | 4 | SN: 1201-@ |
|||
| ? | 07000-05110 | • O-RING | 1 | SN: 1201-@ |
|||
| ? | 07000-03035 | • O-RING | 1 | SN: 1201-@ |
|||
| ? | 131-60-16140 | • RING | 2 | SN: 1201-15400 |
|||
| ? | D50S-TP607B | • ROD | 1 | SN: 3841-15400 |
|||
| ? | D50S-T607A | • ROD | 1 | SN: 1201-3840 |
|||
| ? | 01503-33628 | • NUT | 1 | SN: 1201-3840 |
|||
| ? | 01513-33637 | • NUT | 1 | SN: 3841-15400 |
|||
| ? | 04050-06065 | • PIN | 1 | SN: 3841-@ |
|||
| ? | 04020-00514 | • PIN | 1 | SN: 1201-3840 |
|||
| ? | 07000-03032 | • O-RING | 1 | SN: 1201-@ |
|||
| ? | 131-60-91492 | • COVER | 1 | SN: 10901-15400 |
|||
| ? | 131-60-91491 | • COVER | 1 | SN: 1201-10900 |
|||
| ? | 01040-32255 | • BOLT | 4 | SN: 10901-15400 |
|||
| ? | 01000-32255 | • BOLT | 4 | SN: 1201-10900 |
|||
| ? | 01602-02268 | • WASHER | 4 | SN: 1201-15400 |
|||
| ? | 07000-05110 | • O-RING | 1 | SN: 1201-15400 |
|||
| ? | D50S-T608 | • BUSHING | 1 | SN: 1201-15400 |
|||
| ? | 131-60-16160 | • BUSHING | 1 | SN: 1201-15400 |
|||
| ? | 131-60-16170 | • WASHER | 1 | SN: 1201-15400 |
|||
| ? | D50S-T616A | • PISTON | 1 | SN: 3841-15400 |
|||
| ? | D50S-T616 | • PISTON | 1 | SN: 1201-3840 |
|||
| ? | D50S-T617A | • COVER | 1 | SN: 3841-15400 |
|||
| ? | D50S-T617 | • COVER | 1 | SN: 1201-3840 |
|||
| ? | 131-60-05020 | • SHIM ASS'Y | 1 | SN: 1201-15400 |
|||
| ? | 131-60-91530 | • • SHIM ? 0.2MM | 2 | SN: 1201-15400 |
|||
| ? | 131-60-91520 | • • SHIM ? 0.5MM | 1 | SN: 1201-15400 |
|||
| ? | 131-60-91510 | • • SHIM ? 1.0MM | 2 | SN: 1201-15400 |
|||
| ? | D50S-T624A | • RETAINER | 1 | SN: 10901-15400 |
|||
| ? | D50S-T624 | • RETAINER | 1 | SN: 1201-10900 |
|||
| ? | D50S-T625 | • V-PACKING | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP626 | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP627 | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP631 | • BUSHING | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP632 | • V-PACKING | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP633 | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | 131-60-16280 | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | 170-64-05020 | • SHIM ASS'Y | 2 | SN: 1201-15400 |
|||
| ? | 170-64-15530 | • • SHIM ? 0.3MM | 4 | SN: 1201-15400 |
|||
| ? | 170-64-15540 | • • SHIM ? 0.5MM | 4 | SN: 1201-15400 |
|||
| ? | 170-64-15550 | • • SHIM ? 1.0MM | 2 | SN: 1201-15400 |
|||
| ? | 131-60-16310 | • GLAND | 1 | SN: 1201-15400 |
|||
| ? | 07010-00050 | • SEAL | 1 | SN: 1201-15400 |
|||
| ? | 01040-31445 | • BOLT | 2 | SN: 10901-15400 |
|||
| ? | 01000-31445 | • BOLT | 2 | SN: 1201-10900 |
|||
| ? | 01602-01442 | • WASHER | 2 | SN: 1201-15400 |
|||
| ? | 07000-03035 | • O-RING | 1 | SN: 1201-15400 |
|||
| ? | 01040-31235 | • BOLT | 2 | SN: 10901-15400 |
|||
| ? | 01000-31235 | • BOLT | 2 | SN: 1201-10900 |
|||
| ? | 01602-01236 | • WASHER | 2 | SN: 1201-15400 |
|||
| ? | 01040-31230 | • BOLT | 2 | SN: 10901-15400 |
|||
| ? | 01000-31230 | • BOLT | 2 | SN: 1201-10900 |
|||
| ? | 01602-01236 | • WASHER | 2 | SN: 1201-15400 |
|||
| ? | 131-60-16352 | • CLIP | 1 | SN: 10901-15400 |
|||
| ? | D50S-T656A | • CLIP | 1 | SN: 1201-10900 |
|||
| ? | 131-60-16361 | • CLAMP | 1 | SN: 1201-15400 |
|||
| ? | 01040-31240 | • BOLT | 1 | SN: 10901-15400 |
|||
| ? | 01000-31240 | • BOLT | 1 | SN: 1201-10900 |
|||
| ? | 01602-01236 | • WASHER | 1 | SN: 1201-15400 |
|||
| ? | 130-60-18390 | • SEAT | 2 | SN: 1201-11800 |
|||
| ? | 130-60-18410 | • BOLT | 2 | SN: 1201-11800 |
|||
| ? | 07003-01419 | • GASKET | 2 | SN: 1201-11800 |
|||
| ? | 04000-00725 | • KEY | 1 | SN: 1201-3840 |
|||
| ? | D50S-T619 | • WASHER | 1 | SN: 1201-3840 |
|||
| ? | D50S-T620 | • LOCK | 1 | SN: 1201-3840 |
