| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

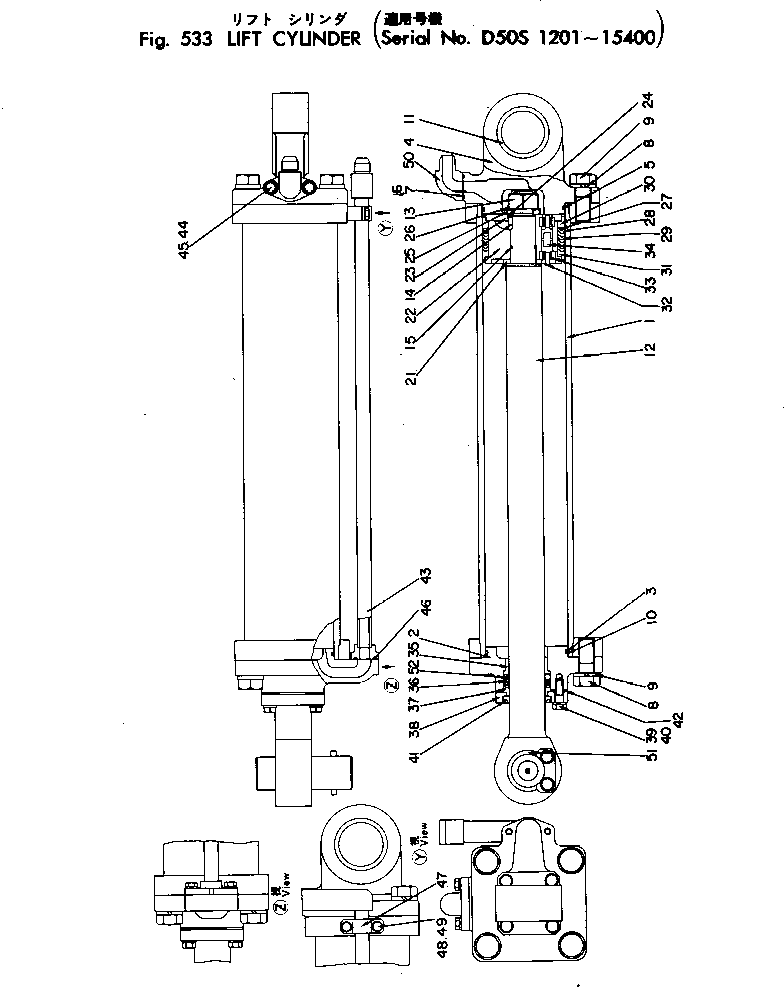

| ? | 131-60-00022 | CYLINDER ASS'Y,L.H. | 1 | SN: 10901-15400 |
|||
| ? | 131-60-00021 | CYLINDER ASS'Y,L.H. | 1 | SN: 5861-10900 |
|||
| ? | 131-60-00020 | CYLINDER ASS'Y,L.H. | 1 | SN: 1201-5860 |
|||
| ? | 131-60-00032 | CYLINDER ASS'Y,R.H. | 1 | SN: 10901-15400 |
|||
| ? | 131-60-00031 | CYLINDER ASS'Y,R.H. | 1 | SN: 5861-10900 |
|||
| ? | 131-60-00030 | CYLINDER ASS'Y,R.H. | 1 | SN: 1201-5860 |
|||
| ? | D50S-T501B | • CYLINDER | 1 | SN: 10901-15400 |
|||
| ? | D50S-T501A | • CYLINDER | 1 | SN: 1201-10900 |
|||
| ? | D50S-T502B | • COVER | 1 | SN: 10901-15400 |
|||
| ? | D50S-T502A | • COVER | 1 | SN: 1201-10900 |
|||
| ? | 07000-05140 | • O-RING | 1 | SN: 1201-@ |
|||
| ? | D50S-T503C | • COVER | 1 | SN: 10901-15400 |
|||
| ? | D50S-T503B | • COVER | 1 | SN: 5861-10900 |
|||
| ? | D50S-T503A | • COVER | 1 | SN: 1201-5860 |
|||
| ? | 07000-05140 | • O-RING | 1 | SN: 1201-15400 |
|||
| ? | 07003-03036 | • GASKET | 1 | SN: 1201-5860 |
|||
| ? | 07000-03035 | • O-RING | 1 | SN: 5861-@ |
|||
| ? | D50S-T505A | • BOLT | 8 | SN: 10901-15400 |
|||
| ? | 131-60-15460 | • BOLT | 8 | SN: 1201-10900 |
|||
| ? | 01602-02783 | • WASHER | 8 | SN: 1201-15400 |
|||
| ? | 131-60-15150 | • RING | 2 | SN: 1201-15400 |
|||
| ? | D50S-T558 | • BUSHING | 1 | SN: 1201-15400 |
|||
| ? | D50S-T507A | • ROD | 1 | SN: 1201-15400 |
|||
| ? | 01503-33628 | • NUT | 1 | SN: 1201-15400 |
|||
| ? | 04000-00722 | • KEY | 1 | SN: 1201-15400 |
|||
| ? | 07000-03040 | • O-RING | 1 | SN: 1201-@ |
|||
| ? | D50S-T515A | • WASHER | 1 | SN: 2591-15400 |
|||
| ? | D50S-T516A | • PISTON | 1 | SN: 1201-@ |
|||
| ? | D50S-TP517A | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | 04020-00514 | • PIN | 1 | SN: 1201-15400 |
|||
| ? | D50S-T519 | • WASHER | 1 | SN: 1201-15400 |
|||
| ? | D50S-T520 | • LOCK | 1 | SN: 1201-15400 |
|||
| ? | 131-60-05031 | • SHIM ASS'Y | 1 | SN: 1201-15400 |
|||
| ? | 131-60-91541 | • • SHIM ? 0.2MM | 2 | SN: 1201-15400 |
|||
| ? | 131-60-91551 | • • SHIM ? 0.5MM | 1 | SN: 1201-15400 |
|||
| ? | 131-60-91561 | • • SHIM ? 1.0MM | 2 | SN: 1201-15400 |
|||
| ? | D50S-T524A | • RETAINER | 1 | SN: 10901-15400 |
|||
| ? | D50S-T524 | • RETAINER | 1 | SN: 1201-10900 |
|||
| ? | D50S-TP525 | • V-PACKING | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP526A | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP527 | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP528A | • VALVE | 4 | SN: 1201-15400 |
|||
| ? | D50S-T529 | • SEAT | 4 | SN: 1201-15400 |
|||
| ? | D50S-TP530 | • SPRING | 2 | SN: 1201-15400 |
|||
| ? | D50S-TP531 | • BUSHING | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP532 | • V-PACKING | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP534 | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | D50S-T535 | • GRAND | 1 | SN: 1201-15400 |
|||
| ? | 01040-31445 | • BOLT | 4 | SN: 10901-15400 |
|||
| ? | 01000-31445 | • BOLT | 4 | SN: 1201-10900 |
|||
| ? | 01602-01442 | • WASHER | 4 | SN: 1201-15400 |
|||
| ? | D50S-TP537 | • SEAL | 1 | SN: 1201-15400 |
|||
| ? | 170-64-05020 | • SHIM ASS'Y | 4 | SN: 1201-15400 |
|||
| ? | 170-64-15530 | • • SHIM ? 0.3MM | 4 | SN: 1201-15400 |
|||
| ? | 170-64-15540 | • • SHIM ? 0.5MM | 4 | SN: 1201-15400 |
|||
| ? | 170-64-15550 | • • SHIM ? 1.0MM | 2 | SN: 1201-15400 |
|||
| ? | D50S-T541C | • TUBE | 1 | SN: 10901-15400 |
|||
| ? | D50S-T541B | • TUBE | 1 | SN: 5861-10900 |
|||
| ? | D50S-T541A | • TUBE | 1 | SN: 1201-5860 |
|||
| ? | 01040-31230 | • BOLT | 2 | SN: 10901-15400 |
|||
| ? | 01000-31230 | • BOLT | 2 | SN: 1201-10900 |
|||
| ? | 01602-01236 | • WASHER | 2 | SN: 1201-@ |
|||
| ? | 07000-03035 | • O-RING | 1 | SN: 1201-@ |
|||
| ? | 131-60-15581 | • CLIP | 1 | SN: 1201-15400 |
|||
| ? | 01040-31020 | • BOLT | 2 | SN: 10901-15400 |
|||
| ? | 01000-31020 | • BOLT | 2 | SN: 1201-10900 |
|||
| ? | 01602-01030 | • WASHER | 2 | SN: 1201-@ |
|||
| ? | 131-60-15391 | • ELBOW | 1 | SN: 10901-15400 |
|||
| ? | D50S-T560 | • ELBOW | 1 | SN: 5861-10900 |
|||
| ? | D50-T95A | • JOINT | 1 | SN: 1201-5860 |
|||
| ? | D50S-T508 | • BUSHING | 1 | SN: 1201-15400 |
|||
| ? | D50S-TP551 | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | 01040-01235 | • BOLT,(NOT SHOWN) | 2 | SN: 10901-15400 |
|||
| ? | 01000-31235 | • BOLT,(NOT SHOWN) | 2 | SN: 5861-10900 |
|||
| ? | 01602-01236 | • WASHER,(NOT SHOWN) | 2 | SN: 5861-15400 |
