| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

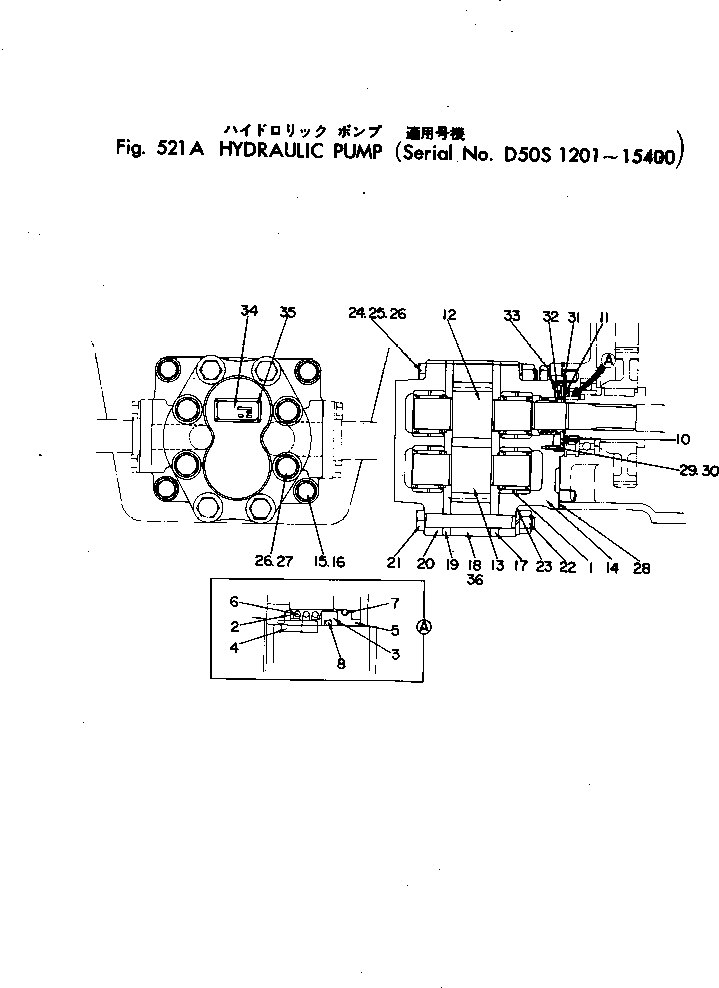

| ? | 131-60-00072 | HYDRAULIC PUMP A. | 1 | SN: 10901-15400 |
|||
| ? | 131-60-00071 | HYDRAULIC PUMP A. | 1 | SN: 3771-10900 |
|||
| ? | 131-60-00070 | HYDRAULIC PUMP A. | 1 | SN: 1201-3770 |
|||
| ? | 130-60-91171 | • BEARING | 4 | SN: 1201-15400 |
|||
| ? | 170-78-13730 | • RING | 1 | SN: 1201-15400 |
|||
| ? | 170-78-13740 | • RING | 1 | SN: 1201-15400 |
|||
| ? | 170-78-13720 | • KEY | 1 | SN: 1201-15400 |
|||
| ? | 170-78-13750 | • RING | 1 | SN: 1201-15400 |
|||
| ? | 170-78-13760 | • SPRING | 1 | SN: 1201-15400 |
|||
| ? | D50S-T320 | • O-RING | 1 | SN: 1201-3770 |
|||
| ? | 170-78-13770 | • O-RING | 1 | SN: 1201-15400 |
|||
| ? | D50S-T323A | • COVER | 1 | SN: 3771-15400 |
|||
| ? | D50S-T323 | • COVER | 1 | SN: 1201-3770 |
|||
| ? | D50S-T324A | • PLATE | 1 | SN: 3771-15400 |
|||
| ? | D50S-T324 | • PLATE | 1 | SN: 1201-3770 |
|||
| ? | 170-78-13690 | • GEAR | 1 | SN: 1201-15400 |
|||
| ? | 170-78-13710 | • GEAR | 1 | SN: 1201-15400 |
|||
| ? | D50S-T305A | • RETAINER | 1 | SN: 1201-15400 |
|||
| ? | 01040-31640 | • BOLT | 4 | SN: 10901-@ |
|||
| ? | 01000-31640 | • BOLT | 4 | SN: 1201-10900 |
|||
| ? | 01602-01648 | • WASHER | 4 | SN: 1201-@ |
|||
| ? | D50S-T303 | • PLATE | 1 | SN: 1201-15400 |
|||
| ? | D50S-T301 | • CASE | 1 | SN: 1201-15400 |
|||
| ? | D50S-T302 | • PLATE | 1 | SN: 1201-15400 |
|||
| ? | D50S-T340 | • COVER | 1 | SN: 1201-15400 |
|||
| ? | 170-78-13680 | • BOLT | 2 | SN: 1201-15400 |
|||
| ? | 01503-31816 | • NUT | 2 | SN: 1201-15400 |
|||
| ? | 01602-01854 | • WASHER | 2 | SN: 1201-@ |
|||
| ? | 01041-61845 | • BOLT | 2 | SN: 1201-15400 |
|||
| ? | 01503-31816 | • NUT | 2 | SN: 1201-15400 |
|||
| ? | 01602-01854 | • WASHER | 6 | SN: 1201-15400 |
|||
| ? | D50S-T309 | • BOLT | 4 | SN: 1201-15400 |
|||
| ? | D50S-T327 | • GASKET | 1 | SN: 1201-15400 |
|||
| ? | D50S-T325 | • SCREW | 6 | SN: 1201-15400 |
|||
| ? | 01601-00410 | • WASHER | 6 | SN: 3771-15400 |
|||
| ? | D50S-T326 | • SCREW | 1 | SN: 1201-15400 |
|||
| ? | 170-78-13780 | • O-RING | 1 | SN: 1201-15400 |
|||
| ? | 07000-03068 | • O-RING | 1 | SN: 1201-15400 |
|||
| ? | D50S-T333 | • PLATE | 1 | SN: 1201-15400 |
|||
| ? | D50S-T334 | • RIVET | 4 | SN: 1201-15400 |
|||
| ? | 170-78-13620 | • PIN | 4 | SN: 1201-15400 |
