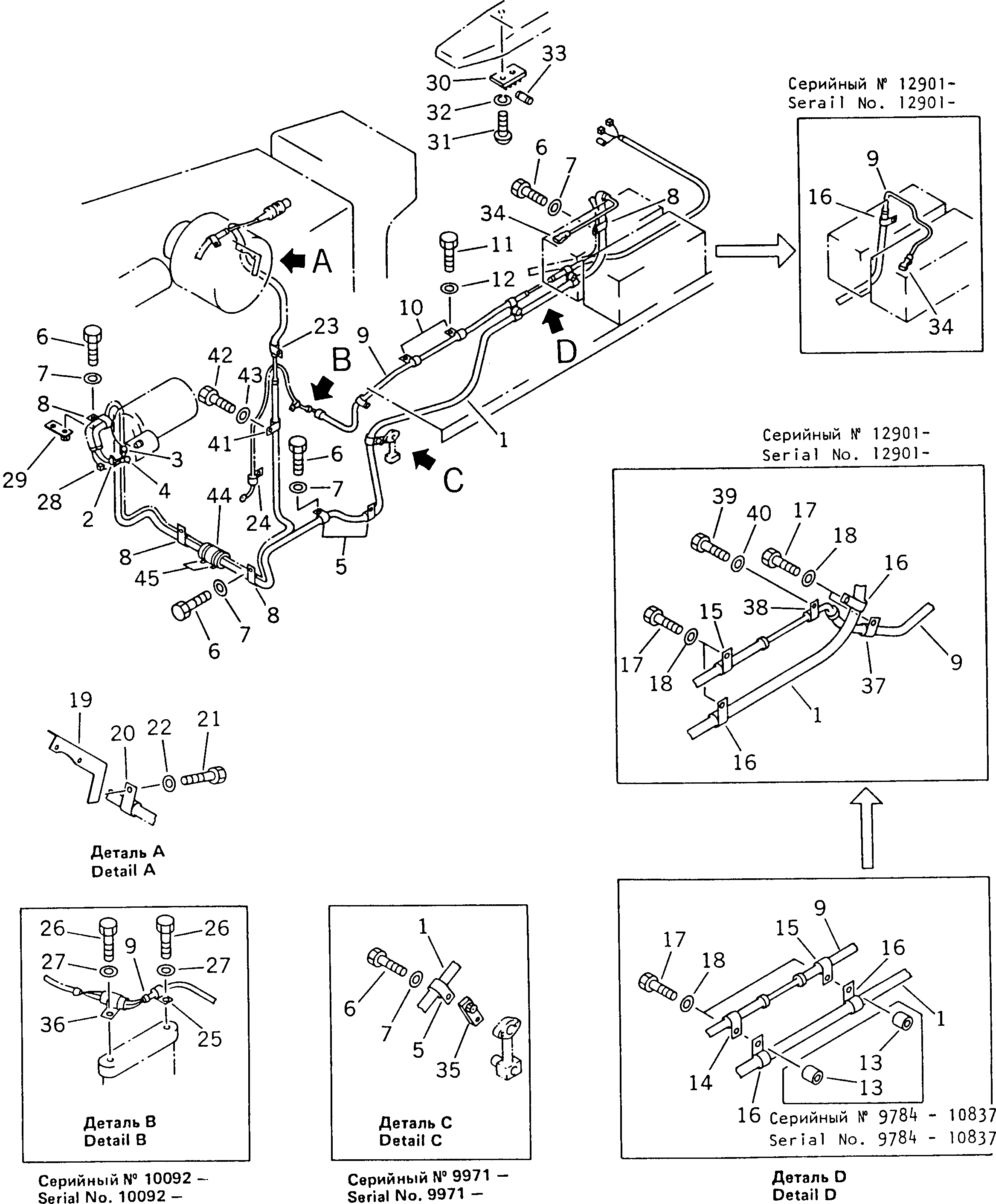

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 195-06-21343 | WIRE ASS'Y | 1 | SN: 9001- |
|||
| ? | 08034-00414 | BAND | 2 | SN: 9001- |
|||
| ? | 08038-16031 | CAP | 1 | SN: 3301- |
|||
| ? | 140-06-18260 | CAP | 1 | SN: 9001- |
|||
| ? | 08035-03010 | CLIP | 2 | SN: 9001- |
|||
| ? | 01010-81020 | BOLT | 6 | SN: 12901- |
|||
| ? | 01010-51020 | BOLT | 7 | SN: 9001-12900 |
|||
| ? | 01643-31032 | WASHER | 6 | SN: 12901- |
|||
| ? | 01643-31032 | WASHER | 7 | SN: 9001-12900 |
|||
| ? | 155-06-15180 | CLAMP | 2 | SN: 12901- |
|||
| ? | 155-06-15180 | CLAMP | 3 | SN: 3301-12900 |
|||
| ? | 195-06-22914 | WIRE ASS'Y | 1 | SN: 9001- |
|||
| ? | 08035-02510 | CLIP | 3 | SN: 9001- |
|||
| ? | 01010-81016 | BOLT | 3 | SN: 9001- |
|||
| ? | 01643-31032 | WASHER | 3 | SN: 9001- |
|||
| ? | 175-79-83760 | SPACER | 2 | SN: 9784-10837 |
|||
| ? | 08035-01510 | CLIP | 1 | SN: 9784-12900 |
|||
| ? | 08035-02510 | CLIP | 1 | SN: 9784- |
|||
| ? | 08035-03010 | CLIP | 3 | SN: 12901- |
|||
| ? | 08035-03010 | CLIP | 1 | SN: 9784-12900 |
|||
| ? | 01010-81020 | BOLT | 4 | SN: 12901- |
|||
| ? | 01010-51016 | BOLT | 2 | SN: 10838-12900 |
|||
| ? | 01010-51020 | BOLT | 2 | SN: 9784-10837 |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 12901- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 9784-12900 |
|||
| ? | 195-06-22570 | BRACKET | 1 | SN: 3301- |
|||
| ? | 08035-03010 | CLIP | 1 | SN: 3301- |
|||
| ? | 01010-80816 | BOLT | 1 | SN: 3301- |
|||
| ? | 01643-30823 | WASHER | 1 | SN: 3301- |
|||
| ? | 08035-03008 | CLIP | 1 | SN: 9001- |
|||
| ? | 08036-30814 | CLIP | 1 | SN: 9001- |
|||
| ? | 195-06-25940 | CLIP | 1 | SN: 9001- |
|||
| ? | 01016-51625 | BOLT | 2 | SN: 10092- |
|||
| ? | 01016-51625 | BOLT | 1 | SN: 9001-10091 |
|||
| ? | 01643-31645 | WASHER | 2 | SN: 9001-10091 |
|||
| ? | 01643-31645 | WASHER | 1 | SN: 10092- |
|||
| ? | 195-06-25290 | FUSE ASS'Y | 1 | SN: 9001- |
|||
| ? | 195-06-23430 | PLATE | 1 | SN: 9001- |
|||
| ? | 195-06-25310 | HOLDER | 1 | SN: 9001- |
|||
| ? | 01220-40310 | SCREW | 2 | SN: 9001- |
|||
| ? | 01601-20307 | WASHER | 2 | SN: 9001- |
|||
| ? | 198-06-12810 | FUSE,15A | 1 | SN: 9001- |
|||
| ? | 08038-32511 | CAP | 2 | SN: 9001- |
|||
| ? | 195-06-23430 | PLATE | 1 | SN: 9971- |
|||
| ? | 21T-06-14750 | CLIP | 1 | SN: 10092- |
|||
| ? | 08035-01510 | CLIP | 1 | SN: 12901- |
|||
| ? | 08036-81214 | CLIP | 1 | SN: 12901- |
|||
| ? | 01010-81020 | BOLT | 1 | SN: 12901- |
|||
| ? | 01643-31032 | WASHER | 1 | SN: 12901- |
|||
| ? | 08035-02512 | CLIP | 1 | SN: 12901- |
|||
| ? | 01010-81220 | BOLT | 1 | SN: 12901- |
|||
| ? | 01643-31232 | WASHER | 1 | SN: 12901- |
|||
| ? | 205-62-72240 | COVER | 1 | SN: 12901- |
|||
| ? | 08034-00536 | BAND | 2 | SN: 12901- |
