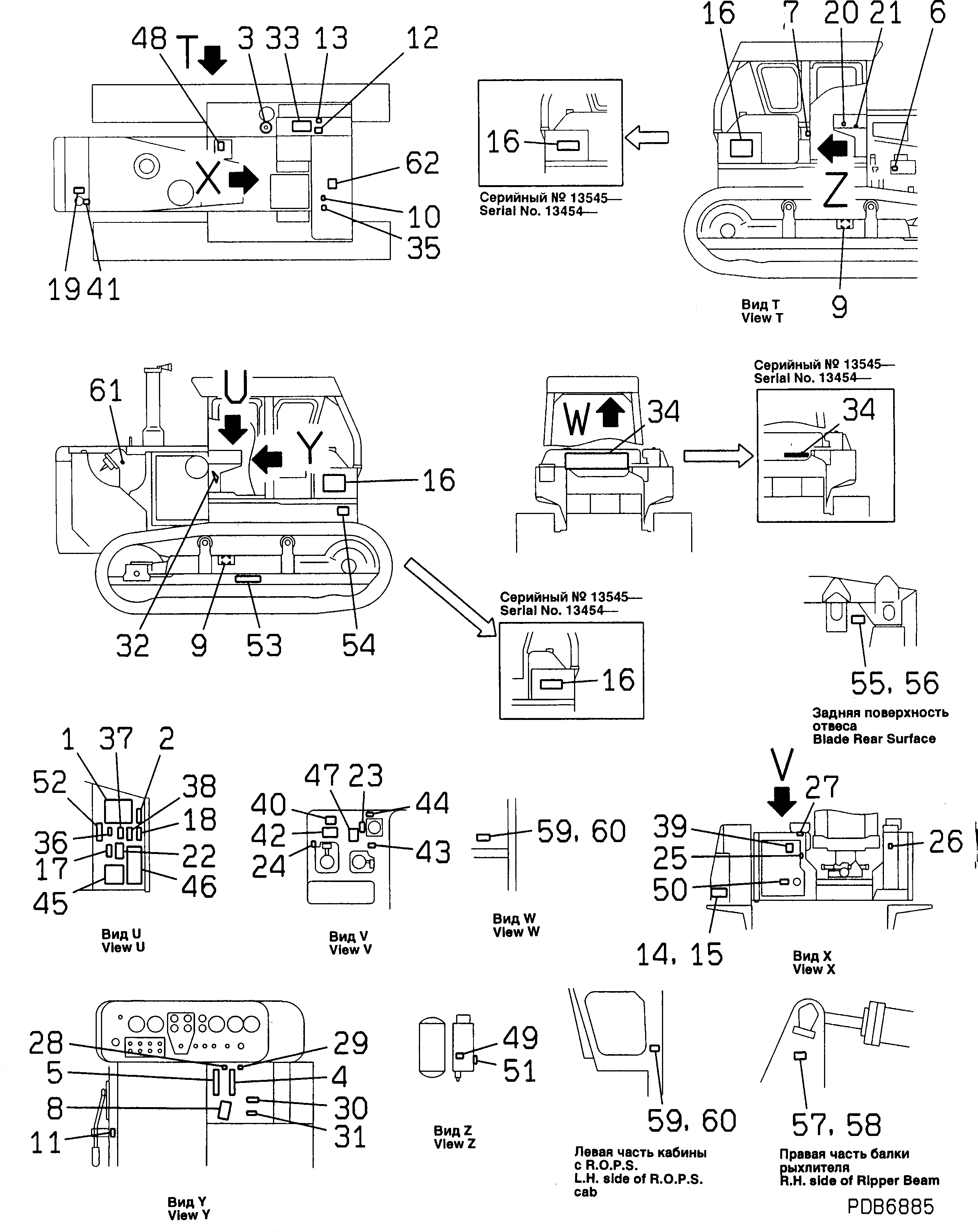

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6127-81-5882 | PLATE,STARTING ENGINE | 1 | SN: 10838- |
|||
| ? | 6127-81-5890 | PLATE | 1 | SN: 9001-10837 |
|||
| ? | 6127-81-5721 | PLATE,ENGINE HEATER | 1 | SN: 3633- |
|||
| ? | 6050-81-9610 | PLATE,FUEL | 1 | SN: 1632- |
|||
| ? | 6050-81-9640 | PLATE,PINION LEVER IDENTIFICATION | 1 | SN: 1632- |
|||
| ? | 6050-81-9650 | PLATE,S.E.CLUTCH | 1 | SN: 1632- |
|||
| ? | 6050-81-9670 | PLATE,SHUT OFF VALVE MANUAL | 1 | SN: 2529-10837 |
|||
| ? | 09634-40221 | PLATE¤ INSTRUCTION,BYPASS FILTER | 1 | SN: 9001- |
|||
| ? | 6050-81-9552 | PLATE,S.E. | 1 | SN: 10838- |
|||
| ? | 6050-81-9560 | PLATE,S.E. | 1 | SN: 9001-10837 |
|||
| ? | 09657-04001 | PLATE¤ SAFETY,TRACK SHOE | 2 | SN: 9001- |
|||
| ? | 09652-40200 | PLATE¤ CAUTION,FUEL TANK | 1 | SN: 9001- |
|||
| ? | 09682-40020 | PLATE¤ OPERATING,DECOMP LEVER | 1 | SN: 3301- |
|||
| ? | 09655-40120 | PLATE¤ INSTRUCTION,OIL FILTER | 1 | SN: 1632- |
|||
| ? | 09653-04001 | PLATE¤ SAFETY,HYDRAULIC TANK | 1 | SN: 9001- |
|||
| ? | 09602-41643 | PLATE¤ NAME,NAME | 1 | SN: 2529- |
|||
| ? | 01220-00408 | SCREW | 4 | SN: 2529- |
|||
| ? | 195-98-15270 | PLATE¤ MARK,MARK | 2 | SN: 13545- |
|||
| ? | 09691-43355 | PLATE¤ MARK,MARK | 2 | SN: 1632-13544 |
|||
| ? | 09649-90301 | PLATE¤ INSTRUCTION,ENGINE SHUTDOWN | 1 | SN: 3633- |
|||
| ? | 09654-04000 | PLATE¤ SAFETY,WARNING | 1 | SN: 3633- |
|||
| ? | 09650-42101 | PLATE¤ INSTRUCTION,RADIATOR | 1 | SN: 3633- |
|||
| ? | 176-98-51160 | PLATE,IGNITION SWITCH | 1 | SN: 2529- |
|||
| ? | 175-900-1570 | PLATE,CHECK LAMP | 1 | SN: 1632- |
|||
| ? | 175-900-2950 | PLATE¤ CAUTION,ON SLOPE | 1 | SN: 1632- |
|||
| ? | 195-98-13690 | PLATE¤ OPERATING,PIN PULLER | 1 | SN: 3634- |
|||
| ? | 09685-00003 | PLATE¤ OPERATING | 1 | SN: 3633- |
|||
| ? | 09685-00001 | PLATE¤ OPERATING | 1 | SN: 3633- |
|||
| ? | 09685-00002 | PLATE¤ OPERATING | 1 | SN: 3633- |
|||
| ? | 09679-02002 | PLATE¤ OPERATING,HORN SWITCH | 1 | SN: 3301- |
|||
| ? | 09680-40040 | PLATE¤ OPERATING,S.E.CLUTCH LEVER | 1 | SN: 3633- |
|||
| ? | 09681-40040 | PLATE¤ OPERATING | 1 | SN: 3633- |
|||
| ? | 195-98-13150 | PLATE,THROTTLE | 1 | SN: 2529- |
|||
| ? | 195-98-13160 | PLATE,CHOKE | 1 | SN: 2529- |
|||
| ? | 195-98-13141 | PLATE | 1 | SN: 3301- |
|||
| ? | 195-98-11288 | CHART,RADIATOR SHUTTER | 1 | SN: 9001- |
|||
| ? | 195-98-14790 | CHART,(FOR INSIDE FRAME) | 1 | SN: 9001- |
|||
| ? | 09690-B0500 | PLATE¤ MARK,MARK | 1 | SN: 13545- |
|||
| ? | 09692-44355 | PLATE¤ MARK,MARK | 1 | SN: 2529-13544 |
|||
| ? | 09656-40080 | PLATE¤ INSTRUCTION,STRAINER CLEANING | 1 | SN: 3301- |
|||
| ? | 09651-04000 | PLATE¤ SAFETY,BEFORE OPERATION | 1 | SN: 3633- |
|||
| ? | 09667-04000 | PLATE¤ SAFETY | 1 | SN: 3633- |
|||
| ? | 09666-04000 | PLATE¤ SAFETY,FIRE PREVENTION | 1 | SN: 3633- |
|||
| ? | 195-98-13180 | PLATE¤ CAUTION,SEAT BELT | 1 | SN: 3633- |
|||
| ? | 09173-04000 | PLATE¤ SAFETY | 1 | SN: 3633- |
|||
| ? | 09668-04000 | PLATE¤ SAFETY | 1 | SN: 3633- |
|||
| ? | 09670-00004 | PLATE¤ OPERATING,(FOR TILT DOZER) | 1 | SN: 9001- |
|||
| ? | 09670-00001 | PLATE¤ OPERATING,(FOR INSIDE FRAME) | 1 | SN: 9001- |
|||
| ? | 09685-00001 | PLATE¤ OPERATING | 1 | SN: 9001- |
|||
| ? | 09685-00002 | PLATE¤ OPERATING | 1 | SN: 9001- |
|||
| ? | 6128-82-4720 | PLATE¤ CAUTION,A.P.S. | 1 | SN: 10838- |
|||
| ? | 6128-82-4160 | PLATE¤ CAUTION,A.P.S. | 1 | SN: 9001-10837 |
|||
| ? | 6128-82-4621 | PLATE¤ CAUTION,A.P.S. | 1 | SN: 10838- |
|||
| ? | 6128-82-4620 | PLATE¤ CAUTION,A.P.S. | 1 | SN: 10447-10837 |
|||
| ? | 6128-81-4161 | PLATE¤ OPERATING,A.P.S. | 1 | SN: 9001-10446 |
|||
| ? | 09671-00002 | PLATE¤ OPERATING | 1 | SN: 9001- |
|||
| ? | 195-98-13720 | PLATE,S.E.HIGH-LOW LEVER | 1 | SN: 9001- |
|||
| ? | 195-98-14460 | PLATE | 1 | SN: 9971-10446 |
|||
| ? | 175-98-31440 | PLATE¤ CAUTION,S.E.FUEL COCK | 1 | SN: 10447- |
|||
| ? | 175-98-31450 | PLATE¤ CAUTION,FILTER ELEMENT | 1 | SN: 10838- |
|||
| ? | 6128-82-4880 | PLATE¤ CAUTION,STARTING ENGINE | 1 | SN: 10838- |
|||
| ? | 09960-61012 | PLATE¤ MARK,BALANCE POINT | 2 | SN: 12901- |
|||
| ? | 195-98-23370 | PLATE¤ OPERATING,SLING POINT | 1 | SN: 12901- |
|||
| ? | 09601-40835 | PLATE¤ NAME,NAME | 1 | SN: 9001- |
|||
| ? | 04418-13060 | SCREW | 4 | SN: 9001- |
|||
| ? | 09601-40835 | PLATE¤ NAME,NAME | 1 | SN: 9001- |
|||
| ? | 04418-13060 | SCREW | 4 | SN: 9001- |
|||
| ? | 09620-40200 | PLATE¤ NAME,R.O.P.S. | 2 | SN: 9001- |
|||
| ? | 04418-13060 | SCREW | 8 | SN: 9001- |
|||
| ? | 195-98-14750 | PLATE¤ CAUTION,HEATER | 1 | SN: 9001- |
|||
| ? | 195-98-16210 | PLATE | 1 | SN: 13818- |
