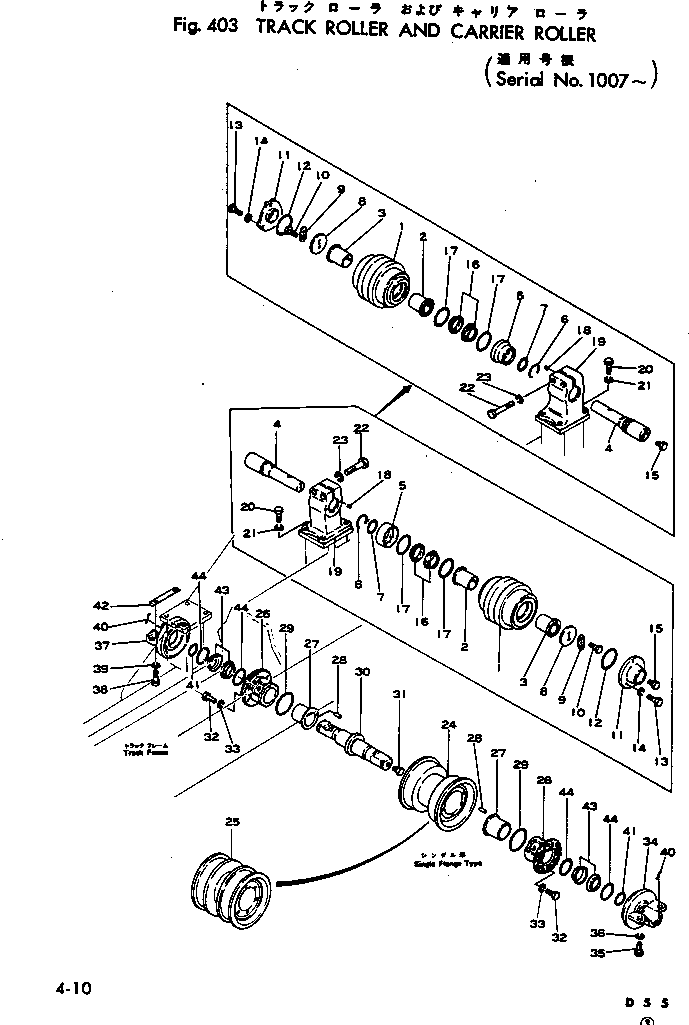

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 131-30-00313 | CARRIER ROLLER ASS'Y | 4 | SN: 3221- |
|||
| ? | □131-30-00312 | CARRIER ROLLER ASS'Y | 4 | SN: 2996-3220 |
|||
| ? | □131-30-00311 | CARRIER ROLLER ASS'Y | 4 | SN: 1013-2995 |
|||
| ? | 131-30-00310 | CARRIER ROLLER ASS'Y | 2 | SN: 1007-1012 |
|||
| ? | 141-30-00111 | • ROLLER ASS'Y | 1 | SN: 2996- |
|||
| ? | □141-30-00110 | • ROLLER ASS'Y | 1 | SN: 1013-2995 |
|||
| ? | □130-30-00051 | • ROLLER ASS'Y | 1 | SN: 1007-1012 |
|||
| ? | 141-30-15220 | • • ROLLER | 1 | SN: 2996- |
|||
| ? | □141-30-15190 | • • ROLLER | 1 | SN: 1013-2995 |
|||
| ? | 130-30-15115 | • • ROLLER | 1 | SN: 1007-1012 |
|||
| ? | 130-30-15162 | • • BUSHING | 1 | SN: 1007- |
|||
| ? | 140-30-15140 | • • BUSHING | 1 | SN: 1007- |
|||
| ? | 135-30-15110 | • SHAFT | 1 | SN: 1013- |
|||
| ? | 140-813-5110 | • SHAFT | 1 | SN: 1007-1012 |
|||
| ? | 140-813-5120 | • COLLAR | 1 | SN: 1007- |
|||
| ? | 141-30-15140 | • RING | 1 | SN: 1007- |
|||
| ? | 07000-03048 | • O-RING | 1 | SN: 1007- |
|||
| ? | 130-30-15150 | • PLATE | 1 | SN: 1007- |
|||
| ? | 130-30-15140 | • LOCK | 1 | SN: 1007- |
|||
| ? | 01010-31020 | • BOLT | 2 | SN: 1007- |
|||
| ? | 140-813-5160 | • COVER | 1 | SN: 1013- |
|||
| ? | 141-30-15151 | • COVER | 1 | SN: 1007-1012 |
|||
| ? | 07000-03082 | • O-RING | 1 | SN: 1007- |
|||
| ? | 01010-31025 | • BOLT | 3 | SN: 1007- |
|||
| ? | 01602-01030 | • WASHER | 3 | SN: 1007- |
|||
| ? | 07052-11624 | • PLUG | 1 | SN: 3221- |
|||
| ? | 07052-01624 | • PLUG | 1 | SN: 1007-3220 |
|||
| ? | 140-30-00040 | • FLOATING SEAL ASS'Y | 1 | SN: 1007- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1007- |
|||
| ? | □140-30-16220 | • • O-RING | 2 | SN: 1007- |
|||
| ? | 130-27-12430 | PIN,DOWEL | 1 | SN: 1007- |
|||
| ? | 135-30-15120 | SUPPORT | 1 | SN: 1013- |
|||
| ? | 140-813-5142 | SUPPORT | 1 | SN: 1007-1012 |
|||
| ? | 01010-31645 | BOLT | 4 | SN: 3221- |
|||
| ? | 01040-31645 | BOLT | 4 | SN: 1007-3220 |
|||
| ? | 01602-01648 | WASHER | 4 | SN: 1007- |
|||
| ? | 01010-31885 | BOLT | 2 | SN: 3221- |
|||
| ? | 01040-31885 | BOLT | 2 | SN: 1007-3220 |
|||
| ? | 01602-01854 | WASHER | 2 | SN: 1007- |
|||
| ? | 140-30-00053 | TRACK ROLLER ASS'Y,SINGLE FLANGE | 6 | SN: 3221- |
|||
| ? | □140-30-00052 | TRACK ROLLER ASS'Y,SINGLE FLANGE | 6 | SN: 1007-3220 |
|||
| ? | 140-30-00063 | TRACK ROLLER ASS'Y,DOUBLE FLANGE | 4 | SN: 3221- |
|||
| ? | □140-30-00062 | TRACK ROLLER ASS'Y,DOUBLE FLANGE | 4 | SN: 1007-3220 |
|||
| ? | 140-30-00072 | • TRACK ROLLER ASS'Y,SINGLE FLANGE | 1 | SN: 3221- |
|||
| ? | 140-30-00071 | • TRACK ROLLER ASS'Y,SINGLE FLANGE | 1 | SN: 1007-3220 |
|||
| ? | 140-30-00082 | • TRACK ROLLER ASS'Y,DOUBLE FLANGE | 1 | SN: 3221- |
|||
| ? | 140-30-00081 | • TRACK ROLLER ASS'Y,DOUBLE FLANGE | 1 | SN: 1007-3220 |
|||
| ? | 140-30-16240 | • • ROLLER,SINGLE FLANGE | 1 | SN: 2002- |
|||
| ? | □140-30-16110 | • • ROLLER,SINGLE FLANGE | 1 | SN: 1007-1999 |
|||
| ? | 140-30-16260 | • • ROLLER,DOUBLE FLANGE | 1 | SN: 2002- |
|||
| ? | □140-30-16120 | • • ROLLER,DOUBLE FLANGE | 1 | SN: 1007-1999 |
|||
| ? | 140-30-00033 | • • BUSHING ASS'Y | 2 | SN: 2002- |
|||
| ? | 140-30-00032 | • • BUSHING ASS'Y | 2 | SN: 1007-1999 |
|||
| ? | 140-30-16181 | • • • BUSHING | 1 | SN: 1007- |
|||
| ? | 131-30-46130 | • • • BUSHING | 1 | SN: 4004- |
|||
| ? | 140-30-16290 | • • • BUSHING | 1 | SN: 3991-4003 |
|||
| ? | 131-30-46130 | • • • BUSHING | 1 | SN: 3983-3990 |
|||
| ? | 140-30-16290 | • • • BUSHING | 1 | SN: 2002-3982 |
|||
| ? | 140-30-16191 | • • • BUSHING | 1 | SN: 1007-1999 |
|||
| ? | 141-30-36310 | • • • PIN | 2 | SN: 4004- |
|||
| ? | 04025-00512 | • • • PIN | 2 | SN: 3991-4003 |
|||
| ? | 141-30-36310 | • • • PIN | 2 | SN: 3983-3990 |
|||
| ? | 04025-00512 | • • • PIN | 2 | SN: 1007-3982 |
|||
| ? | 07000-03092 | • • O-RING | 2 | SN: 1007- |
|||
| ? | 141-30-16111 | • • SHAFT | 1 | SN: 1007- |
|||
| ? | 07052-11624 | • • PLUG | 1 | SN: 3221- |
|||
| ? | 07052-01624 | • • PLUG | 1 | SN: 1007-3220 |
|||
| ? | 01010-31025 | • • BOLT | 12 | SN: 1007- |
|||
| ? | 01602-01030 | • • WASHER | 12 | SN: 1007- |
|||
| ? | 140-30-16162 | • COLLAR | 1 | SN: 1007- |
|||
| ? | 01010-31655 | • BOLT | 2 | SN: 3221- |
|||
| ? | 01040-31655 | • BOLT | 2 | SN: 1007-3220 |
|||
| ? | 01602-01648 | • WASHER | 2 | SN: 1007- |
|||
| ? | 140-30-16170 | • COLLAR | 1 | SN: 1007- |
|||
| ? | 01010-31655 | • BOLT | 2 | SN: 3221- |
|||
| ? | 01040-31655 | • BOLT | 2 | SN: 1007-3220 |
|||
| ? | 01602-01648 | • WASHER | 2 | SN: 1007- |
|||
| ? | 130-09-16740 | • RING | 2 | SN: 1007- |
|||
| ? | 07000-03045 | • O-RING | 2 | SN: 1007- |
|||
| ? | 130-30-16120 | • LOCK | 1 | SN: 1007- |
|||
| ? | 140-30-00040 | • FLOATING SEAL ASS'Y | 2 | SN: 1007- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1007- |
|||
| ? | 140-30-16220 | • • O-RING | 2 | SN: 1007- |
