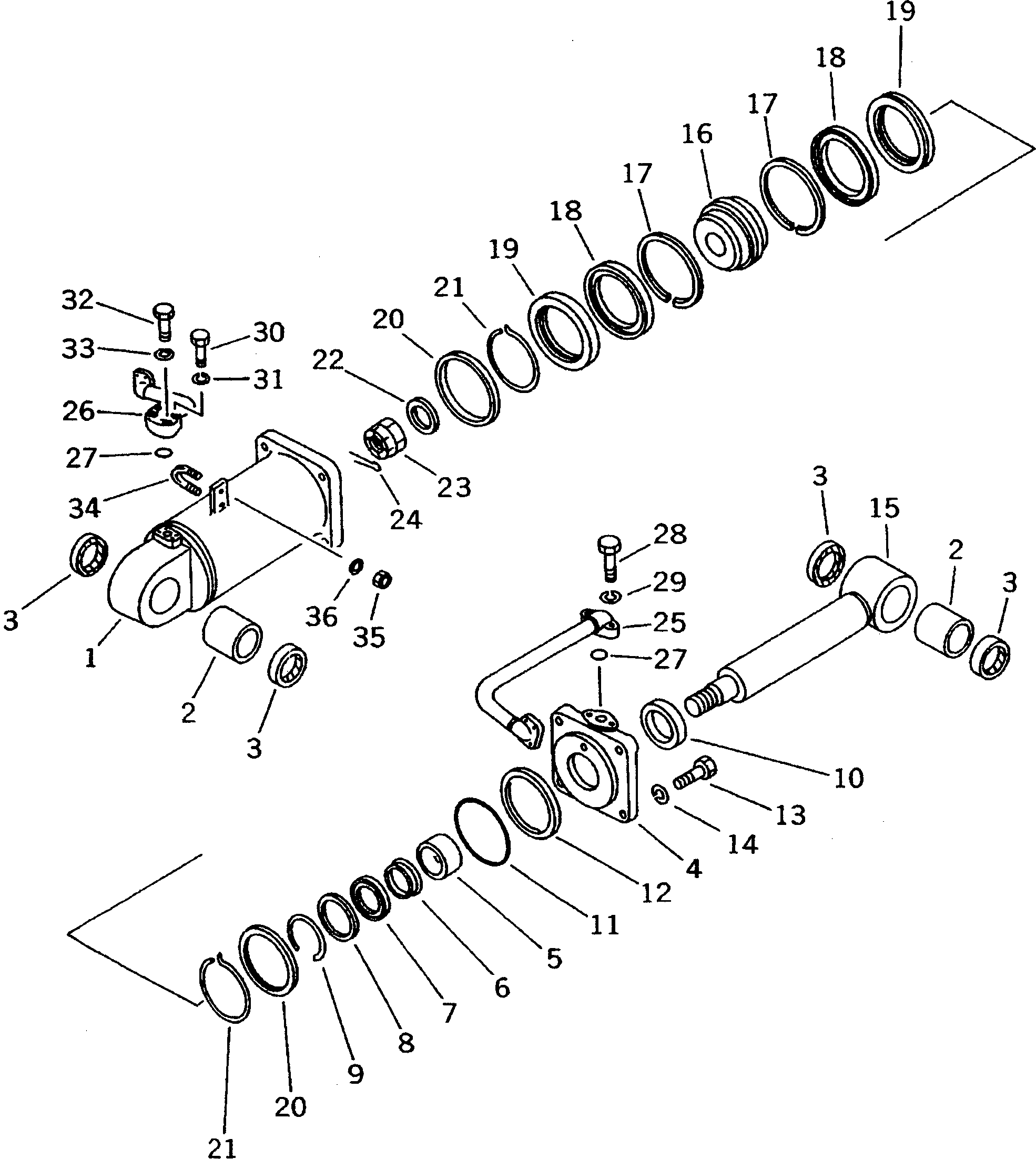

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 131-78-00112 | CYLINDER ASS'Y | 1 | SN: 20001- |
|||
| ? | 131-78-37131 | • CYLINDER,HYDRAULIC | 1 | SN: 20001- |
|||
| ? | 131-78-37150 | • BUSHING | 2 | SN: 20001- |
|||
| ? | 131-78-37160 | • SEAL,DUST | 4 | SN: 20001- |
|||
| ? | 131-78-37111 | • HEAD,CYLINDER | 1 | SN: 20001- |
|||
| ? | 141-60-15281 | • BUSHING | 1 | SN: 20001- |
|||
| ? | 141-60-15330 | • HEEL,NYLON | 1 | SN: 20001- |
|||
| ? | 141-60-15320 | • U-RING | 1 | SN: 20001- |
|||
| ? | 141-60-15311 | • HEADER,GASKET | 1 | SN: 20001- |
|||
| ? | 141-60-15291 | • RING,SNAP | 1 | SN: 20001- |
|||
| ? | 130-09-11721 | • RING,WIPER | 1 | SN: 20001- |
|||
| ? | 07000-15150 | • O-RING | 1 | SN: 20001- |
|||
| ? | 07001-05150 | • RING,BACK-UP | 1 | SN: 20001- |
|||
| ? | 01010-82765 | • BOLT | 4 | SN: 20001- |
|||
| ? | 01602-22783 | • WASHER,SPRING | 4 | SN: 20001- |
|||
| ? | 131-78-37121 | • ROD,PISTON | 1 | SN: 20001- |
|||
| ? | 141-60-15231 | • PISTON | 1 | SN: 20001- |
|||
| ? | 141-60-15241 | • RING,PISTON | 2 | SN: 20001- |
|||
| ? | 141-60-15251 | • HEEL,NYLON | 2 | SN: 20001- |
|||
| ? | 141-60-15261 | • U-RING | 1 | SN: 20001- |
|||
| ? | 141-60-15211 | • HOLDER,U-RING | 2 | SN: 20001- |
|||
| ? | 141-60-15440 | • STOPPER | 2 | SN: 20001- |
|||
| ? | 130-78-61140 | • SHIM | 1 | SN: 20001- |
|||
| ? | 01590-14850 | • NUT | 1 | SN: 20001- |
|||
| ? | 04050-18085 | • PIN,COTTER | 1 | SN: 20001- |
|||
| ? | 131-78-37242 | • TUBE | 1 | SN: 20001- |
|||
| ? | 131-78-37252 | • TUBE | 1 | SN: 20001- |
|||
| ? | 07000-23030 | • O-RING | 2 | SN: 20001- |
|||
| ? | 01010-51445 | • BOLT | 2 | SN: 20001- |
|||
| ? | 01602-21442 | • WASHER,SPRING | 2 | SN: 20001- |
|||
| ? | 01010-50835 | • BOLT | 2 | SN: 20001- |
|||
| ? | 01602-20825 | • WASHER,SPRING | 2 | SN: 20001- |
|||
| ? | 01010-50850 | • BOLT | 2 | SN: 20001- |
|||
| ? | 01602-20825 | • WASHER,SPRING | 2 | SN: 20001- |
|||
| ? | 07283-22738 | • CLIP | 1 | SN: 20001- |
|||
| ? | 01599-01011 | • NUT | 2 | SN: 20001- |
|||
| ? | 01643-21032 | • WASHER | 2 | SN: 20001- |
