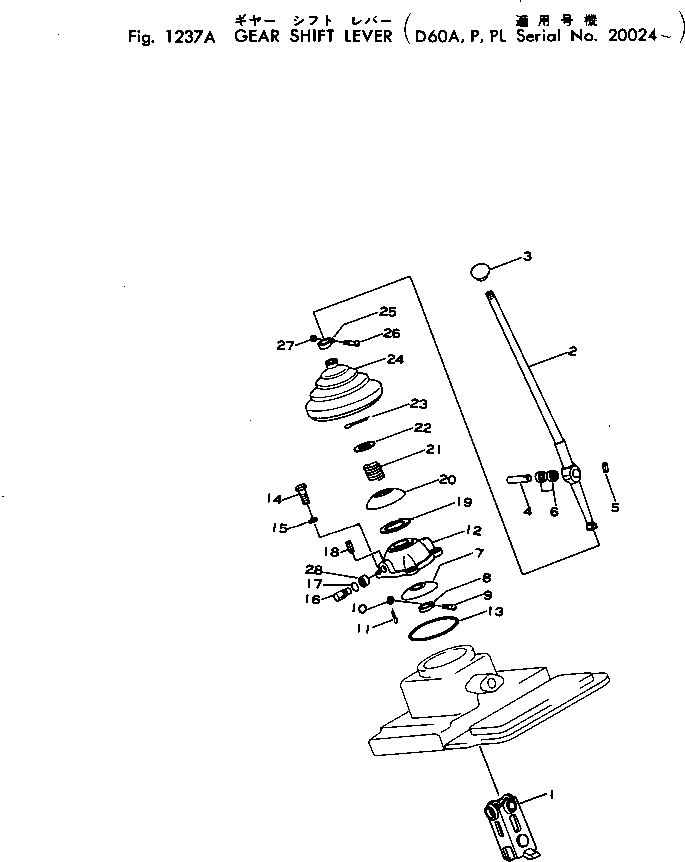

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (144-14-00018) | TRANSMISSION ASS'Y | 1 | SN: 30393- |
|||
| ? | (144-14-00017) | TRANSMISSION ASS'Y | 1 | SN: 28013-30392 |
|||
| ? | (144-14-00016) | TRANSMISSION ASS'Y | 1 | SN: 24731-28012 |
|||
| ? | □144-14-00015 | TRANSMISSION ASS'Y | 1 | SN: 23016-24730 |
|||
| ? | □144-14-00014 | TRANSMISSION ASS'Y | 1 | SN: 22388-23015 |
|||
| ? | □144-14-00013 | TRANSMISSION ASS'Y | 1 | SN: 20054-22387 |
|||
| ? | □144-14-00012 | TRANSMISSION ASS'Y | 1 | SN: 20032-20053 |
|||
| ? | □144-14-00011 | TRANSMISSION ASS'Y | 1 | SN: 20024-20031 |
|||
| ? | 141-14-32612 | • GATE | 1 | SN: 20024- |
|||
| ? | 144-14-13113 | • LEVER | 1 | SN: 20024- |
|||
| ? | 09304-01250 | • KNOB | 1 | SN: 20006- |
|||
| ? | 131-14-42630 | • SHAFT | 1 | SN: 20006- |
|||
| ? | 04025-00412 | • PIN | 1 | SN: 20006- |
|||
| ? | 06120-01612 | • BEARING | 2 | SN: 22388- |
|||
| ? | 06120-01612 | • BEARING | 1 | SN: 20006-22387 |
|||
| ? | 141-14-32770 | • COVER | 1 | SN: 20024- |
|||
| ? | 170-14-12630 | • CLIP | 1 | SN: 20006- |
|||
| ? | 150-15-21150 | • SCREW | 1 | SN: .- |
|||
| ? | □170-14-12561 | • SCREW | 1 | SN: 22388-. |
|||
| ? | 170-14-12560 | • SCREW | 1 | SN: 20006-22387 |
|||
| ? | 150-15-21140 | • NUT | 1 | SN: .- |
|||
| ? | □170-14-12571 | • NUT | 1 | SN: 22388-. |
|||
| ? | 170-14-12570 | • NUT | 1 | SN: 20006-22387 |
|||
| ? | 04050-01012 | • PIN | 1 | SN: 20006- |
|||
| ? | 141-14-32711 | • ADAPTER | 1 | SN: 20024- |
|||
| ? | 07000-02100 | • O-RING | 1 | SN: 20024- |
|||
| ? | 01010-31030 | • BOLT | 4 | SN: 20006- |
|||
| ? | 01602-01030 | • WASHER | 4 | SN: 20006- |
|||
| ? | 141-14-32721 | • SHAFT | 2 | SN: 20024- |
|||
| ? | 07000-02015 | • O-RING | 2 | SN: 20006- |
|||
| ? | 04025-00432 | • PIN | 2 | SN: 20006- |
|||
| ? | 141-14-32760 | • SEAL | 1 | SN: 20024- |
|||
| ? | 141-14-32731 | • COVER | 1 | SN: 20024- |
|||
| ? | 141-14-32751 | • SPRING | 1 | SN: 20024- |
|||
| ? | 141-14-32780 | • WASHER | 1 | SN: 20024- |
|||
| ? | 04050-05040 | • PIN | 1 | SN: 20006- |
|||
| ? | 141-14-32630 | • BOOT | 1 | SN: 20024- |
|||
| ? | 150-14-15260 | • CLAMP | 1 | SN: 20006- |
|||
| ? | 01210-40416 | • SCREW | 1 | SN: 22388- |
|||
| ? | 01210-20416 | • SCREW | 1 | SN: 20006-22387 |
|||
| ? | 01580-10403 | • NUT | 1 | SN: 22388- |
|||
| ? | 01500-30404 | • NUT | 1 | SN: 20006-22387 |
|||
| ? | 06120-01612 | • BEARING | 2 | SN: 22388- |
