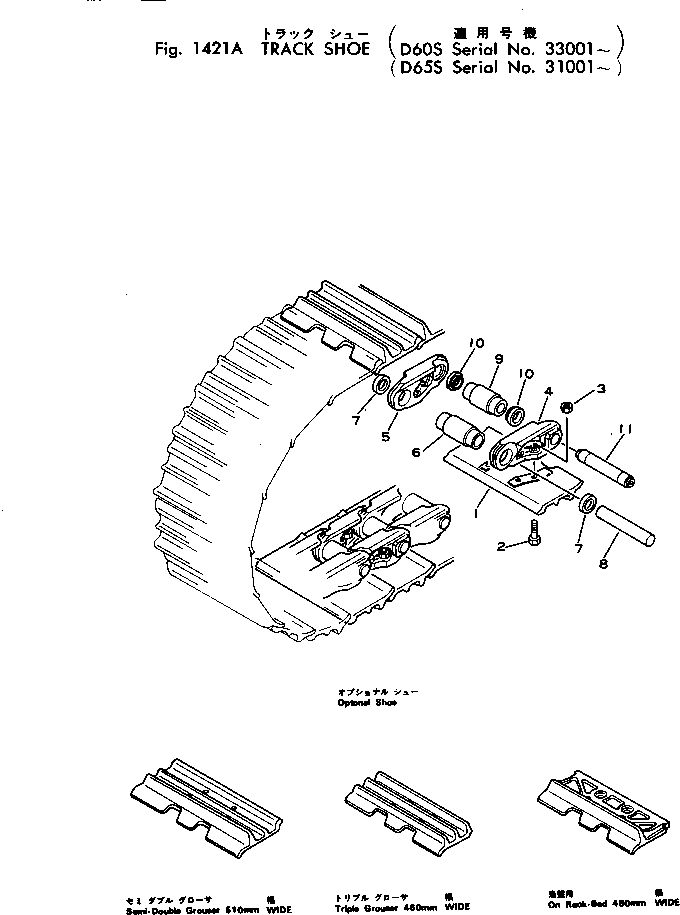

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SEMI-DOUBLE 460MM | ||||||
| ? | 141-32-03008 | TRACK SHOE ASS'Y | 1 | SN: 33211- |
|||
| ? | □141-32-03007 | TRACK SHOE ASS'Y | 1 | SN: 33001-33210 |
|||
| ? | 141-32-11312 | • SHOE,TRACK | 78 | SN: 33001- |
|||
| ? | 207-32-11310 | • BOLT,SHOE (KIT) | 312 | SN: 33211- |
|||
| ? | □144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-33210 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388- |
|||
| ? | 141-32-00045 | • TRACK LINK ASS'Y | 1 | SN: 33001- |
|||
| ? | 144-32-11123 | • • LINK,TRACK ? L.H. | 78 | SN: 33001- |
|||
| ? | 144-32-11133 | • • LINK,TRACK ? R.H. | 78 | SN: 33001- |
|||
| ? | 144-32-11144 | • • BUSHING,REGULAR | 74 | SN: 33001- |
|||
| ? | 144-32-11240 | • • SEAL,DUST ? REGULAR ? W-TYPE | 148 | SN: 25775- |
|||
| ? | 144-32-11151 | • • PIN ? REGULAR | 74 | SN: 33001- |
|||
| ? | 144-32-11172 | • • BUSHING,MASTER | 4 | SN: 33001- |
|||
| ? | 150-32-11260 | • • SEAL,DUST ? MASTER ? W-TYPE | 8 | SN: 20006- |
|||
| ? | 144-32-11192 | • • PIN,MASTER | 4 | SN: 33001- |
|||
| ? | SEMI-DOUBLE 510MM | ||||||
| ? | 141-32-02008 | TRACK SHOE ASS'Y | 1 | SN: 33211- |
|||
| ? | □141-32-02007 | TRACK SHOE ASS'Y | 1 | SN: 33001-33210 |
|||
| ? | 141-32-11341 | • SHOE,TRACK | 78 | SN: 33001- |
|||
| ? | 207-32-11310 | • BOLT,SHOE (KIT) | 312 | SN: 33211- |
|||
| ? | □144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-33210 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388- |
|||
| ? | 141-32-00045 | • TRACK LINK ASS'Y | 1 | SN: 33001- |
|||
| ? | TRIPLE 460MM | ||||||
| ? | 141-32-03107 | TRACK SHOE ASS'Y | 1 | SN: 33211- |
|||
| ? | □141-32-03106 | TRACK SHOE ASS'Y | 1 | SN: 33001-33210 |
|||
| ? | 141-32-11291 | • SHOE,TRACK | 78 | SN: 20006- |
|||
| ? | 207-32-11310 | • BOLT,SHOE (KIT) | 312 | SN: 33211- |
|||
| ? | □144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-33210 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388- |
|||
| ? | 141-32-00045 | • TRACK LINK ASS'Y | 1 | SN: 33001- |
|||
| ? | TRIPLE 510MM | ||||||
| ? | 141-32-03602 | TRACK SHOE ASS'Y | 1 | SN: 33211- |
|||
| ? | □141-32-03601 | TRACK SHOE ASS'Y | 1 | SN: 33001-33210 |
|||
| ? | 141-32-11350 | • SHOE,TRACK | 78 | SN: 33001- |
|||
| ? | 207-32-11310 | • BOLT,SHOE (KIT) | 312 | SN: 33211- |
|||
| ? | □144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-33210 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388- |
|||
| ? | 141-32-00045 | • TRACK LINK ASS'Y | 1 | SN: 33001- |
|||
| ? | ON-ROCKBED 460MM | ||||||
| ? | 141-32-03406 | TRACK SHOE ASS'Y | 1 | SN: 33211- |
|||
| ? | □141-32-03405 | TRACK SHOE ASS'Y | 1 | SN: 33001-33210 |
|||
| ? | 141-32-11320 | • SHOE,TRACK | 78 | SN: 20006- |
|||
| ? | 207-32-11310 | • BOLT,SHOE (KIT) | 312 | SN: 33211- |
|||
| ? | □144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-33210 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388- |
|||
| ? | 141-32-00045 | • TRACK LINK ASS'Y | 1 | SN: 33001- |
|||
| ? | SERVICE KIT | ||||||
| ? | 207-32-05000 | SHOE BOLT AND NUT K. | 1 | SN: 33211- |
|||
| ? | □144-32-05001 | SHOE BOLT AND NUT K. | 1 | SN: 22388-33210 |
|||
| ? | 207-32-11310 | • BOLT,SHOE | 30 | SN: 33211- |
|||
| ? | □144-32-11211 | • BOLT ? SHOE | 30 | SN: 22388-33210 |
|||
| ? | 154-32-21330 | • NUT,SHOE | 30 | SN: 22388- |
|||
| ? | OVERSIZE PARTS | ||||||
| ? | 0.10MM OVERSIZE | ||||||
| ? | 144-98-09114 | BUSHING,REGULAR | A/R | SN: 33001- |
|||
| ? | 144-98-09011 | PIN,REGULAR | A/R | SN: 33001- |
|||
| ? | 144-98-09144 | BUSHING,MASTER | A/R | SN: 33001- |
|||
| ? | 144-98-09041 | PIN,MASTER | A/R | SN: 33001- |
|||
| ? | 0.18MM OVERSIZE | ||||||
| ? | 144-98-09134 | BUSHING,REGULAR | A/R | SN: 33001- |
|||
| ? | 144-98-09031 | PIN,REGULAR | A/R | SN: 33001- |
|||
| ? | 144-98-09164 | BUSHING,MASTER | A/R | SN: 33001- |
|||
| ? | 144-98-09061 | PIN,MASTER | A/R | SN: 33001- |
