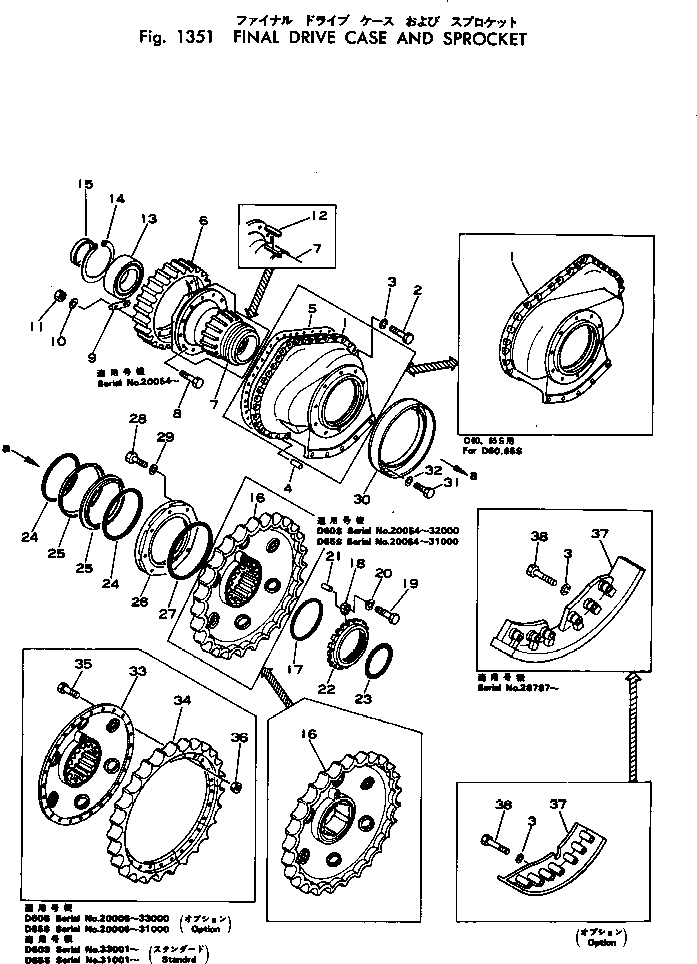

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 141-27-31114 | CASE,L.H. | 1 | SN: 28771- |
|||
| ? | 141-27-31113 | CASE,L.H. | 1 | SN: 20006-28770 |
|||
| ? | 141-27-31124 | CASE,R.H. | 1 | SN: 28771- |
|||
| ? | 141-27-31123 | CASE,R.H. | 1 | SN: 20006-28770 |
|||
| ? | 01010-31440 | BOLT | 66 | SN: 22388- |
|||
| ? | □01040-31440 | BOLT | 66 | SN: 20006-23387 |
|||
| ? | 01602-01442 | WASHER | 66 | SN: 20006- |
|||
| ? | 04020-01638 | PIN | 6 | SN: 20006- |
|||
| ? | 141-27-31240 | GASKET | 2 | SN: 22388- |
|||
| ? | □145-27-31142 | GASKET | 2 | SN: 20006-22387 |
|||
| ? | 145-27-41510 | GEAR ? 42 TEETH | 2 | SN: 30549- |
|||
| ? | □145-27-31451 | GEAR | 2 | SN: 30144-30548 |
|||
| ? | □141-27-31212 | GEAR | 2 | SN: 27181-30143 |
|||
| ? | ▩141-27-31211 | GEAR | 2 | SN: 20006-27180 |
|||
| ? | (141-27-41510{141-27-31224 ?} | ||||||
| ? | 01084-02060 (12){141-27-31270(6) ?} | ||||||
| ? | 141-27-31280 (12){141-27-31252(12))} | ||||||
| ? | 141-27-31224 | HUB | 2 | SN: 27181- |
|||
| ? | ▩141-27-31223 | HUB | 2 | SN: 20054-27180 |
|||
| ? | (141-27-31224{141-27-41510 ?} | ||||||
| ? | 01084-02060(12){141-27-31270(6) ?} | ||||||
| ? | 141-27-31280(12){141-27-31252(12))} | ||||||
| ? | 141-27-31221 | HUB | 2 | SN: 20006-20053 |
|||
| ? | 01084-02060 | BOLT | 24 | SN: 27181- |
|||
| ? | 141-27-31260 | BOLT | 24 | SN: 20006-27180 |
|||
| ? | 141-27-31270 | LOCK | 12 | SN: 27181- |
|||
| ? | 141-27-12230 | LOCK | 12 | SN: 20006-27180 |
|||
| ? | 141-27-31280 | WASHER | 24 | SN: 27181- |
|||
| ? | 141-27-31252 | NUT | 24 | SN: 27181- |
|||
| ? | 141-27-31251 | NUT | 24 | SN: 20006-27180 |
|||
| ? | (☒01500-31816) | NUT | 24 | SN: (20006-22387) |
|||
| ? | 170-27-12150 | KEY | 12 | SN: 20006-20053 |
|||
| ? | 06043-02228 | BEARING | 2 | SN: 28771- |
|||
| ? | □140-09-13140 | BEARING | 2 | SN: 20006-28770 |
|||
| ? | 04071-00250 | RING | 2 | SN: 28771- |
|||
| ? | □145-27-31430 | RING | 2 | SN: 20006-28770 |
|||
| ? | 141-27-31230 | COLLAR | 2 | SN: 20006- |
|||
| ? | 141-27-32126 | SPROCKET | 2 | SN: 32001-33000 |
|||
| ? | 141-27-32125 | SPROCKET | 2 | SN: 28169-32000 |
|||
| ? | 141-27-32124 | SPROCKET | 2 | SN: 20054-28168 |
|||
| ? | 141-27-32122 | SPROCKET | 2 | SN: 20006-20053 |
|||
| ? | 141-98-00141 | • RIM,(SERVICE PARTS) | 2 | SN: 28169-33000 |
|||
| ? | 141-98-00140 | • RIM,(SERVICE PARTS) | 2 | SN: 20006-28168 |
|||
| ? | 07000-05270 | O-RING | 2 | SN: 20006- |
|||
| ? | 141-27-32220 | PLATE | 2 | SN: 20006- |
|||
| ? | 01252-01635 | BOLT | 2 | SN: 20006- |
|||
| ? | 01602-01648 | WASHER | 2 | SN: 20006- |
|||
| ? | 04020-01228 | PIN | 2 | SN: 20006- |
|||
| ? | 141-27-32140 | NUT | 2 | SN: 20006- |
|||
| ? | 07000-05230 | O-RING | 2 | SN: 20006- |
|||
| ? | 150-27-00027 | FLOATING SEAL ASS'Y | 2 | SN: 32116- |
|||
| ? | □150-27-00026 | FLOATING SEAL ASS'Y | 2 | SN: 30112-32115 |
|||
| ? | □150-27-00025 | FLOATING SEAL ASS'Y | 2 | SN: 20006-30111 |
|||
| ? | 150-27-00270 | • O-RING ASS'Y | 1 | SN: 20006- |
|||
| ? | ☆ | • • O-RING | 2 | SN: 20006- |
|||
| ? | 150-27-00262 | • SEAL RING ASS'Y | 1 | SN: 32116- |
|||
| ? | □150-27-00261 | • SEAL RING ASS'Y | 1 | SN: 30112-32115 |
|||
| ? | □150-27-00260 | • SEAL RING ASS'Y | 1 | SN: 20006-30111 |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 32116- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 30112-32115 |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 20006-30111 |
|||
| ? | 145-27-42220 | GUARD | 2 | SN: 32001- |
|||
| ? | 145-27-32140 | GUARD | 2 | SN: 20006-32000 |
|||
| ? | 07000-05345 | O-RING | 2 | SN: 20006- |
|||
| ? | 145-27-42230 | BOLT | 16 | SN: 32001- |
|||
| ? | 01010-30822 | BOLT | 16 | SN: 22388-32000 |
|||
| ? | □01000-30822 | BOLT | 16 | SN: 20006-22387 |
|||
| ? | 01602-01030 | WASHER | 16 | SN: 32001- |
|||
| ? | 01602-00825 | WASHER | 16 | SN: 20006-32000 |
|||
| ? | 141-27-32260 | GUARD | 2 | SN: 22729- |
|||
| ? | □145-27-32150 | GUARD | 2 | SN: 20006-22728 |
|||
| ? | 01010-31020 | BOLT | 20 | SN: 20006- |
|||
| ? | 01602-01030 | WASHER | 20 | SN: 20006- |
|||
| ? | 141-27-32114 | HUB | 2 | SN: 33001- |
|||
| ? | 141-27-32114 | HUB (OP) | 2 | SN: 32001-33000 |
|||
| ? | 141-27-32113 | BOSS (OP) | 2 | SN: 20006-32000 |
|||
| ? | 141-27-32410 | TEETH | 18 | SN: 33001- |
|||
| ? | 141-27-32280 | TEETH (OP) | 18 | SN: 20006-33000 |
|||
| ? | 154-27-12320 | BOLT | 54 | SN: 33001- |
|||
| ? | 154-27-12293 | BOLT (OP) | 54 | SN: 20006-33000 |
|||
| ? | 01803-02228 | NUT | 54 | SN: 33001- |
|||
| ? | 01803-02228 | NUT (OP) | 54 | SN: 20006-33000 |
|||
| ? | 145-27-43110 | GUARD,L.H. | 1 | SN: 28787- |
|||
| ? | 144-942-1120 | GUARD,L.H. | 1 | SN: .-28786 |
|||
| ? | ▩145-942-1110 | GUARD,L.H. | 1 | SN: 20006-. |
|||
| ? | (144-942-1120{144-942-1112(7))} | ||||||
| ? | 145-27-43120 | GUARD,R.H. | 1 | SN: 28787- |
|||
| ? | 144-942-1130 | GUARD,R.H. | 1 | SN: .-28786 |
|||
| ? | ▩145-942-1120 | GUARD,R.H. | 1 | SN: 20006-. |
|||
| ? | (144-942-1130{144-942-1112(7))} | ||||||
| ? | 01010-31470 | BOLT | 12 | SN: 28787- |
|||
| ? | 144-942-1112 | BOLT,110MM | 14 | SN: .-28786 |
|||
| ? | 144-942-1111 | BOLT,130MM | 14 | SN: 22388-. |
|||
| ? | 144-942-1110 | BOLT | 14 | SN: 20006-22387 |
