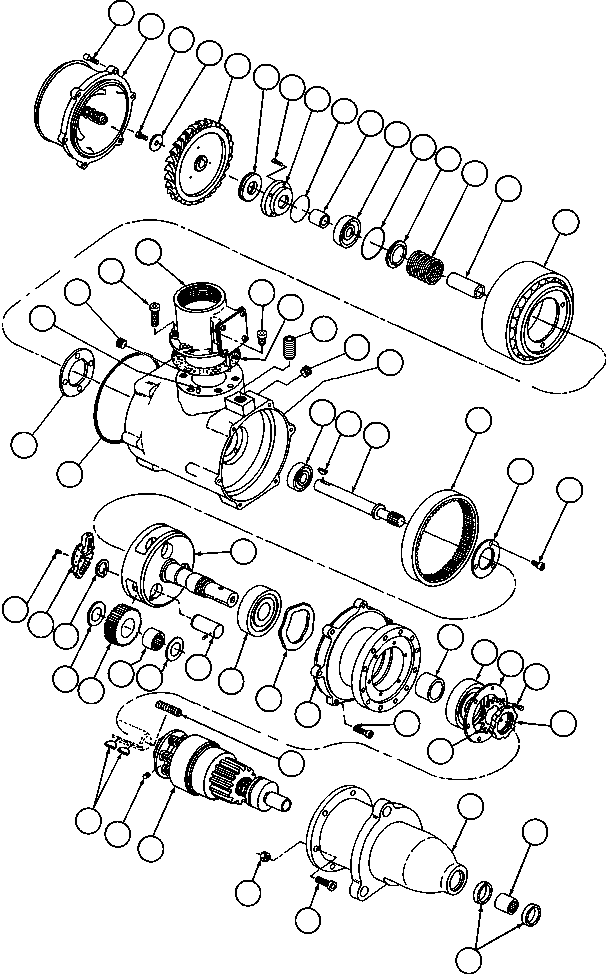

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
|
SCREW (1) |
6 |
|
|
|
|
? |
VE4843 |
TURBINE PLATE ASSM (SEE INDEX) (1) |
1 |
|
30026 |
|
|
? |
|
SCREW (2)/(3) |
1 |
|
|
|
|
? |
|
WASHER (2) |
1 |
|
|
|
|
? |
|
WHEEL, TURBINE (2) |
1 |
|
|
|
|
? |
|
SCREW (3)/(8) |
4 |
|
|
|
|
? |
|
SEAL, LIP (3) |
1 |
|
|
|
|
? |
|
HOUSING, SEAL (3) |
1 |
|
|
|
|
? |
|
O-RING (3) |
1 |
|
|
|
|
? |
|
SPACER (3) |
1 |
|
|
|
|
? |
|
BEARING (4)/(8) |
1 |
|
|
|
|
? |
|
O-RING (4)/(8) |
1 |
|
|
|
|
? |
VE4851 |
SEAT, SPRING |
1 |
|
|
|
|
? |
VE4852 |
SPRING |
1 |
|
|
|
|
? |
VE4853 |
SPACER |
1 |
|
|
|
|
? |
VE7271 |
NOZZLE/LINER |
1 |
|
|
|
|
? |
VE4854 |
AUTOMATIC TRIP VALVE (SEE INDEX) (5) |
1 |
|
30443 |
|
|
? |
|
SCREW (5) |
2 |
|
|
|
|
? |
|
SCREW (5) |
4 |
|
|
|
|
? |
|
GASKET (5)/(8) |
1 |
|
|
|
|
? |
|
PIN, DOWEL (5) |
2 |
|
|
|
|
? |
|
PLUG, PRSSURE, (9) |
1 |
|
|
|
|
? |
VE6988 |
GASKET, NOZZLE |
1 |
|
|
|
|
? |
VE6989 |
O-RING |
1 |
|
|
|
|
? |
VE6762 |
HOUSING, UNIVERSAL |
1 |
|
|
|
|
? |
|
PLUG, VENT (9) |
1 |
|
|
|
|
? |
VE4860 |
SET SCREW (9) |
1 |
|
|
|
|
? |
|
BEARING (4)/(8) |
1 |
|
|
|
|
? |
|
KEY (2)/(8) |
1 |
|
|
|
|
? |
VE4864 |
SHAFT, SUNGEAR |
1 |
|
|
|
|
? |
VE4865 |
GEAR, RING (9) |
1 |
|
|
|
|
? |
VE4866 |
PLATE, RETAINER |
1 |
|
|
|
|
? |
VE4847 |
SCREW, (8) |
1 |
|
|
|
|
? |
VE4867 |
SHAFT, CARRIER |
1 |
|
|
|
|
? |
|
SCREW (6) |
2 |
|
|
|
|
? |
|
HAMMER ASSEMBLY (6) |
1 |
|
|
|
|
? |
VE4870 |
RING, RETAINER |
3 |
|
|
|
|
? |
VE4871 |
WASHER |
3 |
|
|
|
|
? |
VE4872 |
GEAR, PLANET |
3 |
|
|
|
|
? |
VE4873 |
BEARING |
3 |
|
|
|
|
? |
VE4871 |
WASHER |
3 |
|
|
|
|
? |
VE4874 |
SHAFT, PLANET |
3 |
|
|
|
|
? |
VE4875 |
BEARING |
1 |
|
|
|
|
? |
VE4876 |
WASHER, SPRING |
1 |
|
|
|
|
? |
VE4878 |
HOUSING |
1 |
|
|
|
|
? |
VE4842 |
SCREW (8) |
6 |
|
|
|
|
? |
VE4879 |
SPACER, BEARING |
1 |
|
|
|
|
? |
VE4875 |
BEARING |
1 |
|
|
|
|
? |
VE4881 |
PLATE, RETAINER |
1 |
|
|
|
|
? |
VE4847 |
SCREW (8) |
6 |
|
|
|
|
? |
VE4877 |
LOCKWASHER (8) |
1 |
|
|
|
|
? |
VE4882 |
RETAINER, NUT |
1 |
|
|
|
|
? |
VE4883 |
KEY (8) |
2 |
|
|
|
|
? |
|
SPRING |
1 |
|
|
|
|
? |
|
SET SCREW |
1 |
|
|
|
|
? |
VE4884 |
BENDIX ASSEMBLY |
1 |
|
|
|
|
? |
VE4886 |
NUT |
6 |
|
|
|
|
? |
VE4887 |
SCREW |
6 |
|
|
|
|
? |
VE4888 |
DRIVE HOUSING, BENDIX |
1 |
|
|
|
|
? |
VE6990 |
SEAL, LIP |
2 |
|
|
|
|
? |
VE4885 |
BEARING |
1 |
|
|
|
|
? |
VE4889 |
NOTE: (1) SERVICED W/VE4889 REPAIR KIT. |
|
|
|
|
|
? |
VE4890 |
(2) SERVICED W/VE4890 REPAIR KIT. |
|
|
|
|
|
? |
VE6995 |
(3) SVCD W/VE6995 REPAIR KIT. |
|
|
|
|
|
? |
VE4891 |
(4) SERVICED W/VE4891 REPAIR KIT. |
|
|
|
|
|
? |
VE4892 |
(5) SERVICED W/VE4892 REPAIR KIT. |
|
|
|
|
|
? |
VE4894 |
(6) SERVICED W/VE4894 REPAIR KIT. |
|
|
|
|
|
? |
VE4889 |
(7) SERVICED W/VE4889 REPAIR KIT. |
|
|
|
|
|
? |
VE6996 |
(8) SERVICED W/VE6996 REPAIR KIT. |
|
|
|
|
|
? |
|
(9) INCLUDED IN VE6762 UNIVERSAL HOUSING. |
|
|
|
|
