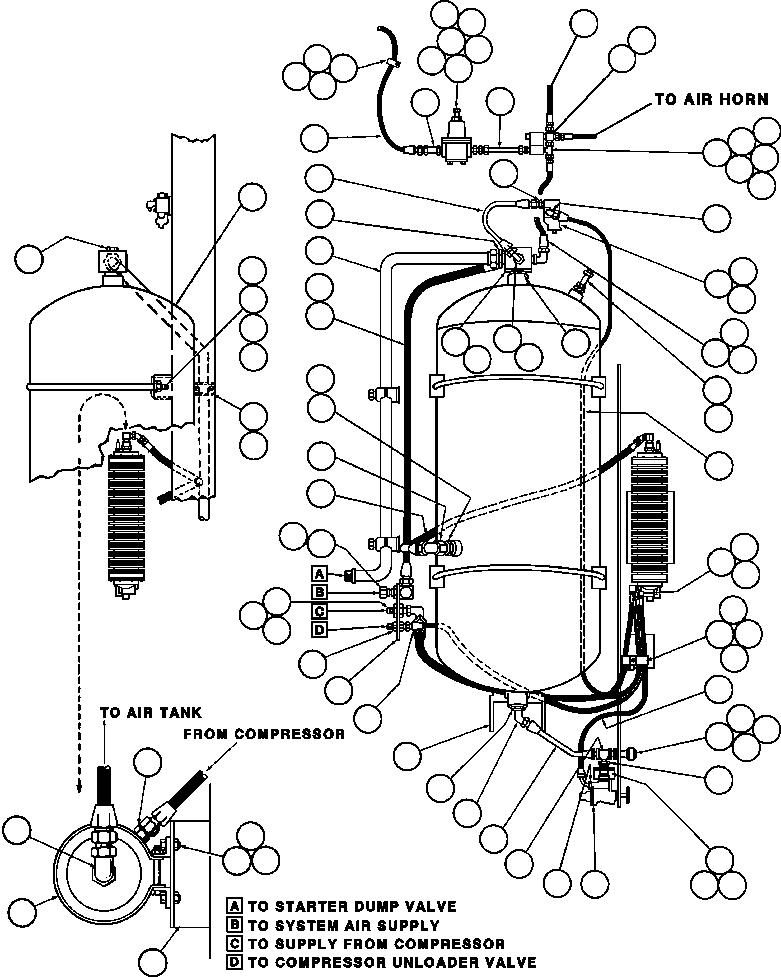

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
HA0586 |
HOSE |
1 |
|
|
|
|
? |
DL2676 |
FITTING, TUBE |
1 |
|
|
|
|
? |
SD5208 |
BUSHING, PIPE |
1 |
|
|
|
|
? |
VH4145 |
FITTING, TUBE |
1 |
|
|
|
|
? |
VW5504 |
GOVERNOR VALVE ASSEMBLY (SEE INDEX) |
1 |
|
40039 |
|
|
? |
SR6301 |
CAPSCREW - 1/4" - 20NC X 2 3/4" |
2 |
|
|
|
|
? |
C5774 |
LOCKWASHER - 1/4" |
2 |
|
|
|
|
? |
VH0596 |
FITTING, TUBE |
1 |
|
|
|
|
? |
TW1026 |
BLOCK, JUNCTION |
1 |
|
|
|
|
? |
|
(NOT USED THIS APPLICATION) |
|
|
|
|
|
? |
SV8013 |
NIPPLE, CLOSE |
1 |
|
|
|
|
? |
SR1606 |
VALVE, SAFETY |
1 |
|
|
|
|
? |
HD0876 |
BUSHING, PIPE |
1 |
|
|
|
|
? |
HA0190 |
HOSE |
1 |
|
|
|
|
? |
VY1005 |
FITTING, TUBE |
1 |
|
|
|
|
? |
PB1304 |
TEE, SWIVEL |
1 |
|
|
|
|
? |
VY3129 |
FITTING, TEE |
1 |
|
|
|
|
? |
TR9441 |
CLAMP |
2 |
|
|
|
|
? |
WA2220 |
WELD STUD - 1/2" - 13NC X 1" |
1 |
|
|
|
|
? |
C1523 |
NUT - 1/2" - 13NC |
5 |
|
|
|
|
? |
C1540 |
LOCKWASHER - 1/2" |
7 |
|
|
|
|
? |
HA1131 |
HOSE |
1 |
|
|
|
|
? |
E2579 |
NIPPLE, CLOSE |
1 |
|
|
|
|
? |
TF6987 |
SOCKET |
1 |
|
|
|
|
? |
TF6988 |
CAP |
1 |
|
|
|
|
? |
WA5820 |
FITTING, TUBE |
1 |
|
|
|
|
? |
VW5013 |
BRACKET |
1 |
|
|
|
|
? |
C1611 |
CAPSCREW - 1/2" - 13NC X 3/4" |
2 |
|
|
|
|
? |
PB4774 |
DRAIN VALVE ASSEMBLY (SEE INDEX) |
1 |
|
30053 |
|
|
? |
SV5630 |
ADAPTER |
1 |
|
|
|
|
? |
E2577 |
FITTING, PIPE |
1 |
|
|
|
|
? |
HA0780 |
HOSE |
1 |
|
|
|
|
? |
VH4142 |
FITTING, TUBE |
1 |
|
|
|
|
? |
TD8566 |
BUSHING, PIPE |
1 |
|
|
|
|
? |
TX9024 |
SUPPORT, TANK |
1 |
|
|
|
|
? |
HA1146 |
HOSE |
1 |
|
|
|
|
? |
VY9285 |
FITTING, BULKHEAD |
1 |
|
|
|
|
? |
TX9025 |
PLATE, MOUNTING |
1 |
|
|
|
|
? |
HA0158 |
HOSE |
1 |
|
|
|
|
? |
WA2564 |
FITTING, BULKHEAD |
1 |
|
|
|
|
? |
VN0110 |
FITTING, BULKHEAD |
1 |
|
|
|
|
? |
WA2569 |
NUT, FITTING |
1 |
|
|
|
|
? |
VC8634 |
HOSE |
1 |
|
|
|
|
? |
TD9749 |
ADAPTER |
2 |
|
|
|
|
? |
TV9133 |
VALVE, CHECK |
1 |
|
|
|
|
? |
HD8019 |
BUSHING, PIPE |
1 |
|
|
|
|
? |
TA4405 |
HOSE |
1 |
|
|
|
|
? |
TY8652 |
TUBE |
1 |
|
|
|
|
? |
TD7426 |
ADAPTER |
1 |
|
|
|
|
? |
R2028 |
PLUG, PIPE |
1 |
|
|
|
|
? |
TD9743 |
ADAPTER |
1 |
|
|
|
|
? |
SD5209 |
BUSHING, PIPE |
3 |
|
|
|
|
? |
TX9706 |
TANK, AIR |
1 |
|
|
|
|
? |
TY8651 |
STRAP |
2 |
|
|
|
|
? |
DD5640 |
FLAT WASHER - 1/2" |
4 |
|
|
|
|
? |
WA2770 |
CHANNEL |
2 |
|
|
|
|
? |
WA4710 |
CLAMP |
2 |
|
|
|
|
? |
TW9736 |
AIR AFTERCOOLER (SEE INDEX) |
1 |
|
11895 |
|
|
? |
TY7595 |
WIRE (ATTACHED TO PORT HEATER AT |
1 |
|
|
|
|
? |
|
BOTTOM OF AIR AFTERCOOLER) |
|
|
|
|
|
? |
WA2919 |
ELBOW - 90 DEG |
1 |
|
|
|
|
? |
TD8121 |
ADAPTER |
1 |
|
|
|
|
? |
EB8332 |
BRACKET, MOUNT |
1 |
|
|
|
|
? |
HA0383 |
HOSE |
1 |
|
|
|
|
? |
TD5557 |
FITTING, TUBE |
1 |
|
|
|
|
? |
VZ3502 |
SOLENOID VALVE ASSEMBLY (SEE INDEX) |
1 |
|
40142 |
|
|
? |
VF2231 |
MACHINE SCREW - #10 |
2 |
|
|
|
|
? |
DC3101 |
LOCKWASHER - #10 |
2 |
|
|
|
|
? |
VC5344 |
FLAT WASHER - #10 |
2 |
|
|
|
|
? |
TD9720 |
ADAPTER |
1 |
|
|
|
|
? |
WB0328 |
TEE |
1 |
|
|
|
|
? |
VM4281 |
HOSE (SUPPLY TO REAR OF CONTROL CABINET) |
1 |
|
|
|
|
? |
TZ3549 |
TUBE |
1 |
|
|
|
|
? |
PB3215 |
REGULATOR, PRESSURE |
1 |
|
|
|
|
? |
TM6380 |
BRACKET |
1 |
|
|
|
|
? |
WA2853 |
SET SCREW - #12 |
4 |
|
|
|
|
? |
VD2047 |
LOCKWASHER - #12 |
4 |
|
|
|
|
? |
PB6042 |
VALVE, CHECK |
1 |
|
|
|
|
? |
HA4840 |
HOSE (TO VENT ON SURGE TANK) |
1 |
|
|
|
|
? |
TF6925 |
CLAMP |
3 |
|
|
|
|
? |
VC2195 |
WELD STUD - 3/8" - 16NC X 1" |
1 |
|
|
|
|
? |
C1521 |
NUT - 3/8" - 16NC |
7 |
|
|
|
|
? |
C0312 |
LOCKWASHER - 3/8" |
7 |
|
|
|
|
? |
PB7463 |
VALVE, CHECK |
1 |
|
|
|
|
? |
VN0090 |
FITTING |
1 |
|
|
|
|
? |
C1603 |
CAPSCREW - 3/8" - 16NC X 1 1/4" |
4 |
|
|
|
|
? |
WB0383 |
TEE |
1 |
|
|
|
|
? |
WB0358 |
FITTING, ADAPTER (SEE AIR HORN PAGE) |
1 |
|
|
|
