Содержание Dump Trucks Komatsu AFE32-BE 830E S/N 32019 & 32123-32129 SUNCOR(AFE32-BE)

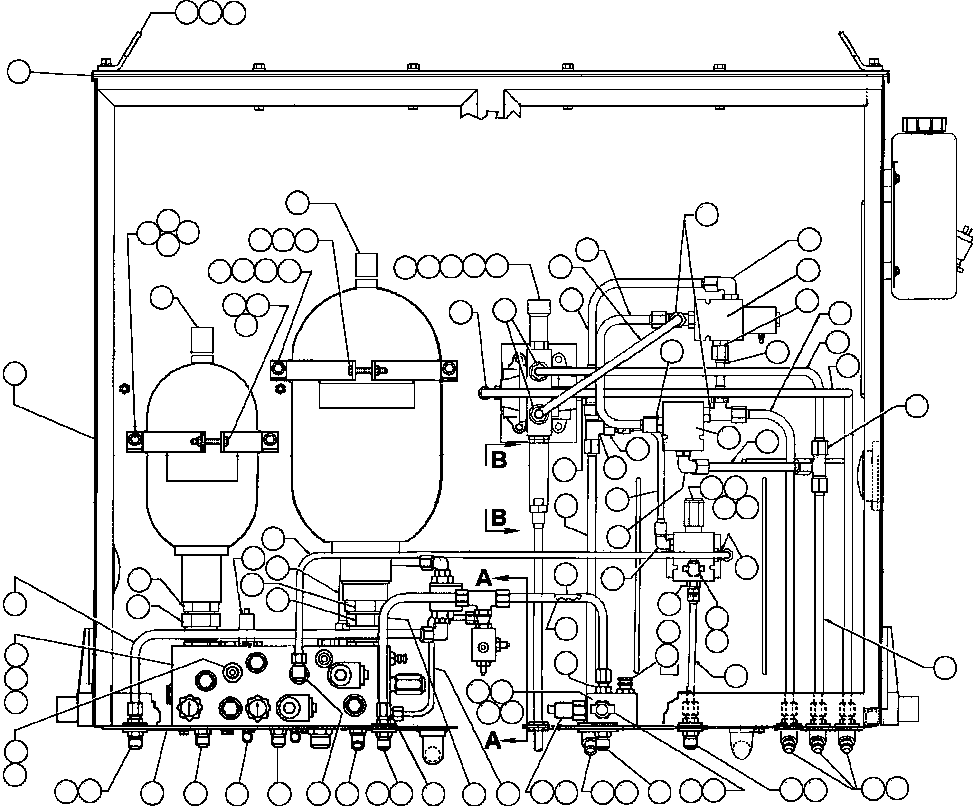

BRAKE CABINET ASSEMBLY (EC6246)(266 : 41276)
Наименование Страница Код страницы
ACCUMULATOR ASSEMBLY 278 40016
ACCUMULATOR ASSEMBLY 278 40016
PRESSURE REDUCING MANIFOLD VALVE (PB7054) 276 40041
SOLENOID VALVE ASSEMBLY (PB7242) 274 40045
HOIST PILOT VALVE ASSEMBLY (PB6922) 272 40064
BRAKE MANIFOLD - TWO CIRCUIT (PB8241) 280 40462

Номер на схеме Каталожный номер Название Количество Детали
? TY8068 EYE, LIFTING 2
? C0312 LOCKWASHER - 3/8" 14
? C1606 CAPSCREW - 3/8" - 16NC X 2" 6
? TY8067 LID, CABINET 1
? EC6229 CABINET, BRAKE 1
? TY8072 BRACKET, MOUNT 1
? C1603 CAPSCREW - 3/8" - 16NC X 1 1/4" 8
? WA0720 FLAT WASHER - 3/8" 10
? PB7057 ACCUMULATOR - 1 GALLON (SEE FIG 40016) 1 40016
? HE5611 LOCKNUT - 3/8" - 16NC 2
? C1606 CAPSCREW - 3/8" - 16NC X 2" 2
? TY8075 BRACKET, MOUNT 1
? PB7058 ACCUMULATOR - 2.5 GALLON (SEE FIG 40016) 1 40016
? WB0508 FITTING, O-RING - 90 DEG 3
? WB0584 FITTING, STRAIGHT O-RING 6
? C1521 NUT - 3/8" - 16NC 4
? PB6922 HOIST PILOT VALVE (SEE INDEX) 1 40064
? EB4164 TUBE 1
? EC6227 TUBE 1
? EB4166 TUBE 1
? WB0557 TEE 2
? PB7242 VALVE, SOLENOID - 3 WAY (SEE INDEX) 1 40045
? TZ5040 TUBE 1
? EC6231 TUBE 1
? EC6228 TUBE 1
? TZ5042 TUBE 1
? WB0418 TEE 2
? EC3342 TUBE 1
? WB0360 ADAPTER, STRAIGHT 1
? WB0384 TEE 1
? WB0567 TEE 1
? TY9267 TUBE 1
? TY9268 TUBE 1
? PB7054 PRESSURE REDUCING MANIFOLD VALVE (SEE INDEX) 1 40041
? C7591 CAPSCREW - 1/4" - 20NC X 2" 2
? C5774 LOCKWASHER - 1/4" 4
? VN9773 FLAT WASHER - 1/4" 2
? WB0505 FITTING, O-RING - 90 DEG 2
? TY9274 TUBE 1
? TY9265 TUBE 1
? WB0585 ADAPTER, STRAIGHT 4
? PB6041 CAP, DUST 6
? PB6528 COUPLING, DIAGNOSTIC 6
? TL3995 O-RING 4
? PB6784 SWITCH, PRESSURE 1
? WB0581 ADAPTER, STRAIGHT 1
? TY9264 TUBE 1
? EC3343 TUBE 1
? WB0249 FITTING, BULKHEAD - 45 DEG 3
? TF2449 FLAT WASHER - 3/4" 12
? WB0429 FITTING, STRAIGHT 1
? VN9780 FLAT WASHER - 9/16" 2
? TY7550 BLOCK, JUNCTION 1
? C5780 NUT - 1/4" - 20NC 2
? C7592 CAPSCREW - 1/4" - 20NC X 2 1/2" 2
? PB6992 SWITCH, PRESSURE 1
? PB6785 SWITCH, PRESSURE 1
? EB8213 TUBE 1
? WB0430 FITTING, STRAIGHT BULKHEAD 2
? WB0537 FITTING, O-RING - 45 DEG 1
? TY9262 TUBE 1
? WB0593 FITTING, STRAIGHT 1
? WB0574 FITTING, STRAIGHT 1
? PB8241 MANIFOLD, BRAKE (SEE INDEX) 1 40462
? C1602 CAPSCREW - 3/8" - 16NC X 1" 4
? TY9260 TUBE 1
? WA4796 FITTING, O-RING 2
? WV0602 ADAPTER, STRAIGHT 1
? PB8308 SWITCH, PRESSURE 1
? EB8211 TUBE 1
? EB8212 TUBE 1
? WB0601 ADAPTER, STRAIGHT 1
? WB0580 FITTING, O-RING 1
? PB8367 VALVE, CHECK 1
? EG4520 PLATE, BOTTOM (SPECIAL) 1
