Содержание Bulldozers Komatsu D375A-5 S/N 18001-UP(d375a-5c)

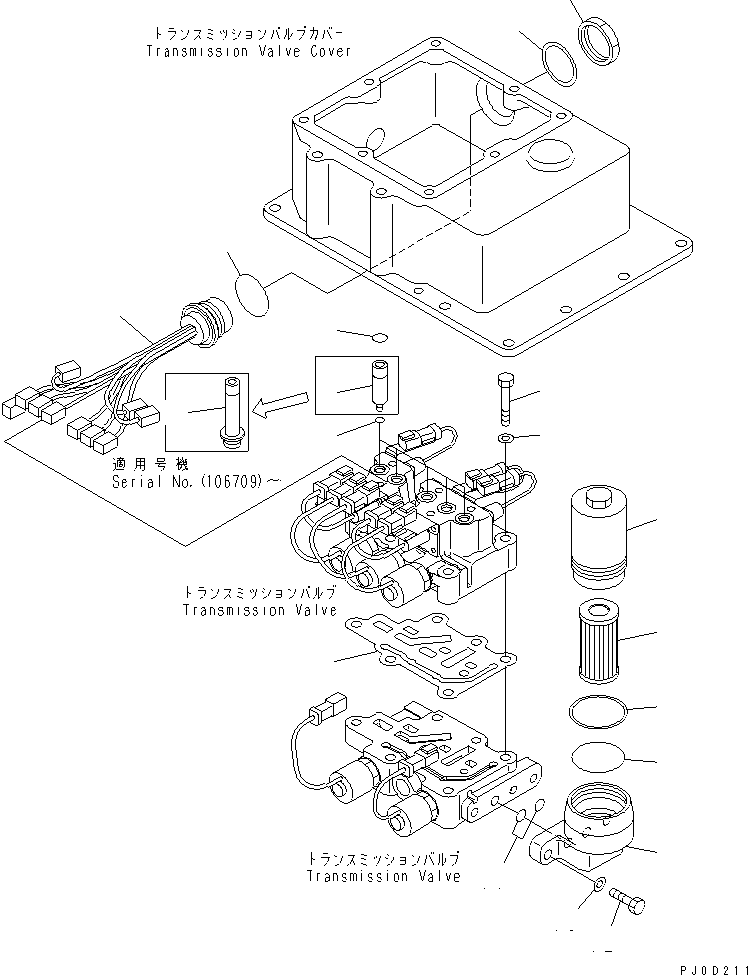

TRANSMISSION VALVE (1/4) ? FILTER AND HARNESS(150330 : F2320-59A0)
Номер на схеме Каталожный номер Название Количество Детали
? SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
SERIALNO:
? (195-15-71001) TRANSMISSION ASS'Y 1
SN: (107731)-
KIT-FLAG: _-
SERIALNO: (107731)-
? (195-15-71000) TRANSMISSION ASS'Y 1
SN: 18001-(107730)
KIT-FLAG: _-
SERIALNO: 18001-(107730)
? THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-64A0.
SERIALNO:
? 195-15-75101 • T/M VALVE ASS'Y,TRANSMISSION 1
SN: (107731)-
KIT-FLAG: _-
SERIALNO: (107731)-
? 195-15-75505 • CONTROL VALVE ASS'Y,TRANSMISSION 1
SN: 18713-
KIT-FLAG: _-
SERIALNO: 18713-
? (☒195-15-75504) • CONTROL VALVE ASS'Y,TRANSMISSION 1
SN: (18713-18957)
KIT-FLAG: _-
SERIALNO: (18713-18957)
? □195-15-75503 • CONTROL VALVE ASS'Y,TRANSMISSION 1
SN: 18329-18712
KIT-FLAG: _-
SERIALNO: 18329-18712
? □195-15-75502 • CONTROL VALVE ASS'Y,TRANSMISSION 1
SN: (106709)-00018328
KIT-FLAG: _-
SERIALNO: (106709)-00018328
? □195-15-75501 • CONTROL VALVE ASS'Y,TRANSMISSION 1
SN: (6481)-(106708)
KIT-FLAG: _-
SERIALNO: (6481)-(106708)
? □195-15-75500 • CONTROL VALVE ASS'Y,TRANSMISSION 1
SN: 18001-(6480)
KIT-FLAG: _-
SERIALNO: 18001-(6480)
? THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-59A0 TO F2320-61A0.
SERIALNO:
? 195-15-75531 • • GASKET (K3) 1
SN: (106709)-
KIT-FLAG: _-
SERIALNO: (106709)-
? 195-15-75530 • • GASKET (K3) 1
SN: 18001-(106708)
KIT-FLAG: _-
SERIALNO: 18001-(106708)
? 01010-81055 • • BOLT 2
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
? 01643-31032 • • WASHER 2
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
? 195-15-76310 • • SLEEVE 5
SN: (107731)-
KIT-FLAG: _-
SERIALNO: (107731)-
? 195-15-75541 • • PLUG 5
SN: (106709)-(107730)
KIT-FLAG: _-
SERIALNO: (106709)-(107730)
? 195-15-75540 • • PLUG 5
SN: 18001-(106708)
KIT-FLAG: _-
SERIALNO: 18001-(106708)
? 07000-72016 • • O-RING (K3) 5
SN: (107731)-
KIT-FLAG: _-
SERIALNO: (107731)-
? 07000-72012 • • O-RING (K3) 5
SN: 18001-(107730)
KIT-FLAG: _-
SERIALNO: 18001-(107730)
? 07002-61823 • • O-RING (K3) 5
SN: (106709)-
KIT-FLAG: _-
SERIALNO: (106709)-
? 07002-11023 • • O-RING (K3) 5
SN: 18001-(106708)
KIT-FLAG: _-
SERIALNO: 18001-(106708)
? 154-15-65554 • • FILTER ASS'Y 1
SN: (108303)-
KIT-FLAG: _-
SERIALNO: (108303)-
? 154-15-65553 • • FILTER ASS'Y 1
SN: (107404)-(108302)
KIT-FLAG: _-
SERIALNO: (107404)-(108302)
? 154-15-65552 • • FILTER ASS'Y 1
SN: 18713-(107403)
KIT-FLAG: _-
SERIALNO: 18713-(107403)
? □154-15-65551 • • FILTER ASS'Y 1
SN: 18329-18712
KIT-FLAG: _-
SERIALNO: 18329-18712
? □154-15-65550 • • FILTER ASS'Y 1
SN: (106741)-00018328
KIT-FLAG: _-
SERIALNO: (106741)-00018328
? □195-15-75550 • • FILTER ASS'Y 1
SN: 18001-(106740)
KIT-FLAG: _-
SERIALNO: 18001-(106740)
? 154-15-65561 • • • ELEMENT 1
SN: 18713-
KIT-FLAG: _-
SERIALNO: 18713-
? □154-15-65560 • • • ELEMENT 1
SN: (106741)-00018712
KIT-FLAG: _-
SERIALNO: (106741)-00018712
? □195-15-75560 • • • ELEMENT 1
SN: 18001-(106740)
KIT-FLAG: _-
SERIALNO: 18001-(106740)
? 154-15-65590 • • • O-RING (K3) 1
SN: (107404)-
KIT-FLAG: _-
SERIALNO: (107404)-
? 209-38-12480 • • • O-RING (K3) 1
SN: 18001-(107403)
KIT-FLAG: _-
SERIALNO: 18001-(107403)
? 209-38-12490 • • • RING,BACK-UP (K3) 1
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
? 07000-72014 • • O-RING (K3) 2
SN: 18329-
KIT-FLAG: _-
SERIALNO: 18329-
? 07000-72015 • • O-RING (K3) 2
SN: 18001-18328
KIT-FLAG: _-
SERIALNO: 18001-18328
? 01010-81035 • • BOLT 2
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
? 01643-31032 • • WASHER 2
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
? 195-15-77200 • • HARNESS 1
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
? 195-15-75740 • • • O-RING (K3) 1
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
? 08191-50809 • • • WASHER, LOCK 1
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
? 08191-50808 • • • NUT 1
SN: 18001-
KIT-FLAG: _-
SERIALNO: 18001-
