| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | SERIALNO: |
|||||

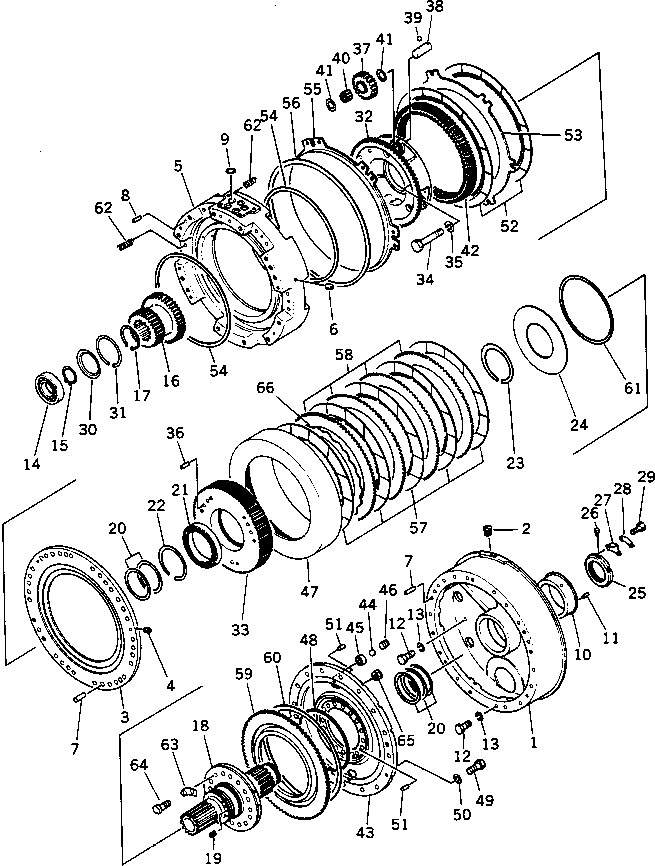

| ? | (196-15-00012) | TRANSMISSION ASS'Y | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.1251ATO 1262A. | SERIALNO: |
|||||
| ? | 196-15-00030 | • HOUSING ASS'Y,1ST | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | ☆ | • • HOUSING,1ST CLUTCH | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 234-15-12780 | • • SCREW | 3 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-00240 | • PLATE ASS'Y,2ND | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | ☆ | • • PLATE | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 145-14-11320 | • • PLUG | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-00251 | • HOUSING ASS'Y | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | ☆ | • • HOUSING | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 145-14-11320 | • • PLUG | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-31210 | • PIN,DOWEL | 4 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 04020-01228 | • PIN,DOWEL | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 07000-73022 | • O-RING (K2) | 5 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-41310 | • COLLAR | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 04020-00616 | • PIN,DOWEL | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 01010-61435 | • BOLT | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 01602-01442 | • WASHER,SPRING | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 06042-00212 | • BEARING,ROLLER | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 04064-06020 | • RING,SNAP | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42131 | • GEAR | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 04064-08530 | • RING,SNAP | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-00314 | • SHAFT ASS'Y | 1 | SN: (5345)- KIT-FLAG: _- SERIALNO: (5345)- |
|||
| ? | □175-15-00313 | • SHAFT ASS'Y | 1 | SN: (5215)-(5344) KIT-FLAG: _- SERIALNO: (5215)-(5344) |
|||
| ? | ☆ | • • SHAFT | 1 | SN: (5345)- KIT-FLAG: _- SERIALNO: (5345)- |
|||
| ? | ☆ | • • SHAFT | 1 | SN: (5215)-(5344) KIT-FLAG: _- SERIALNO: (5215)-(5344) |
|||
| ? | 145-14-11320 | • • PLUG | 8 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42850 | • RING,SEAL | 5 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 06000-06924 | • BEARING,BALL | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 130-09-16780 | • RING,SNAP | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 04070-00130 | • RING,SNAP | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42180 | • SPRING | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 234-21-12180 | • NUT | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42220 | • PIN,LOCK | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 234-21-12190 | • PLATE,LOCK | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 234-21-12210 | • PLATE,LOCK | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 01010-80814 | • BOLT | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42340 | • PLATE | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 130-09-15740 | • RING,SNAP | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42364 | • CARRIER,PLANETARY | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42371 | • GEAR,1ST | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 01010-61490 | • BOLT | 6 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 01643-31445 | • WASHER | 6 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 04020-01228 | • PIN,DOWEL | 6 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42491 | • GEAR | 3 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42552 | • SHAFT | 3 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 04260-00635 | • BALL | 3 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 09232-03838 | • BEARING,NEEDLE | 3 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 09233-13820 | • WASHER | 6 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42650 | • GEAR | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-00333 | • HOUSING ASS'Y | 1 | SN: (5345)- KIT-FLAG: _- SERIALNO: (5345)- |
|||
| ? | 175-15-00332 | • HOUSING ASS'Y | 1 | SN: (5215)-(5344) KIT-FLAG: _- SERIALNO: (5215)-(5344) |
|||
| ? | ☆ | • • HOUSING,1ST CLUTCH | 1 | SN: (5345)- KIT-FLAG: _- SERIALNO: (5345)- |
|||
| ? | ☆ | • • HOUSING,1ST CLUTCH | 1 | SN: (5215)-(5344) KIT-FLAG: _- SERIALNO: (5215)-(5344) |
|||
| ? | 04260-00952 | • • BALL | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42971 | • • COLLAR | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 234-15-12790 | • • SCREW | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42421 | • DRUM,1ST CLUTCH | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42430 | • O-RING (K2) | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 01010-81230 | • BOLT | 12 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 01643-51232 | • WASHER | 12 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 04020-01228 | • PIN,DOWEL | 4 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 19M-15-12721 | • DISC,CLUTCH | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42721 | • PLATE,CLUTCH | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 155-15-12820 | • RING,SEAL | 2 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42871 | • PISTON,CLUTCH | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-59240 | • RING,SEAL | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 195-15-32710 | • DISC | 5 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 281-15-12720 | • PLATE | 4 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42741 | • PISTON | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 582-15-19240 | • RING | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 154-15-22831 | • RING,SEAL | 1 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 145-14-12790 | • SPRING, (L= 59.0),(L=59) | 24 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42240 | • PLATE,LOCK | 8 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42230 | • BOLT,REAMER | 16 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 01582-01210 | • NUT | 16 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
|||
| ? | 175-15-42890 | • SPRING | 5 | SN: (5215)- KIT-FLAG: _- SERIALNO: (5215)- |
