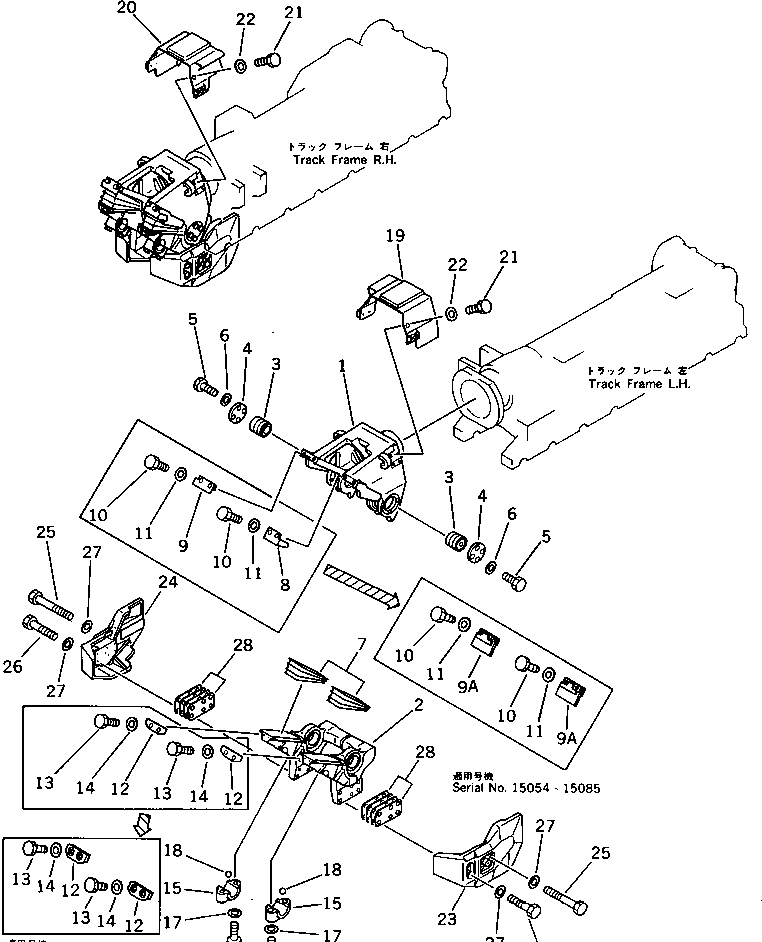

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 195-30-00630 | YOKE ASS'Y | 2 | SN: 15054-15085 |
|||
| ? | 195-30-00590 | YOKE ASS'Y | 2 | SN: 15001-15053 |
|||
| ? | 195-30-33860 | • YOKE | 1 | SN: 15001-15085 |
|||
| ? | 195-30-33810 | • BOGIE | 1 | SN: 15001-15085 |
|||
| ? | 195-30-32300 | • PIN ASS'Y | 2 | SN: 15001-@ |
|||
| ? | 195-30-33750 | • PLATE | 2 | SN: 15001-@ |
|||
| ? | 01010-51230 | • BOLT | 8 | SN: 15001-@ |
|||
| ? | 01643-31232 | • WASHER | 8 | SN: 15001-@ |
|||
| ? | 195-30-33910 | • PAD | 2 | SN: 15001-@ |
|||
| ? | 195-30-33920 | • COVER,L.H. | 1 | SN: 15001-15085 |
|||
| ? | 195-30-33930 | • COVER,R.H. | 1 | SN: 15001-15053 |
|||
| ? | 195-30-33970 | • COVER,R.H. | 2 | SN: 15054-15085 |
|||
| ? | 01010-51650 | • BOLT | 4 | SN: 15001-15085 |
|||
| ? | 01643-31645 | • WASHER | 4 | SN: 15001-15085 |
|||
| ? | 195-30-33980 | • COVER | 2 | SN: 15054-15085 |
|||
| ? | 195-30-33940 | • COVER | 2 | SN: 15001-15053 |
|||
| ? | 01010-51635 | • BOLT | 4 | SN: 15001-15085 |
|||
| ? | 01643-31645 | • WASHER | 4 | SN: 15001-15085 |
|||
| ? | 195-30-33820 | • CAP | 2 | SN: 15001-@ |
|||
| ? | 01011-83325 | • BOLT | 4 | SN: 15001-@ |
|||
| ? | 01643-33380 | • WASHER | 4 | SN: 15001-@ |
|||
| ? | 04260-01905 | • BALL | 2 | SN: 15001-@ |
|||
| ? | 195-30-34730 | COVER,L.H. | 1 | SN: 15001-15085 |
|||
| ? | 195-30-34720 | COVER,R.H. | 1 | SN: 15001-15085 |
|||
| ? | 01010-51635 | BOLT | 12 | SN: 15001-15085 |
|||
| ? | 01643-31645 | WASHER | 12 | SN: 15001-15085 |
|||
| ? | 195-30-37340 | GUARD,L.H. | 2 | SN: 15001-@ |
|||
| ? | 195-30-37330 | GUARD,R.H. | 2 | SN: 15001-@ |
|||
| ? | 01011-83340 | BOLT | 16 | SN: 15001-@ |
|||
| ? | 01011-83310 | BOLT | 8 | SN: 15001-@ |
|||
| ? | 01643-33380 | WASHER | 24 | SN: 15001-@ |
|||
| ? | 195-30-05050 | SHIM ASS'Y | 4 | SN: 15001-@ |
|||
| ? | ☆ | • SHIM¤ 0.5MM | 2 | SN: 15001-@ |
|||
| ? | ☆ | • SHIM¤ 1.0MM | 20 | SN: 15001-@ |
