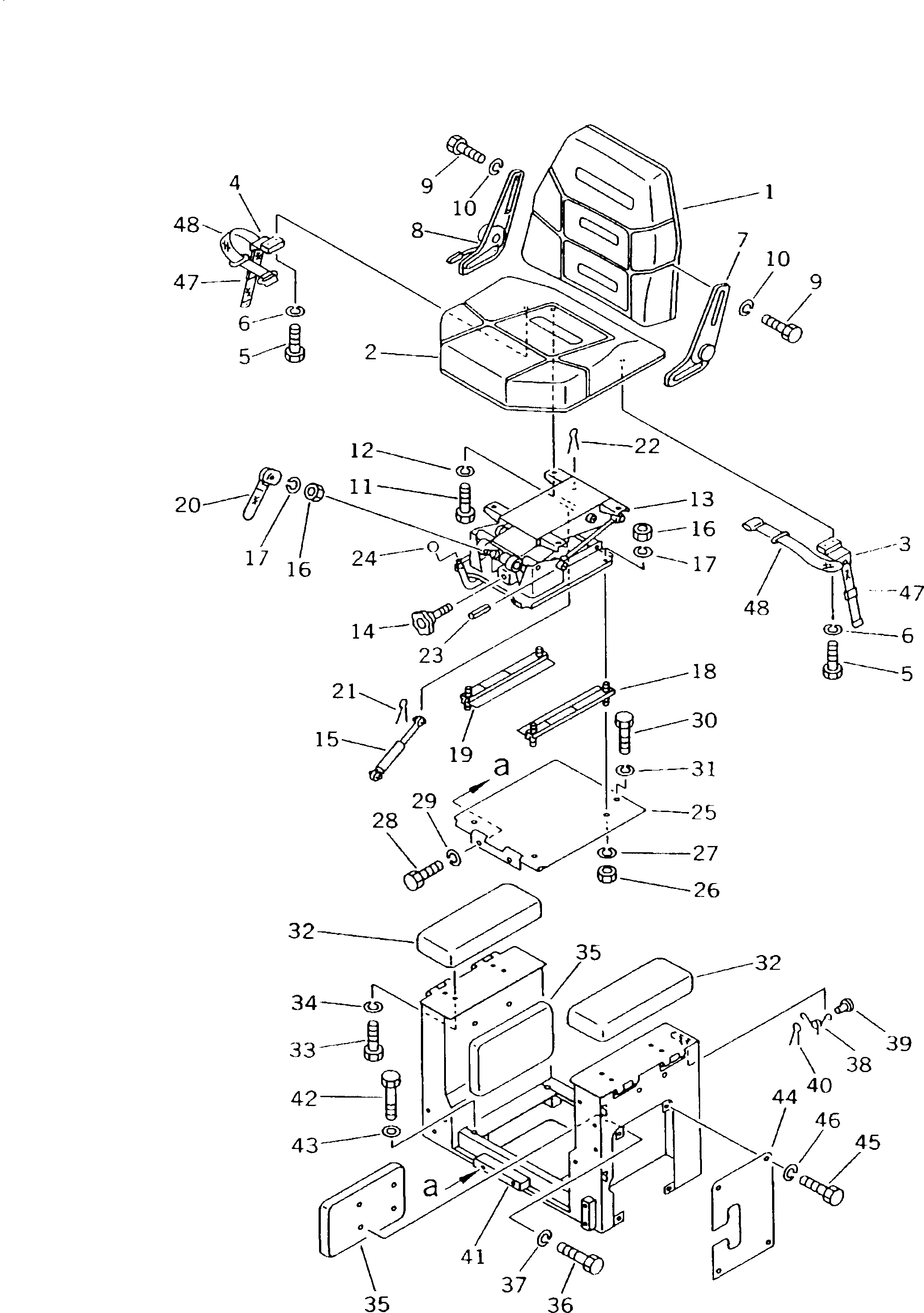

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 195-57-21231 | SEAT | 1 | SN: 31271-31415 |
|||
| ? | 195-57-21241 | SEAT | 1 | SN: 31271-31415 |
|||
| ? | 195-57-21250 | BRACKET,L.H. | 1 | SN: 31271-31415 |
|||
| ? | 195-57-21260 | BRACKET,R.H. | 1 | SN: 31271-31415 |
|||
| ? | 01010-51040 | BOLT | 4 | SN: 31271-31415 |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 31271-31415 |
|||
| ? | 155-57-12182 | BRACKET | 1 | SN: 31271-31415 |
|||
| ? | 155-57-12191 | LEVER | 1 | SN: 31271-31415 |
|||
| ? | 01010-51020 | BOLT | 8 | SN: 31271-31415 |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 31271-31415 |
|||
| ? | 01010-31020 | BOLT | 4 | SN: 15686-31415 |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 15686-31415 |
|||
| ? | 195-57-21180 | SUSPENSION ASS'Y | 1 | SN: 31271-31415 |
|||
| ? | 155-57-12320 | • KNOB | 1 | SN: 15686-31415 |
|||
| ? | 155-57-12330 | • DAMPER | 1 | SN: 15686-31415 |
|||
| ? | 01580-11210 | • NUT | 5 | SN: 31271-31415 |
|||
| ? | 01602-21236 | • WASHER,SPRING | 5 | SN: 31271-31415 |
|||
| ? | 01602-01236 | • WASHER | 1 | SN: 31271-31415 |
|||
| ? | 195-57-21221 | • ADJUSTER | 1 | SN: 31271-31415 |
|||
| ? | 195-57-21190 | • LEVER | 1 | SN: 31271-31415 |
|||
| ? | 04050-13015 | • PIN,COTTER | 2 | SN: 31271-31415 |
|||
| ? | 04050-14025 | • PIN,COTTER | 2 | SN: 31271-31415 |
|||
| ? | 04025-00432 | • PIN,SPRING | 7 | SN: 31271-31415 |
|||
| ? | 09304-00835 | • KNOB | 1 | SN: 31271-31415 |
|||
| ? | 176-57-41151 | COVER | 1 | SN: 31271-31415 |
|||
| ? | 01580-01210 | NUT | 4 | SN: 15686-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 15686-@ |
|||
| ? | 01010-31225 | BOLT | 2 | SN: 15686-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 2 | SN: 15686-@ |
|||
| ? | 01010-31230 | BOLT | 2 | SN: 15686-@ |
|||
| ? | 01602-01232 | WASHER,SPRING | 2 | SN: 15686-@ |
|||
| ? | 195-875-2141 | REST,ARM | 2 | SN: 15686-@ |
|||
| ? | 01010-30825 | BOLT | 8 | SN: 15686-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 8 | SN: 15686-@ |
|||
| ? | 195-875-2130 | CUSHION,SIDE | 2 | SN: 15686-@ |
|||
| ? | 01010-30825 | BOLT | 8 | SN: 15686-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 8 | SN: 15686-@ |
|||
| ? | 09463-00002 | SPRING,L.H. | 1 | SN: 15686-@ |
|||
| ? | 09463-00006 | SPRING,R.H. | 1 | SN: 15686-@ |
|||
| ? | 04205-00616 | PIN | 4 | SN: 15686-@ |
|||
| ? | 04050-01610 | PIN,COTTER | 4 | SN: 15686-@ |
|||
| ? | 176-57-41112 | CASE | 1 | SN: 15686-@ |
|||
| ? | 176-57-41180 | CASE,(FOR MOUNTING SEAT BELT) | 1 | SN: 15686-@ |
|||
| ? | 01010-31485 | BOLT | 4 | SN: 15686-@ |
|||
| ? | 01643-31445 | WASHER | 4 | SN: 15686-@ |
|||
| ? | 176-57-41121 | COVER | 1 | SN: 15686-@ |
|||
| ? | 01010-30820 | BOLT | 4 | SN: 15686-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 4 | SN: 15686-@ |
|||
| ? | 09409-20000 | BELT¤ TETHER | 2 | SN: 15686-@ |
|||
| ? | 09409-10001 | BELT¤ LAP | 1 | SN: 15686-31415 |
