| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (176-911-0030) | CAB ASS'Y | 1 | SN: 23933- |
|||

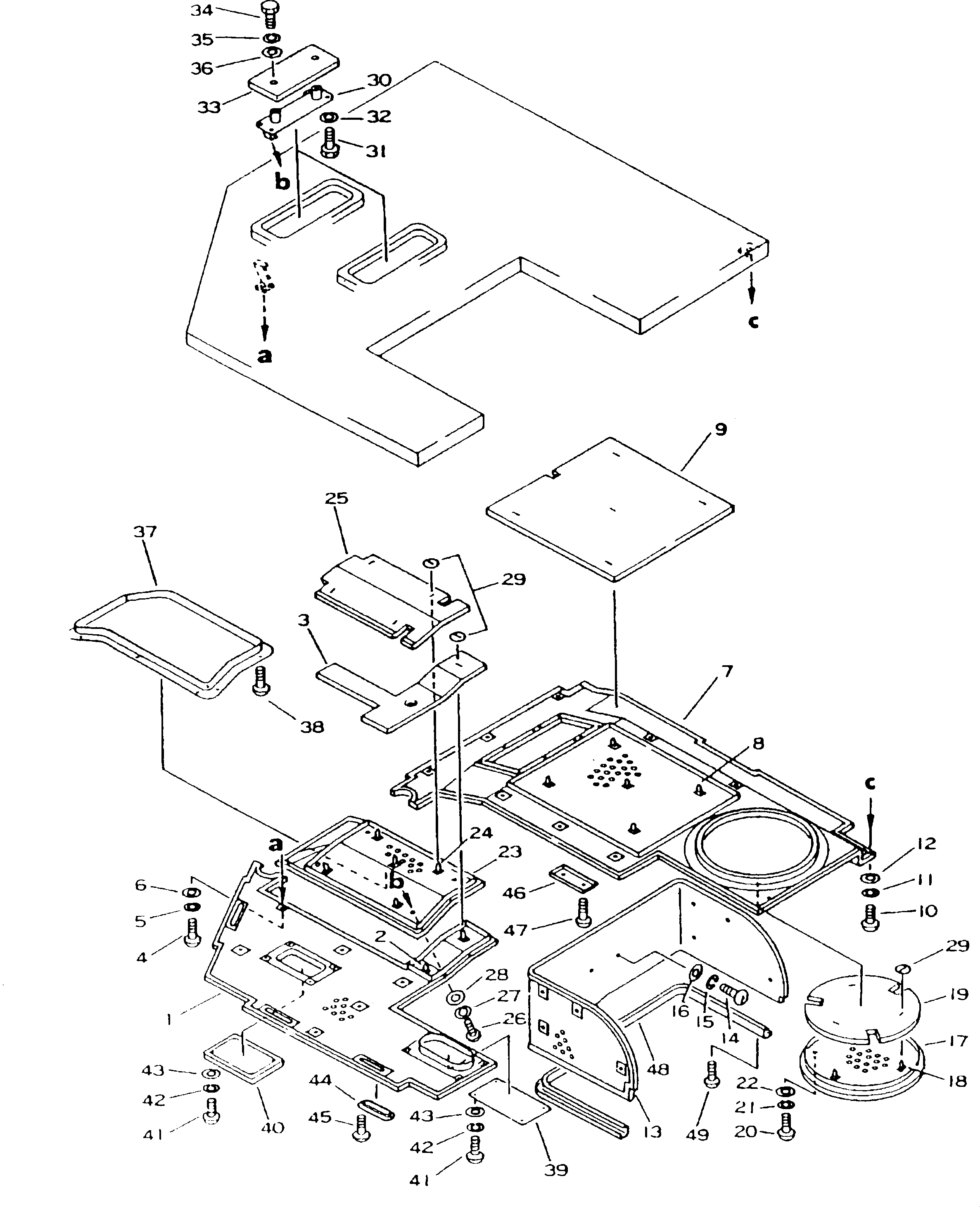

| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.1840 TO 1845. | ||||||
| ? | 176-911-2642 | • COVER | 1 | SN: 23933- |
|||
| ? | 205-54-85110 | • • CLIP (WELDED) | 2 | SN: 23933- |
|||
| ? | 176-911-2652 | • WOOL¤ROCK | 1 | SN: 23933- |
|||
| ? | 01220-30620 | • SCREW | 9 | SN: 23933- |
|||
| ? | 01602-00619 | • WASHER,SPRING | 9 | SN: 23933- |
|||
| ? | 01643-30623 | • WASHER | 9 | SN: 23933- |
|||
| ? | 176-911-2682 | • COVER | 1 | SN: 23933- |
|||
| ? | 205-54-85110 | • • CLIP (WELDED) | 5 | SN: 23933- |
|||
| ? | 176-911-2692 | • WOOL¤ROCK | 1 | SN: 23933- |
|||
| ? | 01220-30620 | • SCREW | 13 | SN: 23933- |
|||
| ? | 01602-00619 | • WASHER,SPRING | 13 | SN: 23933- |
|||
| ? | 01643-30623 | • WASHER | 13 | SN: 23933- |
|||
| ? | 176-911-2721 | • COVER | 1 | SN: 23933- |
|||
| ? | 01220-30620 | • SCREW | 12 | SN: 23933- |
|||
| ? | 01602-00619 | • WASHER,SPRING | 12 | SN: 23933- |
|||
| ? | 01643-30623 | • WASHER | 12 | SN: 23933- |
|||
| ? | 176-911-2750 | • COVER,(NOT USED WITH VENTILATOR) | 1 | SN: 23933- |
|||
| ? | 205-54-85110 | • • CLIP (WELDED) | 3 | SN: 23933- |
|||
| ? | 176-911-2760 | • WOOL¤ROCK,(NOT USED WITH VENTILATOR) | 1 | SN: 23933- |
|||
| ? | 01220-30620 | • SCREW,(NOT USED WITH VENTILATOR) | 3 | SN: 23933- |
|||
| ? | 01602-00619 | • WASHER,(NOT USED WITH VENTILATOR) | 3 | SN: 23933- |
|||
| ? | 01643-30623 | • WASHER,(NOT USED WITH VENTILATOR) | 3 | SN: 23933- |
|||
| ? | 176-911-2780 | • COVER | 1 | SN: 23933- |
|||
| ? | 205-54-85110 | • • CLIP (WELDED) | 5 | SN: 23933- |
|||
| ? | 176-911-2790 | • WOOL¤ROCK | 1 | SN: 23933- |
|||
| ? | 01220-30620 | • SCREW | 4 | SN: 23933- |
|||
| ? | 01602-00619 | • WASHER,SPRING | 4 | SN: 23933- |
|||
| ? | 01643-30623 | • WASHER | 4 | SN: 23933- |
|||
| ? | 205-54-85120 | • PLATE,(WITH VENTILATOR) | 12 | SN: 23933- |
|||
| ? | 205-54-85120 | • PLATE,(WITHOUT VENTILATOR) | 15 | SN: 23933- |
|||
| ? | 176-911-2810 | • BRACKET | 1 | SN: 23933- |
|||
| ? | 01010-80820 | • BOLT | 8 | SN: 23933- |
|||
| ? | 01602-00825 | • WASHER,SPRING | 8 | SN: 23933- |
|||
| ? | 154-979-2280 | • SEAT | 2 | SN: 23933- |
|||
| ? | 01010-80612 | • BOLT | 4 | SN: 23933- |
|||
| ? | 01602-00619 | • WASHER,SPRING | 4 | SN: 23933- |
|||
| ? | 01643-30623 | • WASHER | 4 | SN: 23933- |
|||
| ? | 176-911-2740 | • COVER | 1 | SN: 23933- |
|||
| ? | 01220-30412 | • SCREW | 10 | SN: 23933- |
|||
| ? | 176-911-2930 | • COVER | 1 | SN: 23933- |
|||
| ? | 176-911-2940 | • COVER | 1 | SN: 23933- |
|||
| ? | 01220-30620 | • SCREW | 8 | SN: 23933- |
|||
| ? | 01602-00619 | • WASHER,SPRING | 8 | SN: 23933- |
|||
| ? | 01643-30623 | • WASHER | 8 | SN: 23933- |
|||
| ? | 176-911-2970 | • COVER | 4 | SN: 23933- |
|||
| ? | 01220-30412 | • SCREW | 8 | SN: 23933- |
|||
| ? | 176-911-2980 | • COVER | 1 | SN: 23933- |
|||
| ? | 01220-30612 | • SCREW | 2 | SN: 23933- |
|||
| ? | 176-911-2990 | • COVER | 1 | SN: 23933- |
|||
| ? | 01220-30412 | • SCREW | 10 | SN: 23933- |
