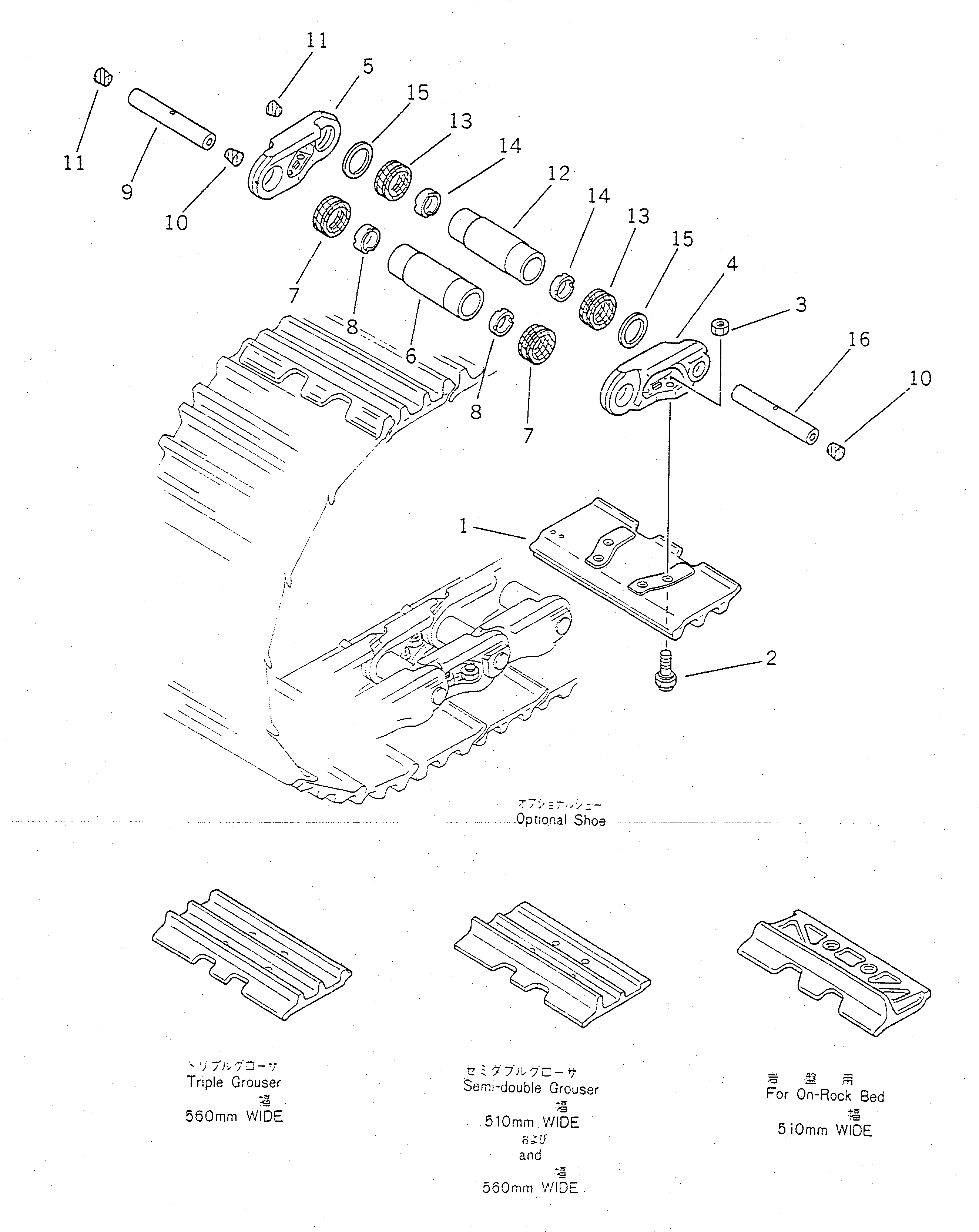

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | TRIPLE 510MM | SERIALNO: |
|||||
| ? | 155-32-01203 | TRACK SHOE ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-01202 | TRACK SHOE ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | 155-32-11412 | • SHOE,TRACK | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-11320 | • BOLT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 01803-02026 | • NUT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-00053 | • TRACK LINK ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-00052 | • TRACK LINK ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | 154-32-11127 | • • LINK,TRACK, L.H. | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 154-32-11137 | • • LINK,TRACK, R.H. | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 154-32-41142 | • • BUSHING,REGULAR | 78 | SN: 2040-@ KIT-FLAG: _- SERIALNO: 2040-@ |
|||
| ? | 154-32-41163 | • • SEAL ASS'Y | 156 | SN: 2040-@ KIT-FLAG: _- SERIALNO: 2040-@ |
|||
| ? | 154-32-41251 | • • SPACER | 156 | SN: 2040-@ KIT-FLAG: _- SERIALNO: 2040-@ |
|||
| ? | 154-32-41150 | • • PIN, REGULAR | 78 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 198-32-11291 | • • PLUG,LARGE | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 198-32-11310 | • • PLUG,SMALL | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 154-32-41340 | • • BUSHING, MASTER | 4 | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
|||
| ? | 154-32-41163 | • • SEAL ASS'Y | 8 | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
|||
| ? | 154-32-41251 | • • SPACER | 8 | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
|||
| ? | 154-32-31350 | • • SPACER | 8 | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
|||
| ? | 154-32-41190 | • • PIN, MASTER | 4 | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
|||
| ? | TRIPLE 560MM | SERIALNO: |
|||||
| ? | 155-32-01213 | TRACK SHOE ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-01212 | TRACK SHOE ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | 155-32-11421 | • SHOE,TRACK | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-11320 | • BOLT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 01803-02026 | • NUT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-00053 | • TRACK LINK ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-00052 | • TRACK LINK ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | SEMI-DOUBLE 510MM | SERIALNO: |
|||||
| ? | 155-32-01223 | TRACK SHOE ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-01222 | TRACK SHOE ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | 155-32-11114 | • SHOE,TRACK | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-11330 | • BOLT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 01803-02026 | • NUT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-00053 | • TRACK LINK ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-00052 | • TRACK LINK ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | SEMI-DOUBLE 560MM | SERIALNO: |
|||||
| ? | 155-32-01233 | TRACK SHOE ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-01232 | TRACK SHOE ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | 155-32-11280 | • SHOE,TRACK | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-11330 | • BOLT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 01803-02026 | • NUT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-00053 | • TRACK LINK ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-00052 | • TRACK LINK ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | ON-ROCKBED 510MM | SERIALNO: |
|||||
| ? | 155-32-01243 | TRACK SHOE ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-01242 | TRACK SHOE ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | 155-32-11361 | • SHOE,TRACK | 82 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-11330 | • BOLT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 01803-02026 | • NUT, SHOE (KIT) | 328 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-00053 | • TRACK LINK ASS'Y | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | □155-32-00052 | • TRACK LINK ASS'Y | 1 | SN: 2001-2135 KIT-FLAG: _- SERIALNO: 2001-2135 |
|||
| ? | SERVICE KIT | SERIALNO: |
|||||
| ? | 155-32-05020 | SHOE BOLT AND NUT K. | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-11320 | • BOLT, SHOE | 30 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 01803-02026 | • NUT, SHOE | 30 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-05030 | SHOE BOLT AND NUT K.,(EXCEPT TRIPLE GROUSER) | 1 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 155-32-11330 | • BOLT, SHOE | 30 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | 01803-02026 | • NUT, SHOE | 30 | SN: 2001-@ KIT-FLAG: _- SERIALNO: 2001-@ |
|||
| ? | OVERSIZE PARTS | SERIALNO: |
|||||
| ? | 0.10MM OVERSIZE | SERIALNO: |
|||||
| ? | 154-98-09530 | BUSHING,REGULAR | A/R | SN: 2089-@ KIT-FLAG: _- SERIALNO: 2089-@ |
|||
| ? | 154-98-09360 | PIN, REGULAR | A/R | SN: 2089-@ KIT-FLAG: _- SERIALNO: 2089-@ |
|||
| ? | 154-98-09510 | BUSHING, MASTER | A/R | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
|||
| ? | 154-98-09340 | PIN, MASTER | A/R | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
|||
| ? | 0.18MM OVERSIZE | SERIALNO: |
|||||
| ? | 154-98-09540 | BUSHING,REGULAR | A/R | SN: 2089-@ KIT-FLAG: _- SERIALNO: 2089-@ |
|||
| ? | 154-98-09370 | PIN, REGULAR | A/R | SN: 2089-@ KIT-FLAG: _- SERIALNO: 2089-@ |
|||
| ? | 154-98-09520 | BUSHING, MASTER | A/R | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
|||
| ? | 154-98-09350 | PIN, MASTER | A/R | SN: 2089-2135 KIT-FLAG: _- SERIALNO: 2089-2135 |
