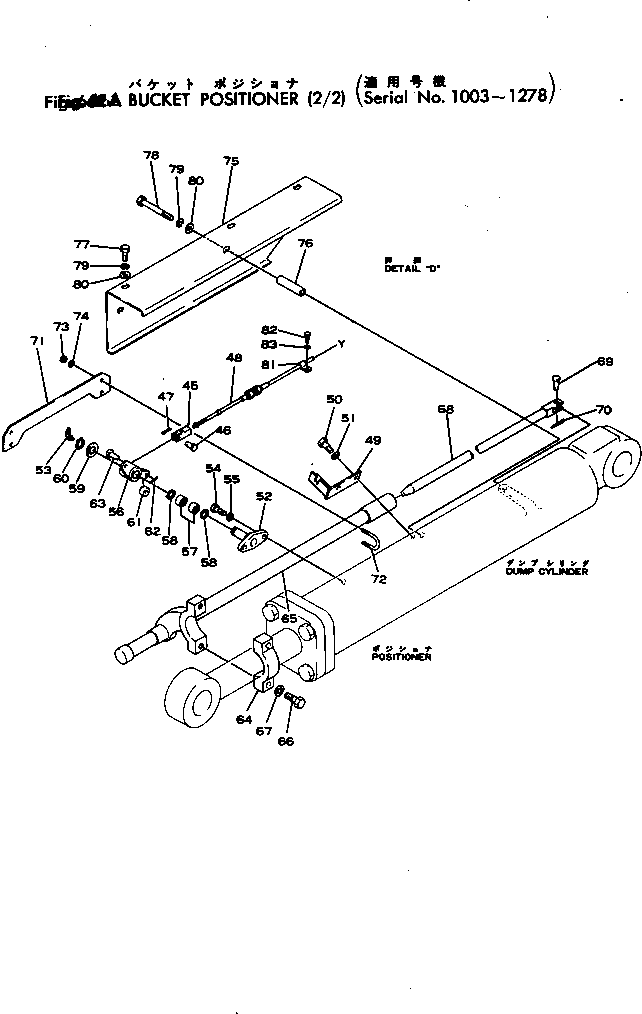

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | ▩155-61-13512 | BRACKET | 1 | SN: 1003-1278 |
|||
| ? | (155-61-13513{155-61-13531 ?} | ||||||
| ? | 155-61-13541) | ||||||
| ? | 01010-31230 | BOLT | 2 | SN: 1003-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 2 | SN: 1003-@ |
|||
| ? | 155-61-13520 | SHAFT | 1 | SN: 1003-@ |
|||
| ? | 155-61-13550 | LEVER | 1 | SN: 1003-@ |
|||
| ? | 01580-00806 | NUT | 1 | SN: 1003-@ |
|||
| ? | 155-61-13530 | LEVER | 1 | SN: 1003-1278 |
|||
| ? | 04025-00520 | PIN,ROLL | 1 | SN: 1003-@ |
|||
| ? | 155-61-13540 | LEVER | 1 | SN: 1003-1278 |
|||
| ? | 155-61-14210 | HOOK,SPRING | 1 | SN: 1003-@ |
|||
| ? | 01580-00403 | NUT | 2 | SN: 1003-@ |
|||
| ? | 145-43-36550 | SPRING | 1 | SN: 1003-@ |
|||
| ? | 145-43-36560 | ROD | 1 | SN: 1003-@ |
|||
| ? | 01640-00610 | WASHER | 1 | SN: 1003-@ |
|||
| ? | 04050-01610 | PIN,COTTER | 1 | SN: 1003-@ |
|||
| ? | 145-43-36570 | JOINT | 1 | SN: 1003-@ |
|||
| ? | 145-60-12381 | SPRING | 1 | SN: 1003-@ |
|||
| ? | 01642-00608 | WASHER | 1 | SN: 1003-@ |
|||
| ? | 01580-00605 | NUT | 2 | SN: 1003-@ |
|||
| ? | 04216-00500 | JOINT | 1 | SN: 1003-@ |
|||
| ? | 01641-00608 | WASHER | 1 | SN: 1003-@ |
|||
| ? | 04050-01610 | PIN,COTTER | 1 | SN: 1003-@ |
|||
| ? | 155-61-13562 | CABLE | 1 | SN: 1003-@ |
|||
| ? | 155-61-14230 | YOKE | 1 | SN: 1003-@ |
|||
| ? | (☒155-43-15350) | YOKE | 1 | SN: (1003-1134) |
|||
| ? | 04205-00822 | PIN,CLEVIS | 1 | SN: 1003-@ |
|||
| ? | 04050-02012 | PIN,COTTER | 1 | SN: 1003-@ |
|||
| ? | 145-43-36620 | LEVER | 1 | SN: 1003-@ |
|||
| ? | 04010-00416 | KEY | 1 | SN: 1003-@ |
|||
| ? | 01010-30825 | BOLT | 1 | SN: 1003-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 1 | SN: 1003-@ |
|||
| ? | 155-61-13570 | LEVER | 1 | SN: 1003-@ |
|||
| ? | 125-60-13230 | ROLLER | 1 | SN: 1003-@ |
|||
| ? | 04205-01028 | PIN,CLEVIS | 1 | SN: 1003-@ |
|||
| ? | 04050-03015 | PIN,COTTER | 1 | SN: 1003-@ |
|||
| ? | 155-61-00070 | BRACKET ASS'Y | 1 | SN: 1003-@ |
|||
| ? | ☆ | • BRACKET | 1 | SN: 1003-@ |
|||
| ? | 07020-00675 | • FITTING,GREASE | 1 | SN: 1003-@ |
|||
| ? | 01010-31025 | BOLT | 2 | SN: 1003-@ |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 1003-@ |
|||
| ? | 141-60-14570 | SPRING | 1 | SN: 1003-@ |
|||
| ? | 155-61-13821 | DETENT | 1 | SN: 1003-@ |
|||
| ? | 06120-02016 | BEARING | 1 | SN: 1003-@ |
|||
| ? | 06122-02004 | SEAL,DUST | 2 | SN: 1003-@ |
|||
| ? | 01640-02032 | WASHER | 1 | SN: 1003-@ |
|||
| ? | 04064-02012 | RING,SNAP | 1 | SN: 1003-@ |
|||
| ? | 155-43-15350 | YOKE | 2 | SN: 1003-@ |
|||
| ? | 04205-01022 | PIN,CLEVIS | 2 | SN: 1003-@ |
|||
| ? | 04050-03015 | PIN,COTTER | 2 | SN: 1003-@ |
|||
| ? | 155-61-13842 | CABLE,POSITIONER | 1 | SN: 1003-1278 |
|||
| ? | 155-61-13920 | BRACKET | 1 | SN: 1003-@ |
|||
| ? | 01010-31225 | BOLT | 2 | SN: 1003-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 2 | SN: 1003-@ |
|||
| ? | 155-61-00080 | BRACKET ASS'Y | 1 | SN: 1003-1278 |
|||
| ? | ☆ | • BRACKET | 1 | SN: 1003-1278 |
|||
| ? | 07020-00000 | • FITTING,GREASE | 1 | SN: 1003-@ |
|||
| ? | 01010-31230 | BOLT | 2 | SN: 1003-1278 |
|||
| ? | 01602-01236 | WASHER,SPRING | 2 | SN: 1003-1278 |
|||
| ? | 155-61-13852 | LEVER | 1 | SN: 1003-1278 |
|||
| ? | 06120-02016 | BEARING | 2 | SN: 1003-1278 |
|||
| ? | 06122-02004 | SEAL,DUST | 2 | SN: 1003-@ |
|||
| ? | 01640-02032 | WASHER | 1 | SN: 1003-1278 |
|||
| ? | 04064-02012 | RING,SNAP | 1 | SN: 1003-1278 |
|||
| ? | 155-61-13311 | ROLLER | 1 | SN: 1003-1278 |
|||
| ? | 04050-03015 | PIN,COTTER | 1 | SN: 1003-1278 |
|||
| ? | 04025-01032 | PIN,CLEVIS | 1 | SN: 1003-1278 |
|||
| ? | 155-61-13940 | CLIP | 1 | SN: 1003-1278 |
|||
| ? | 155-61-13884 | GUIDE | 1 | SN: 1063-1278 |
|||
| ? | □155-61-13883 | GUIDE | 1 | SN: 1003-1062 |
|||
| ? | 01010-31460 | BOLT | 2 | SN: 1003-1278 |
|||
| ? | 01602-01442 | WASHER,SPRING | 2 | SN: 1003-@ |
|||
| ? | 155-43-18350 | ROD | 1 | SN: 1003-1278 |
|||
| ? | 04205-01235 | PIN,CLEVIS | 1 | SN: 1003-1278 |
|||
| ? | 04050-03020 | PIN,COTTER | 1 | SN: 1003-1278 |
|||
| ? | 155-43-18380 | PLATE | 1 | SN: 1003-1278 |
|||
| ? | 125-60-13661 | CLIP | 2 | SN: 1003-1278 |
|||
| ? | 01598-00608 | NUT | 4 | SN: 1003-1278 |
|||
| ? | 01641-00608 | WASHER | 4 | SN: 1003-1278 |
|||
| ? | 155-43-18391 | COVER | 1 | SN: 1063-1278 |
|||
| ? | 155-43-18390 | COVER | 1 | SN: 1003-1062 |
|||
| ? | 155-43-18410 | SPACER | 3 | SN: 1003-1278 |
|||
| ? | 01010-31225 | BOLT | 3 | SN: 1003-1278 |
|||
| ? | 01011-31205 | BOLT | 3 | SN: 1003-1278 |
|||
| ? | 01602-01236 | WASHER,SPRING | 6 | SN: 1003-1278 |
|||
| ? | 01643-01232 | WASHER | 6 | SN: 1003-1278 |
|||
| ? | 08036-11414 | CLIP | 2 | SN: 1075-1278 |
|||
| ? | 01010-31020 | BOLT | 1 | SN: 1075-1278 |
|||
| ? | 01602-01030 | WASHER,SPRING | 1 | SN: 1075-1278 |
