| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

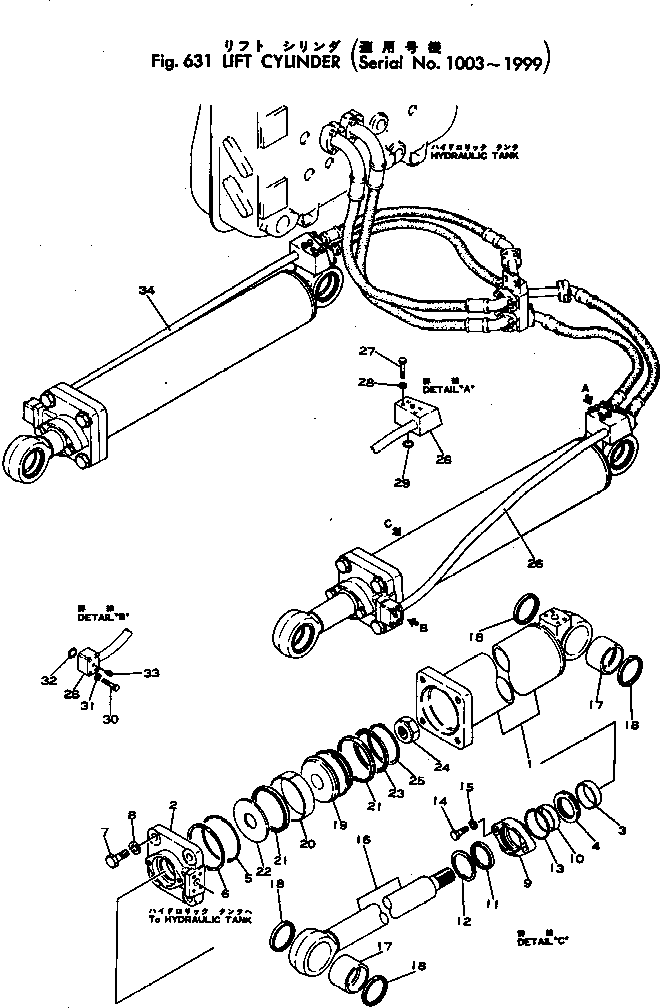

| ? | 155-63-22103 | LIFT CYLINDER ASS'Y,L.H. | 1 | SN: 1063- |
|||
| ? | 155-63-22101 | LIFT CYLINDER ASS'Y,L.H. | 1 | SN: 1003-1062 |
|||
| ? | 155-63-22203 | LIFT CYLINDER ASS'Y,R.H. | 1 | SN: 1063- |
|||
| ? | 155-63-22201 | LIFT CYLINDER ASS'Y,R.H. | 1 | SN: 1003-1062 |
|||
| ? | 155-63-22142 | • CYLINDER,L.H. | 1 | SN: 1003- |
|||
| ? | 155-63-22242 | • CYLINDER,R.H. | 1 | SN: 1003- |
|||
| ? | 155-63-22131 | • HEAD,CYLINDER | 1 | SN: 1003- |
|||
| ? | (☒155-63-22130) | • HEAD,CYLINDER | 1 | SN: (1003-1062) |
|||
| ? | 07177-09035 | • BUSHING | 1 | SN: 1003- |
|||
| ? | 154-63-52173 | • U-PACKING | 1 | SN: 1003- |
|||
| ? | (☒154-63-52171) | • U-PACKING | 1 | SN: (1003-1278) |
|||
| ? | 07000-15170 | • O-RING | 1 | SN: 1003- |
|||
| ? | 07146-05172 | • RING,BACK-UP | 1 | SN: 1003- |
|||
| ? | 01010-82780 | • BOLT | 1 | SN: 1279- |
|||
| ? | □01010-62780 | • BOLT | 4 | SN: 1003-1278 |
|||
| ? | 01602-22783 | • WASHER,SPRING | 4 | SN: 1279- |
|||
| ? | □01602-02783 | • WASHER,SPRING | 4 | SN: 1003-1278 |
|||
| ? | 07178-09050 | • GLAND | 1 | SN: 1003- |
|||
| ? | 07177-09020 | • BUSHING | 1 | SN: 1003- |
|||
| ? | 07016-00908 | • SEAL,DUST | 1 | SN: 1003- |
|||
| ? | 07179-00113 | • RING,SNAP | 1 | SN: 1003- |
|||
| ? | 07000-03110 | • O-RING | 1 | SN: 1279- |
|||
| ? | □07000-13110 | • O-RING | 1 | SN: 1003-1278 |
|||
| ? | 01010-51855 | • BOLT | 2 | SN: 1063- |
|||
| ? | 01010-31860 | • BOLT | 2 | SN: 1003-1062 |
|||
| ? | 01602-21854 | • WASHER,SPRING | 2 | SN: 1279- |
|||
| ? | □01602-01854 | • WASHER,SPRING | 2 | SN: 1003-1278 |
|||
| ? | 155-63-22122 | • ROD,PISTON | 1 | SN: 1003- |
|||
| ? | (☒155-63-22121) | • ROD,PISTON | 1 | SN: (1003-1062) |
|||
| ? | 155-63-22180 | • BUSHING | 2 | SN: 1003- |
|||
| ? | 07145-00095 | • SEAL,DUST | 4 | SN: 1003- |
|||
| ? | 175-63-42171 | • PISTON | 1 | SN: 1063- |
|||
| ? | □155-63-22280 | • PISTON | 1 | SN: 1003-1062 |
|||
| ? | 07155-01845 | • RING,WEAR | 1 | SN: 1003- |
|||
| ? | 155-63-22191 | • U-PACKING | 2 | SN: 1003- |
|||
| ? | (☒155-63-22190) | • U-PACKING | 2 | SN: (1003-1278) |
|||
| ? | 155-63-22270 | • RETAINER | 1 | SN: 1003- |
|||
| ? | 155-63-22370 | • RETAINER | 1 | SN: 1003- |
|||
| ? | 07165-15860 | • NUT,NYLON | 1 | SN: 1279- |
|||
| ? | □175-63-42381 | • NUT,NYLON | 1 | SN: 1063-1278 |
|||
| ? | □07165-25860 | • NUT,NYLON | 1 | SN: 1003-1062 |
|||
| ? | 04069-01552 | • RING,SNAP | 1 | SN: 1003- |
|||
| ? | 155-63-22380 | TUBE,L.H. | 1 | SN: 1011- |
|||
| ? | 155-61-11223 | TUBE,L.H. | 1 | SN: 1008-1010 |
|||
| ? | 155-63-22380 | TUBE,L.H. | 1 | SN: 1007-1007 |
|||
| ? | 155-61-11223 | TUBE,L.H. | 1 | SN: 1005-1006 |
|||
| ? | 155-63-22380 | TUBE,L.H. | 1 | SN: 1004-1004 |
|||
| ? | 155-61-11223 | TUBE,L.H. | 1 | SN: 1003-1003 |
|||
| ? | 01010-31095 | BOLT | 8 | SN: 1003- |
|||
| ? | 01602-01030 | WASHER,SPRING | 8 | SN: 1003- |
|||
| ? | 07000-13038 | O-RING | 2 | SN: 1003- |
|||
| ? | 01010-51065 | BOLT | 8 | SN: 1279- |
|||
| ? | □01010-31065 | BOLT | 8 | SN: 1003-1278 |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 1279- |
|||
| ? | □01602-01030 | WASHER,SPRING | 8 | SN: 1003-1278 |
|||
| ? | 07000-13038 | O-RING | 2 | SN: 1003- |
|||
| ? | 07042-00108 | PLUG | 4 | SN: 1003- |
|||
| ? | 155-63-22390 | TUBE,R.H. | 1 | SN: 1011- |
|||
| ? | 155-61-11233 | TUBE,R.H. | 1 | SN: 1008-1010 |
|||
| ? | 155-63-22390 | TUBE,R.H. | 1 | SN: 1007-1007 |
|||
| ? | 155-61-11233 | TUBE,R.H. | 1 | SN: 1005-1006 |
|||
| ? | 155-63-22390 | TUBE,R.H. | 1 | SN: 1004-1004 |
|||
| ? | 155-61-11233 | TUBE,R.H. | 1 | SN: 1003-1003 |
