| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

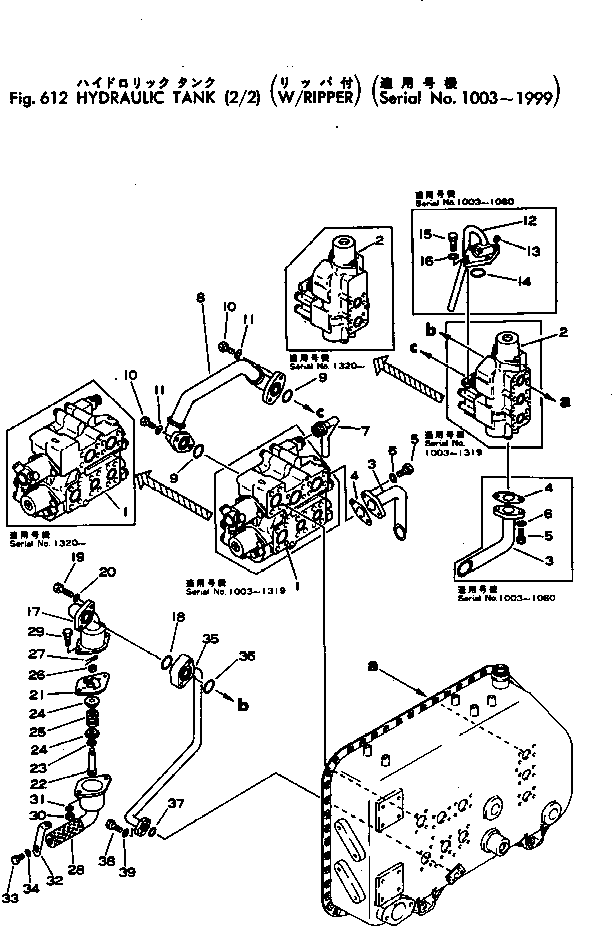

| ? | (155-60-12007) | TANK ASS'Y | 1 | SN: 1320- |
|||
| ? | □155-60-12006 | TANK ASS'Y | 1 | SN: 1279-1319 |
|||
| ? | (155-60-12005) | TANK ASS'Y | 1 | SN: 1003-1278 |
|||
| ? | 701-43-15004 | • VALVE ASS'Y,BUCKET | 1 | SN: 1320- |
|||
| ? | 701-43-15003 | • VALVE ASS'Y,BUCKET | 1 | SN: 1279-1319 |
|||
| ? | □701-43-15002 | • VALVE ASS'Y,BUCKET | 1 | SN: 1003-1278 |
|||
| ? | (701-41-15002) | • VALVE ASS'Y,RIPPER | 1 | SN: 1061- |
|||
| ? | (701-41-15000) | • VALVE ASS'Y,RIPPER | 1 | SN: 1003-1060 |
|||
| ? | 155-60-12170 | • TUBE | 1 | SN: 1061- |
|||
| ? | 155-60-12170 | • TUBE | 2 | SN: 1003-1060 |
|||
| ? | 195-60-16450 | • GASKET | 1 | SN: 1061- |
|||
| ? | 195-60-16450 | • GASKET | 2 | SN: 1003-1060 |
|||
| ? | 01010-31235 | • BOLT | 2 | SN: 1061- |
|||
| ? | 01010-31235 | • BOLT | 4 | SN: 1003-1060 |
|||
| ? | 01602-01236 | • WASHER | 2 | SN: 1061- |
|||
| ? | 01602-01236 | • WASHER,SPRING | 4 | SN: 1003-1060 |
|||
| ? | 155-60-12350 | • BAFFLE | 1 | SN: 1003- |
|||
| ? | 155-60-12181 | • TUBE | 1 | SN: 1003- |
|||
| ? | (☒155-60-12180) | • TUBE | 1 | SN: (1003-.) |
|||
| ? | 07000-13050 | • O-RING (KIT) | 2 | SN: 1003- |
|||
| ? | 01010-31445 | • BOLT | 4 | SN: 1003- |
|||
| ? | 01602-01442 | • WASHER,SPRING | 4 | SN: 1003- |
|||
| ? | 155-60-12340 | • BAFFLE | 1 | SN: 1003-1060 |
|||
| ? | 07043-00211 | • PLUG | 1 | SN: 1003-1060 |
|||
| ? | 07000-03050 | • O-RING (KIT) | 1 | SN: 1003-1060 |
|||
| ? | 01010-31235 | • BOLT | 4 | SN: 1003-1060 |
|||
| ? | 01602-01236 | • WASHER | 4 | SN: 1003-1060 |
|||
| ? | 155-60-12191 | • TUBE | 1 | SN: 1003- |
|||
| ? | 07000-03050 | • O-RING (KIT) | 1 | SN: 1003- |
|||
| ? | 01010-31485 | • BOLT | 2 | SN: 1003- |
|||
| ? | 01602-01442 | • WASHER,SPRING | 2 | SN: 1003- |
|||
| ? | 155-60-12230 | • FLANGE | 1 | SN: 1003- |
|||
| ? | 145-60-17191 | • BOLT | 1 | SN: 1003- |
|||
| ? | 01640-01223 | • WASHER | 1 | SN: 1003- |
|||
| ? | 145-60-17170 | • VALVE,BYPASS | 2 | SN: 1003- |
|||
| ? | 135-60-17110 | • SPRING | 1 | SN: 1003- |
|||
| ? | 01590-00809 | • NUT | 1 | SN: 1003- |
|||
| ? | 04050-02015 | • PIN,COTTER | 1 | SN: 1003- |
|||
| ? | 155-60-12221 | • BAFFLE AND CASE | 1 | SN: 1003- |
|||
| ? | 01010-31245 | • BOLT | 2 | SN: 1003- |
|||
| ? | 01580-01210 | • NUT | 2 | SN: 1003- |
|||
| ? | 01602-01236 | • WASHER,SPRING | 2 | SN: 1003- |
|||
| ? | 155-60-12370 | • CLAMP | 1 | SN: 1061- |
|||
| ? | 155-60-12240 | • CLAMP | 1 | SN: 1003-1060 |
|||
| ? | 01010-31016 | • BOLT | 1 | SN: 1003- |
|||
| ? | 01602-01030 | • WASHER,SPRING | 1 | SN: 1003- |
|||
| ? | 155-60-12251 | • TUBE | 1 | SN: 1003- |
|||
| ? | 07000-03050 | • O-RING (KIT) | 1 | SN: 1003- |
|||
| ? | 07000-03030 | • O-RING (KIT) | 1 | SN: 1003- |
|||
| ? | 01010-31030 | • BOLT | 2 | SN: 1003- |
|||
| ? | 01602-01030 | • WASHER,SPRING | 2 | SN: 1003- |
