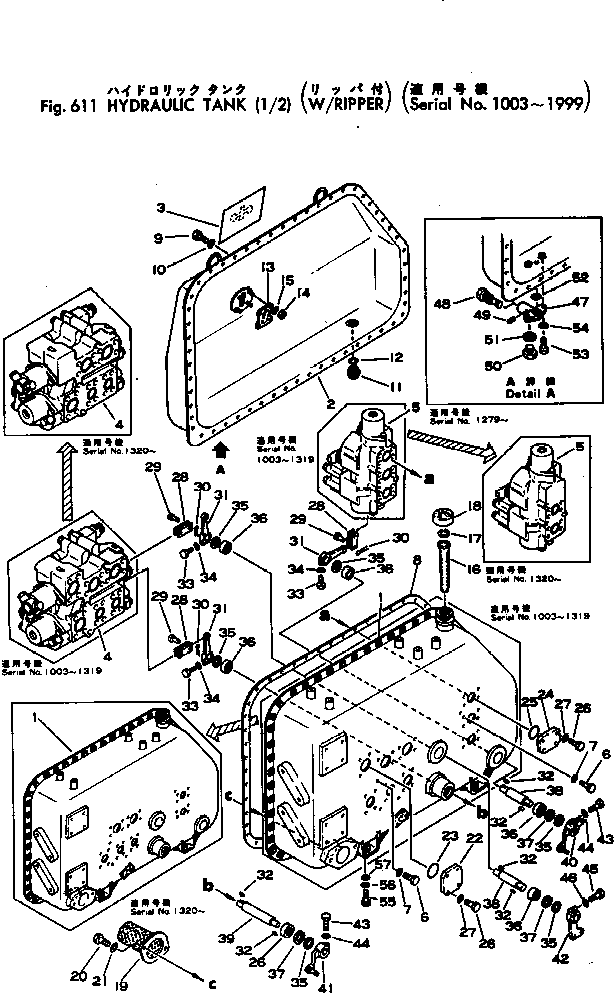

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 155-60-12007 | TANK ASS'Y | 1 | SN: 1320- |
|||
| ? | □155-60-12006 | TANK ASS'Y | 1 | SN: 1279-1319 |
|||
| ? | 155-60-12005 | TANK ASS'Y | 1 | SN: 1003-1278 |
|||
| ? | 155-60-01016 | • TANK ASS'Y | 1 | SN: 1320- |
|||
| ? | 155-60-01015 | • TANK ASS'Y | 1 | SN: 1279-1319 |
|||
| ? | 155-60-01014 | • TANK ASS'Y | 1 | SN: 1003-1278 |
|||
| ? | 155-60-12117 | • • TANK,INNER | 1 | SN: 2000- |
|||
| ? | □155-60-12116 | • • TANK,INNER | 1 | SN: 1320-1999 |
|||
| ? | 155-60-12115 | • • TANK,INNER | 1 | SN: 1003-1319 |
|||
| ? | (☒155-60-12113) | • • TANK,INNER | 1 | SN: (1003-1061) |
|||
| ? | 175-60-27122 | • • TANK,OUTER | 1 | SN: 1279- |
|||
| ? | 175-60-27121 | • • TANK,OUTER | 1 | SN: 1061-1278 |
|||
| ? | □175-60-27120 | • • TANK,OUTER | 1 | SN: 1003-1060 |
|||
| ? | 09691-05953 | • • PLATE ? MARK | 1 | SN: 1003- |
|||
| ? | 701-43-15004 | • VALVE ASS'Y | 1 | SN: 1320- |
|||
| ? | 701-43-15003 | • VALVE ASS'Y | 1 | SN: 1279-1319 |
|||
| ? | □701-43-15002 | • VALVE ASS'Y | 1 | SN: 1003-1278 |
|||
| ? | 701-41-15002 | • VALVE ASS'Y | 1 | SN: 1061- |
|||
| ? | 701-41-15000 | • VALVE ASS'Y | 1 | SN: 1003-1060 |
|||
| ? | 01010-31230 | • BOLT | 5 | SN: 1003- |
|||
| ? | 01602-01236 | • WASHER,SPRING | 5 | SN: 1003- |
|||
| ? | 175-60-27132 | • GASKET | 1 | SN: .- |
|||
| ? | □175-60-27130 | • GASKET | 1 | SN: 1003-. |
|||
| ? | 01010-51025 | • BOLT | 55 | SN: 1003- |
|||
| ? | 01602-21030 | • WASHER,SPRING | 55 | SN: 1003- |
|||
| ? | 07044-13620 | • PLUG,DRAIN | 1 | SN: 1003- |
|||
| ? | 07002-03634 | • O-RING | 1 | SN: .- |
|||
| ? | □07000-03032 | • O-RING | 1 | SN: 1003-. |
|||
| ? | 155-60-12300 | • LEVEL GAUGE ASS'Y | 1 | SN: 1003- |
|||
| ? | 01580-01008 | • NUT | 4 | SN: 1003- |
|||
| ? | 01602-01030 | • WASHER,SPRING | 4 | SN: 1003- |
|||
| ? | 07056-10045 | • STRAINER,OIL FILLER | 1 | SN: .- |
|||
| ? | □130-60-13260 | • STRAINER,OIL FILLER | 1 | SN: 1003-. |
|||
| ? | 150-60-22410 | • RING,RETAINING | 1 | SN: 1003-. |
|||
| ? | 07051-00000 | • CAP,OIL FILLER | 1 | SN: 1003- |
|||
| ? | 07051-00003 | • • GASKET | 1 | SN: 1003- |
|||
| ? | 155-60-12362 | • STRAINER | 1 | SN: 1003- |
|||
| ? | 01010-31440 | • BOLT | 2 | SN: 1003- |
|||
| ? | 01602-01442 | • WASHER,SPRING | 2 | SN: 1003- |
|||
| ? | 07378-02071 | • FLANGE,BLIND | 1 | SN: 1003-1319 |
|||
| ? | 07000-12060 | • O-RING | 1 | SN: 1003-1319 |
|||
| ? | 07378-01460 | • FLANGE,BLIND | 2 | SN: 1320- |
|||
| ? | 07378-01460 | • FLANGE,BLIND | 3 | SN: 1003-1319 |
|||
| ? | 07000-13048 | • O-RING | 2 | SN: 1320- |
|||
| ? | 07000-13048 | • O-RING | 3 | SN: 1003-1319 |
|||
| ? | 01010-31240 | • BOLT | 8 | SN: 1320- |
|||
| ? | 01010-31240 | • BOLT | 16 | SN: 1003-1319 |
|||
| ? | 01602-01236 | • WASHER,SPRING | 8 | SN: 1320- |
|||
| ? | 01602-01236 | • WASHER,SPRING | 16 | SN: 1003-1319 |
|||
| ? | 141-60-32170 | • YOKE | 6 | SN: 1061- |
|||
| ? | □04213-01040 | • YOKE | 3 | SN: 1003-1060 |
|||
| ? | 04205-01028 | • PIN,CLEVIS | 6 | SN: 1003- |
|||
| ? | 04050-03015 | • PIN,COTTER | 6 | SN: 1003- |
|||
| ? | 04240-10207 | • LEVER | 3 | SN: 1003- |
|||
| ? | 04010-00509 | • KEY | 6 | SN: 1003- |
|||
| ? | 01010-30830 | • BOLT | 3 | SN: 1003- |
|||
| ? | 01602-00825 | • WASHER,SPRING | 3 | SN: 1003- |
|||
| ? | 01640-22440 | • WASHER | 6 | SN: 1003- |
|||
| ? | 06120-02520 | • BEARING | 6 | SN: 1003- |
|||
| ? | 154-60-12370 | • SEAL,DUST | 3 | SN: 1003- |
|||
| ? | 175-60-27290 | • SHAFT,LEVER | 2 | SN: 1003- |
|||
| ? | 155-60-12130 | • SHAFT,LEVER | 1 | SN: 1003- |
|||
| ? | 155-60-12142 | • LEVER | 1 | SN: 1003- |
|||
| ? | 155-60-12152 | • LEVER | 1 | SN: 1003- |
|||
| ? | 155-60-12161 | • LEVER | 1 | SN: 1061- |
|||
| ? | □155-60-12160 | • LEVER | 1 | SN: 1003-1060 |
|||
| ? | 01010-30830 | • BOLT | 2 | SN: 1003- |
|||
| ? | 01602-00825 | • WASHER,SPRING | 2 | SN: 1003- |
|||
| ? | 01010-31040 | • BOLT | 1 | SN: 1003- |
|||
| ? | 01602-01030 | • WASHER,SPRING | 1 | SN: 1003- |
|||
| ? | 155-60-12500 | VALVE ASS'Y | 1 | SN: 1279- |
|||
| ? | 155-60-12510 | • BODY | 1 | SN: 1279- |
|||
| ? | 155-60-12520 | • VALVE | 1 | SN: 1279- |
|||
| ? | 04025-00532 | • PIN,ROLL | 1 | SN: 1279- |
|||
| ? | 07040-12412 | • PLUG | 1 | SN: 1279- |
|||
| ? | 07005-02416 | • GASKET,SEAL | 1 | SN: 1279- |
|||
| ? | 07000-03025 | O-RING | 1 | SN: 1279- |
|||
| ? | 01010-31025 | BOLT | 2 | SN: 1279- |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 1279- |
|||
| ? | 01010-31665 | BOLT | 4 | SN: 1003- |
|||
| ? | 01602-01648 | WASHER,SPRING | 4 | SN: 1003- |
|||
| ? | 01643-01645 | WASHER | 4 | SN: 1003- |
