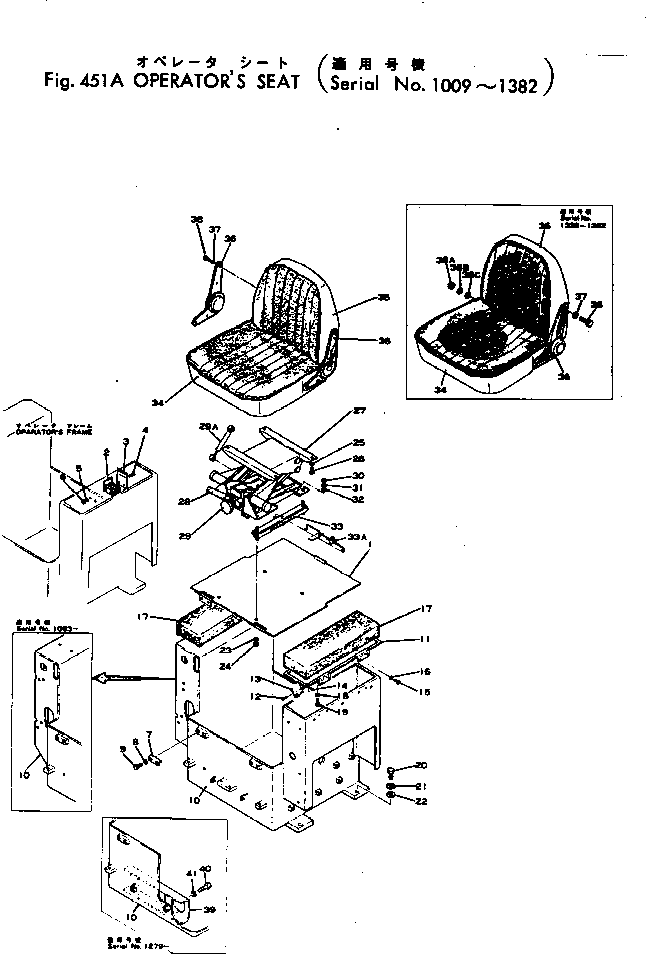

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 155-57-12120 | PLATE,MOUNTING | 1 | SN: 1009-1382 |
|||
| ? | 154-57-11240 | SHIM ? 0.5MM | 4 | SN: 1009-1382 |
|||
| ? | 154-57-11250 | SPRING,PLATE | 1 | SN: 1009-1382 |
|||
| ? | 01010-31020 | BOLT | 2 | SN: 1009-1382 |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 1009-1382 |
|||
| ? | 01580-01008 | NUT | 2 | SN: 1009-1382 |
|||
| ? | 140-57-12190 | PLATE,HINGE | 2 | SN: 1003-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 1003-@ |
|||
| ? | 01010-31230 | BOLT | 4 | SN: 1003-@ |
|||
| ? | 155-57-12111 | FRAME | 1 | SN: 1063-1382 |
|||
| ? | 155-57-12110 | FRAME | 1 | SN: 1009-1062 |
|||
| ? | 155-57-11121 | COVER | 1 | SN: 1003-@ |
|||
| ? | 04205-00622 | PIN | 2 | SN: 1279-@ |
|||
| ? | 04205-00616 | PIN | 2 | SN: 1003-1278 |
|||
| ? | 131-54-11150 | SPRING | 1 | SN: 1003-@ |
|||
| ? | 04050-01610 | PIN,COTTER | 2 | SN: 1003-@ |
|||
| ? | 01010-30816 | BOLT | 4 | SN: 1003-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 4 | SN: 1003-@ |
|||
| ? | 155-57-11130 | ARM,ARM | 2 | SN: 1003-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 8 | SN: 1003-@ |
|||
| ? | 01010-30825 | BOLT | 8 | SN: 1003-@ |
|||
| ? | 01010-31850 | BOLT | 4 | SN: 1003-@ |
|||
| ? | 01602-01854 | WASHER,SPRING | 4 | SN: 1003-@ |
|||
| ? | 01643-01845 | WASHER | 4 | SN: 1003-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 1009-@ |
|||
| ? | 01580-01210 | NUT | 4 | SN: 1009-@ |
|||
| ? | 155-57-12103 | OPERATOR'S SEAT A. | 1 | SN: 1383-@ |
|||
| ? | □155-57-12102 | OPERATOR'S SEAT A. | 1 | SN: 1332-1382 |
|||
| ? | □155-57-12100 | OPERATOR'S SEAT A. | 1 | SN: 1008-1331 |
|||
| ? | 01602-01030 | • WASHER | 4 | SN: 1009-@ |
|||
| ? | 01010-31020 | • BOLT | 4 | SN: 1009-@ |
|||
| ? | 155-57-12141 | • SUSPENSION ASS'Y | 1 | SN: 1383-@ |
|||
| ? | □155-57-12140 | • SUSPENSION ASS'Y | 1 | SN: 1009-1382 |
|||
| ? | 155-57-12210 | • • HANDLE ASS'Y | 1 | SN: 1009-@ |
|||
| ? | 155-57-12220 | • • KNOB | 1 | SN: 1009-@ |
|||
| ? | 155-57-12250 | • • DAMPER | 1 | SN: 1009-@ |
|||
| ? | 01580-01210 | • NUT | 4 | SN: 1009-@ |
|||
| ? | 01602-01236 | • WASHER,SPRING | 4 | SN: 1009-@ |
|||
| ? | 01640-01223 | • WASHER | 4 | SN: 1009-@ |
|||
| ? | 155-57-12150 | • ADJUSTER,SEAT | 2 | SN: 1009-@ |
|||
| ? | 155-57-12260 | • LATCH WIRE ASS'Y | 1 | SN: 1009-@ |
|||
| ? | 155-57-12162 | • CUSHION ASS'Y,SEAT | 1 | SN: 1332-1382 |
|||
| ? | 155-57-12160 | • CUSHION ASS'Y,SEAT | 1 | SN: 1009-1331 |
|||
| ? | 155-57-12171 | • CUSHION,BACK | 1 | SN: 1332-@ |
|||
| ? | 155-57-12170 | • CUSHION,BACK | 1 | SN: 1009-1331 |
|||
| ? | 155-57-12181 | • LEVER,L.H. | 1 | SN: 1332-@ |
|||
| ? | 155-57-12180 | • RECLINING DEVICE,L.H. | 1 | SN: 1009-1331 |
|||
| ? | 155-57-12190 | • RECLINING DEVICE,R.H. | 1 | SN: 1009-1331 |
|||
| ? | 01602-21030 | • WASHER,SPRING | 4 | SN: 1332-@ |
|||
| ? | 01602-21030 | • WASHER,SPRING | 8 | SN: 1009-1331 |
|||
| ? | 07372-01030 | • BOLT | 4 | SN: 1332-@ |
|||
| ? | 01010-51020 | • BOLT | 8 | SN: 1009-1331 |
|||
| ? | 01580-01008 | • NUT | 1 | SN: 1332-@ |
|||
| ? | 01602-01030 | • WASHER,SPRING | 1 | SN: 1332-@ |
|||
| ? | 01643-31032 | • WASHER | 1 | SN: 1332-@ |
|||
| ? | 155-57-12230 | SPACER | 2 | SN: 1279-@ |
|||
| ? | 01010-31225 | BOLT | 4 | SN: 1279-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 1279-@ |
