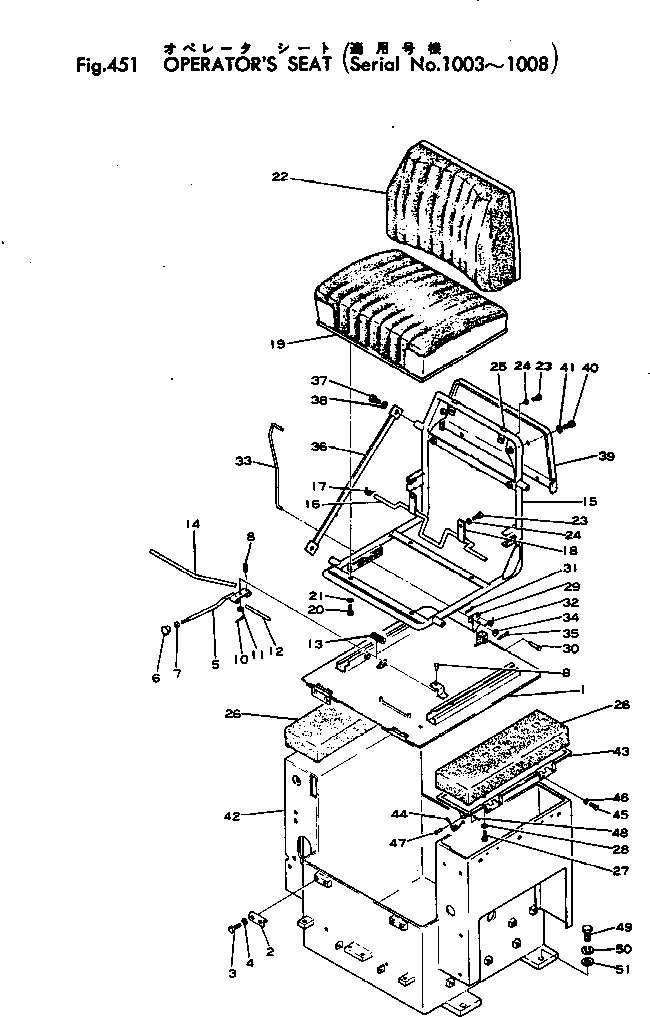

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 155-57-11151 | PLATE,MOUNTING | 1 | SN: 1003-1008 |
|||
| ? | 140-57-12190 | PLATE,HINGE | 2 | SN: 1003-@ |
|||
| ? | 01010-31230 | BOLT | 4 | SN: 1003-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 1003-@ |
|||
| ? | 155-57-11160 | LEVER | 1 | SN: 1003-1008 |
|||
| ? | 09304-00835 | KNOB | 1 | SN: 1003-1008 |
|||
| ? | 01580-00806 | NUT | 1 | SN: 1003-1008 |
|||
| ? | 04025-00420 | PIN,ROLL | 2 | SN: 1003-1008 |
|||
| ? | 145-57-12320 | PIN | 1 | SN: 1003-1008 |
|||
| ? | 04050-02012 | PIN,COTTER | 1 | SN: 1003-1008 |
|||
| ? | 01641-00812 | WASHER | 1 | SN: 1003-1008 |
|||
| ? | 154-57-11181 | ROD,SHORT | 1 | SN: 1003-1008 |
|||
| ? | 145-57-12270 | SPRING | 1 | SN: 1003-1008 |
|||
| ? | 154-57-11171 | ROD,LONG | 1 | SN: 1003-1008 |
|||
| ? | 155-57-11170 | FRAME,OPERATOR'S SEAT | 1 | SN: 1003-1008 |
|||
| ? | 155-857-1190 | ROD | 1 | SN: 1003-1008 |
|||
| ? | 150-57-14140 | SPRING | 1 | SN: 1003-1008 |
|||
| ? | 145-57-12230 | PLATE,CLIP | 2 | SN: 1003-1008 |
|||
| ? | 09400-30000 | CUSHION,SEAT | 1 | SN: 1003-1008 |
|||
| ? | 01010-30825 | BOLT | 4 | SN: 1003-1008 |
|||
| ? | 01602-00825 | WASHER,SPRING | 4 | SN: 1003-1008 |
|||
| ? | 09401-30000 | SEAT,BACK | 1 | SN: 1003-1008 |
|||
| ? | 01010-30830 | BOLT | 4 | SN: 1003-1008 |
|||
| ? | 01602-00825 | WASHER,SPRING | 4 | SN: 1003-1008 |
|||
| ? | 145-57-12220 | CLIP | 2 | SN: 1003-1008 |
|||
| ? | 155-57-11130 | ARM,ARM | 2 | SN: 1003-@ |
|||
| ? | 01010-30825 | BOLT | 8 | SN: 1003-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 8 | SN: 1003-@ |
|||
| ? | 135-57-12191 | PLATE,OPERATOR'S SEAT | 1 | SN: 1003-1008 |
|||
| ? | 135-43-16270 | PIN | 1 | SN: 1003-1008 |
|||
| ? | 04050-03015 | PIN,COTTER | 1 | SN: 1003-1008 |
|||
| ? | 135-57-12230 | SPRING | 1 | SN: 1003-1008 |
|||
| ? | 154-57-21160 | ROD | 1 | SN: 1003-1008 |
|||
| ? | 01640-00610 | WASHER | 1 | SN: 1003-1008 |
|||
| ? | 04050-01612 | PIN,COTTER | 1 | SN: 1003-1008 |
|||
| ? | 155-57-11180 | TUBE,SUPPORT | 2 | SN: 1003-1008 |
|||
| ? | 01010-31225 | BOLT | 4 | SN: 1003-1008 |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 1003-1008 |
|||
| ? | 155-57-11190 | COVER,REAR | 1 | SN: 1003-1008 |
|||
| ? | 01010-31225 | BOLT | 4 | SN: 1003-1008 |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 1003-1008 |
|||
| ? | 155-57-11113 | FRAME | 1 | SN: 1003-1008 |
|||
| ? | 155-57-11121 | COVER,L.H. | 1 | SN: 1003-@ |
|||
| ? | 131-54-11150 | SPRING | 1 | SN: 1003-@ |
|||
| ? | 01010-30816 | BOLT | 4 | SN: 1003-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 4 | SN: 1003-@ |
|||
| ? | 04205-00616 | PIN | 2 | SN: 1003-@ |
|||
| ? | 04050-01610 | PIN,COTTER | 2 | SN: 1003-@ |
|||
| ? | 01010-31850 | BOLT | 4 | SN: 1003-@ |
|||
| ? | 01602-01854 | WASHER,SPRING | 4 | SN: 1003-@ |
|||
| ? | 01643-01845 | WASHER | 4 | SN: 1003-@ |
