Содержание Crawler Loaders Komatsu D95S-1 S/N 1003-UP(d95s-1r)

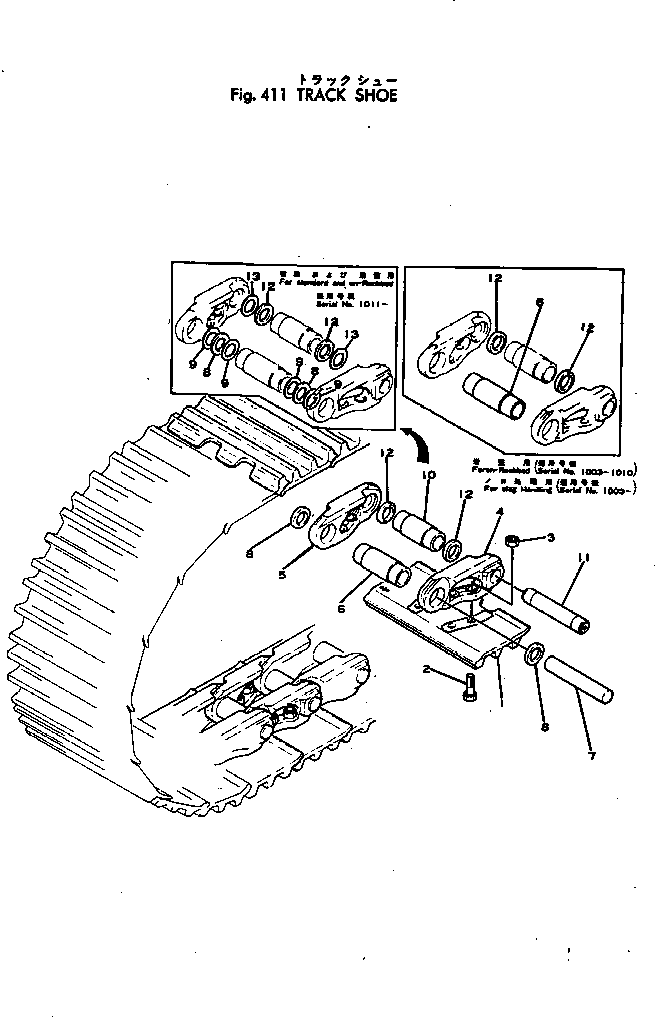

TRACK SHOE(120080 : 411)
Номер на схеме Каталожный номер Название Количество Детали
? TRIPLE 510MM
? 155-32-00105 TRACK SHOE ASS'Y 1
SN: 1279-
? □155-32-00104 TRACK SHOE ASS'Y 1
SN: 1109-1278
? □155-32-00103 TRACK SHOE ASS'Y 1
SN: 1063-1108
? □155-32-00102 TRACK SHOE ASS'Y 1
SN: 1039-1062
? □155-32-00101 TRACK SHOE ASS'Y 1
SN: 1011-1038
? □155-32-00100 TRACK SHOE ASS'Y 1
SN: 1003-1010
? 155-32-11412 • SHOE,TRACK 82
SN: 1279-
? ▩155-32-11411 • SHOE,TRACK 82
SN: 1063-1278
? (155-32-11412{155-32-11230)}
? □155-32-11410 • SHOE,TRACK 82
SN: 1039-1062
? □155-32-11291 • SHOE,TRACK 82
SN: 1003-1038
? 155-32-11230 • BOLT ? SHOE (KIT) 328
SN: 1279-
? 155-32-11210 • BOLT ? SHOE (KIT) 328
SN: 1003-1278
? 01803-02026 • NUT ? SHOE (KIT) 328
SN: 1003-
? 155-32-00014 • TRACK LINK ASS'Y 1
SN: 1279-
? □155-32-00013 • TRACK LINK ASS'Y 1
SN: 1109-1278
? □155-32-00012 • TRACK LINK ASS'Y 1
SN: 1063-1108
? □155-32-00011 • TRACK LINK ASS'Y 1
SN: 1011-1062
? □155-32-00010 • TRACK LINK ASS'Y 1
SN: 1003-1010
? 155-32-11121 • • LINK,L.H. 82
SN: 1109-
? □155-32-11120 • • LINK,L.H. 82
SN: 1003-1108
? 155-32-11131 • • LINK,R.H. 82
SN: 1109-
? □155-32-11130 • • LINK,R.H. 82
SN: 1003-1108
? 155-32-11144 • • BUSHING ? REGULAR 78
SN: 1279-
? □155-32-11143 • • BUSHING ? REGULAR 78
SN: 1003-1278
? 155-32-11155 • • PIN ? REGULAR 78
SN: 1063-
? □155-32-11153 • • PIN ? REGULAR 78
SN: 1003-1062
? 155-32-31281 • • SPACER 156
SN: 1279-
? □155-32-31280 • • SPACER 156
SN: 1011-1278
? ▩154-32-11250 • • SEAL,DUST ? REGULAR 156
SN: 1003-1010
? (155-32-31281{155-32-31291)}
? 155-32-31291 • • WASHER 312
SN: 1279-
? □155-32-31290 • • WASHER 312
SN: 1011-1278
? 155-32-11172 • • BUSHING ? MASTER 4
SN: 1279-
? □155-32-11171 • • BUSHING ? MASTER 4
SN: 1003-1278
? 155-32-11194 • • PIN ? MASTER 4
SN: 1063-
? □155-32-11192 • • PIN ? MASTER 4
SN: 1003-1062
? 155-32-31311 • • SPACER 8
SN: 1279-
? □155-32-31310 • • SPACER 8
SN: 1011-1278
? ▩154-32-11260 • • SEAL,DUST ? MASTER 8
SN: 1003-1010
? (155-32-31311{155-32-31291)}
? 155-32-31291 • • WASHER 8
SN: 1279-
? □155-32-31290 • • WASHER 8
SN: 1011-1278
? TRIPLE 560MM
? 155-32-00205 TRACK SHOE ASS'Y 1
SN: 1279-
? □155-32-00204 TRACK SHOE ASS'Y 1
SN: 1109-1278
? □155-32-00203 TRACK SHOE ASS'Y 1
SN: 1063-1108
? □155-32-00202 TRACK SHOE ASS'Y 1
SN: 1039-1062
? □155-32-00201 TRACK SHOE ASS'Y 1
SN: 1011-1038
? □155-32-00200 TRACK SHOE ASS'Y 1
SN: 1003-1010
? 155-32-11421 • SHOE,TRACK 82
SN: 1279-
? ▩155-32-11420 • SHOE,TRACK 82
SN: 1039-1278
? (155-32-11421{155-32-11230)}
? □155-32-11310 • SHOE,TRACK 82
SN: 1003-1038
? 155-32-11230 • BOLT ? SHOE (KIT) 328
SN: 1279-
? 155-32-11210 • BOLT ? SHOE (KIT) 328
SN: 1003-1278
? 01803-02026 • NUT ? SHOE (KIT) 328
SN: 1003-
? 155-32-00014 • TRACK LINK ASS'Y 1
SN: 1279-
? □155-32-00013 • TRACK LINK ASS'Y 1
SN: 1109-1278
? □155-32-00012 • TRACK LINK ASS'Y 1
SN: 1063-1108
? □155-32-00011 • TRACK LINK ASS'Y 1
SN: 1011-1062
? □155-32-00010 • TRACK LINK ASS'Y 1
SN: 1003-1010
? SERVICE KIT
? 155-32-05001 SHOE BOLT AND NUT K. 1
SN: 1279-
? 155-32-05000 SHOE BOLT AND NUT K. 1
SN: 1003-1278
? 155-32-11230 • BOLT ? SHOE 30
SN: 1279-
? 155-32-11210 • BOLT ? SHOE 30
SN: 1003-1278
? 01803-02026 • NUT ? SHOE 30
SN: 1003-
? SEMI-DOUBLE 510MM
? 155-32-00603 TRACK SHOE ASS'Y 1
SN: 1279-
? □155-32-00602 TRACK SHOE ASS'Y 1
SN: 1109-1278
? □155-32-00601 TRACK SHOE ASS'Y 1
SN: 1063-1108
? □155-32-00600 TRACK SHOE ASS'Y 1
SN: 1011-1062
? 155-32-11114 • SHOE,TRACK 82
SN: 1011-
? 155-32-11210 • BOLT ? SHOE (KIT) 328
SN: 1011-
? 01803-02026 • NUT ? SHOE (KIT) 328
SN: 1011-
? 155-32-00014 • TRACK LINK ASS'Y 1
SN: 1279-
? □155-32-00013 • TRACK LINK ASS'Y 1
SN: 1109-1278
? □155-32-00012 • TRACK LINK ASS'Y 1
SN: 1063-1108
? □155-32-00011 • TRACK LINK ASS'Y 1
SN: 1011-1062
? SEMI-DOUBLE 560MM
? 155-32-00304 TRACK SHOE ASS'Y 1
SN: 1279-
? □155-32-00303 TRACK SHOE ASS'Y 1
SN: 1109-1278
? □155-32-00302 TRACK SHOE ASS'Y 1
SN: 1063-1108
? □155-32-00301 TRACK SHOE ASS'Y 1
SN: 1011-1062
? □155-32-00300 TRACK SHOE ASS'Y 1
SN: 1003-1010
? 155-32-11280 • SHOE,TRACK 82
SN: 1003-
? 155-32-11210 • BOLT ? SHOE (KIT) 328
SN: 1003-
? 01803-02026 • NUT ? SHOE (KIT) 328
SN: 1003-
? 155-32-00014 • TRACK LINK ASS'Y 1
SN: 1279-
? □155-32-00013 • TRACK LINK ASS'Y 1
SN: 1109-1278
? □155-32-00012 • TRACK LINK ASS'Y 1
SN: 1063-1108
? □155-32-00011 • TRACK LINK ASS'Y 1
SN: 1011-1062
? □155-32-00010 • TRACK LINK ASS'Y 1
SN: 1003-1010
? ON-ROCKBED 510MM
? 155-32-00404 TRACK SHOE ASS'Y
SN: 1279-
? □155-32-00403 TRACK SHOE ASS'Y 1
SN: 1109-1278
? □155-32-00402 TRACK SHOE ASS'Y 1
SN: 1063-1108
? □155-32-00401 TRACK SHOE ASS'Y 1
SN: 1011-1062
? □155-32-00400 TRACK SHOE ASS'Y 1
SN: 1003-1010
? 155-32-11361 • SHOE,TRACK 82
SN: 1003-
? 155-32-11210 • BOLT ? SHOE (KIT) 328
SN: 1003-
? 01803-02026 • NUT ? SHOE (KIT) 328
SN: 1003-
? 155-32-00014 • TRACK LINK ASS'Y 1
SN: 1279-
? □155-32-00013 • TRACK LINK ASS'Y 1
SN: 1109-1278
? □155-32-00012 • TRACK LINK ASS'Y 1
SN: 1063-1108
? □155-32-00011 • TRACK LINK ASS'Y 1
SN: 1011-1062
? □155-32-00020 • TRACK LINK ASS'Y,LONG BUSHING TYPE 1
SN: 1003-1010
? 155-32-11121 • • LINK,L.H. 82
SN: 1109-
? □155-32-11120 • • LINK,L.H. 82
SN: 1003-1108
? 155-32-11131 • • LINK,R.H. 82
SN: 1109-
? □155-32-11130 • • LINK,R.H. 82
SN: 1003-1108
? 155-32-11144 • • BUSHING ? REGULAR 78
SN: 1279-
? □155-32-11143 • • BUSHING ? REGULAR 78
SN: 1011-1278
? ▩155-32-11160 • • BUSHING ? REGULAR,LONG TYPE 78
SN: 1003-1010
? (155-32-11144{155-32-31281}
? ?155-32-31291)
? 155-32-11155 • • PIN ? REGULAR 78
SN: 1063-
? □155-32-11153 • • PIN ? REGULAR 78
SN: 1003-1062
? 155-32-31281 • • SPACER 156
SN: 1279-
? □155-32-31280 • • SPACER 156
SN: 1011-1278
? 155-32-31291 • • WASHER 312
SN: 1279-
? □155-32-31290 • • WASHER 312
SN: 1011-1278
? 155-32-11172 • • BUSHING ? MASTER 4
SN: 1279-
? □155-32-11171 • • BUSHING ? MASTER 4
SN: 1003-1278
? 155-32-11194 • • PIN ? MASTER 4
SN: 1063-
? □155-32-11192 • • PIN ? MASTER 4
SN: 1003-1062
? 155-32-31311 • • SPACER 8
SN: 1279-
? □155-32-31310 • • SPACER 8
SN: 1011-1278
? ▩154-32-11180 • • SPACER 8
SN: 1003-1010
? (155-32-31311{155-32-31291)}
? 155-32-31291 • • WASHER 8
SN: 1279-
? □155-32-31290 • • WASHER 8
SN: 1011-1278
? SERVICE KIT
? 155-32-05000 SHOE BOLT AND NUT K. 1
SN: 1003-
? 155-32-11210 • BOLT ? SHOE 30
SN: 1003-
? 01803-02026 • NUT ? SHOE 30
SN: 1003-
? OVERSIZE PARTS
? 0.10MM OVERSIZE
? 155-98-09071 BUSHING,REGULAR A/R
SN: 1279-
? □155-98-09070 BUSHING,REGULAR A/R
SN: 1003-1278
? 155-98-09011 PIN,REGULAR A/R
SN: 1063-
? □155-98-09010 PIN,REGULAR A/R
SN: 1003-1062
? 155-98-09111 BUSHING,MASTER A/R
SN: 1279-
? □155-98-09110 BUSHING,MASTER A/R
SN: 1003-1278
? 155-98-09041 PIN,MASTER A/R
SN: 1063-
? □155-98-09040 PIN,MASTER A/R
SN: 1002-1062
? 0.18MM OVERSIZE
? 155-98-09091 BUSHING,REGULAR A/R
SN: 1279-
? □155-98-09090 BUSHING,REGULAR A/R
SN: 1003-1278
? 155-98-09031 PIN,REGULAR A/R
SN: 1063-
? □155-98-09030 PIN,REGULAR A/R
SN: 1003-1062
? 155-98-09131 BUSHING,MASTER A/R
SN: 1279-
? □155-98-09130 BUSHING,MASTER A/R
SN: 1003-1278
? 155-98-09061 PIN,MASTER A/R
SN: 1063-
? □155-98-09060 PIN,MASTER A/R
SN: 1003-1062
? SLAG HANDLING 510MM{HIGH TEMP.}
? 155-32-00503 TRACK SHOE ASS'Y 1
SN: 1279-
? □155-32-00502 TRACK SHOE ASS'Y 1
SN: 1109-1278
? □155-32-00501 TRACK SHOE ASS'Y 1
SN: 1063-1108
? □155-32-00500 TRACK SHOE ASS'Y 1
SN: 1003-1062
? 155-32-11370 • SHOE,TRACK 82
SN: 1003-
? 155-32-11210 • BOLT ? SHOE (KIT) 328
SN: 1003-
? 01803-02026 • NUT ? SHOE (KIT) 328
SN: 1003-
? 155-32-00023 • TRACK LINK ASS'Y 1
SN: 1279-
? □155-32-00022 • TRACK LINK ASS'Y 1
SN: 1109-1278
? □155-32-00021 • TRACK LINK ASS'Y 1
SN: 1063-1108
? □155-32-00020 • TRACK LINK ASS'Y 1
SN: 1003-1062
? 155-32-11121 • • LINK,L.H. 82
SN: 1109-
? □155-32-11120 • • LINK,L.H. 82
SN: 1003-1108
? 155-32-11131 • • LINK,R.H. 82
SN: 1109-
? □155-32-11130 • • LINK,R.H. 82
SN: 1003-1108
? 155-32-11160 • • BUSHING ? REGULAR,LONG TYPE 78
SN: 1003-
? 155-32-11155 • • PIN ? REGULAR 78
SN: 1063-
? □155-32-11153 • • PIN ? REGULAR 78
SN: 1003-1062
? 155-32-11172 • • BUSHING ? MASTER 4
SN: 1279-
? □155-32-11171 • • BUSHING ? MASTER 4
SN: 1003-1278
? 155-32-11194 • • PIN ? MASTER 4
SN: 1063-
? □155-32-11192 • • PIN ? MASTER 4
SN: 1003-1062
? 154-32-11180 • • SPACER 8
SN: 1003-
? SLAG HANDLING 510MM{STANDARD}
? 155-32-00701 TRACK SHOE ASS'Y 1
SN: 1279-
? □155-32-00700 TRACK SHOE ASS'Y 1
SN: 1003-1278
? 155-32-11361 • SHOE,TRACK 82
SN: 1003-
? 155-32-11210 • BOLT ? SHOE (KIT) 328
SN: 1003-
? 01803-02026 • NUT ? SHOE (KIT) 328
SN: 1003-
? 155-32-00023 • TRACK LINK ASS'Y 1
SN: 1279-
? □155-32-00022 • TRACK LINK ASS'Y 1
SN: 1003-1278
? SERVICE KIT
? 155-32-05000 SHOE BOLT AND NUT K. 1
SN: 1003-
? 155-32-11210 • BOLT ? SHOE 30
SN: 1003-
? 01803-02026 • NUT ? SHOE 30
SN: 1003-
? OVERSIZE PARTS
? 0.10MM OVERSIZE
? 155-98-09140 BUSHING,LONG TYPE A/R
SN: 1003-
? 0.18MM OVERSIZE
? 155-98-09160 BUSHING,LONG TYPE A/R
SN: 1003-
