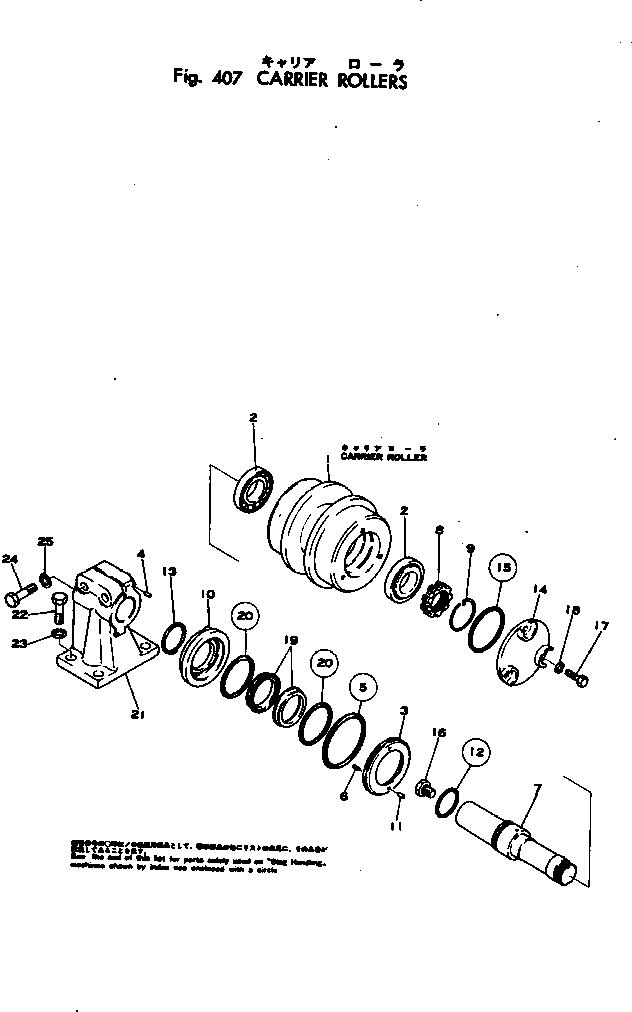

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 155-30-00231 | CARRIER ROLLER ASS'Y | 4 | SN: 2000- |
|||
| ? | □155-30-00230 | CARRIER ROLLER ASS'Y | 4 | SN: 1401-1999 |
|||
| ? | □154-30-00306 | CARRIER ROLLER ASS'Y | 4 | SN: 1279-1400 |
|||
| ? | □154-30-00304 | CARRIER ROLLER ASS'Y | 4 | SN: 1003-1278 |
|||
| ? | 154-30-25111 | • ROLLER,CARRIER | 1 | SN: 1003- |
|||
| ? | 06000-30211 | • BEARING,ROLLER | 2 | SN: 1003- |
|||
| ? | 154-30-25220 | • COLLAR | 1 | SN: 1003- |
|||
| ? | 155-30-15150 | • PIN,DOWEL | 2 | SN: 1279- |
|||
| ? | □04020-00616 | • PIN,DOWEL | 2 | SN: 1003-1278 |
|||
| ? | 07000-02125 | • O-RING | 1 | SN: 1003- |
|||
| ? | 07049-00811 | • PLUG | 2 | SN: 1003- |
|||
| ? | 150-30-14311 | • SHAFT,CARRIER ROLLER | 1 | SN: 1003- |
|||
| ? | 150-30-14420 | • NUT,BEARING | 1 | SN: 1003- |
|||
| ? | 150-30-14430 | • RING,RETAINING | 1 | SN: 1003- |
|||
| ? | 154-30-25230 | • COLLAR | 1 | SN: 1003- |
|||
| ? | 04020-00616 | • PIN,DOWEL | 2 | SN: 1003- |
|||
| ? | 07000-03062 | • O-RING | 1 | SN: 1003- |
|||
| ? | 150-30-14320 | • RING,SNAP | 1 | SN: 1003- |
|||
| ? | 154-30-25121 | • COVER,SIDE | 1 | SN: 2000- |
|||
| ? | □154-30-25120 | • COVER,SIDE | 1 | SN: 1003-1999 |
|||
| ? | 07000-02105 | • O-RING | 1 | SN: 1003- |
|||
| ? | 07052-11624 | • PLUG | 1 | SN: 1003- |
|||
| ? | 01010-31230 | • BOLT | 3 | SN: 1003- |
|||
| ? | 01602-01236 | • WASHER,SPRING | 3 | SN: 1003- |
|||
| ? | 154-30-00830 | • FLOATING SEAL ASS'Y | 1 | SN: 1401- |
|||
| ? | □150-30-00035 | • FLOATING SEAL ASS'Y | 1 | SN: 1003-1400 |
|||
| ? | 154-30-00820 | • • SEAL RING ASS'Y | 1 | SN: 1401- |
|||
| ? | □150-30-00360 | • • SEAL RING ASS'Y | 1 | SN: 1003-1400 |
|||
| ? | ☆ | • • • RING,SEAL | 1 | SN: 1401- |
|||
| ? | ☆ | • • • RING,SEAL | 2 | SN: 1003-1400 |
|||
| ? | 150-30-00370 | • • O-RING ASS'Y | 1 | SN: 1003- |
|||
| ? | ☆ | • • • O-RING | 2 | SN: 1003- |
|||
| ? | 154-30-25212 | SUPPORT,CARRIER ROLLER | 4 | SN: 1279- |
|||
| ? | □154-30-25211 | SUPPORT | 4 | SN: 1063-1278 |
|||
| ? | ▩154-30-25210 | SUPPORT,CARRIER ROLLER | 4 | SN: 1003-1062 |
|||
| ? | (154-30-25212{01010-32060)} | ||||||
| ? | 01010-32060 | BOLT | 16 | SN: 1063- |
|||
| ? | 01010-32050 | BOLT | 16 | SN: 1003-1062 |
|||
| ? | 01602-02060 | WASHER,SPRING | 16 | SN: 1003- |
|||
| ? | 01010-32080 | BOLT | 8 | SN: 1003- |
|||
| ? | 01602-02060 | WASHER,SPRING | 8 | SN: 1003- |
|||
| ? | SLAG HANDLING PARTS | ||||||
| ? | 155-30-00172 | CARRIER ROLLER ASS'Y | 4 | SN: 1401- |
|||
| ? | □155-30-00171 | CARRIER ROLLER ASS'Y | 4 | SN: 1279-1400 |
|||
| ? | □155-30-00170 | CARRIER ROLLER ASS'Y | 4 | SN: 1003-1278 |
|||
| ? | 07000-32125 | • O-RING | 1 | SN: 1003- |
|||
| ? | 07000-33062 | • O-RING | 1 | SN: 1003- |
|||
| ? | 07000-32105 | • O-RING | 1 | SN: 1003- |
|||
| ? | 154-30-00242 | • FLOATING SEAL ASS'Y | 1 | SN: 1401- |
|||
| ? | □154-30-00241 | • FLOATING SEAL ASS'Y | 1 | SN: 1003-1400 |
|||
| ? | 154-830-0030 | • O-RING ASS'Y | 1 | SN: 1003- |
|||
| ? | ☆ | • • O-RING | 2 | SN: 1003- |
