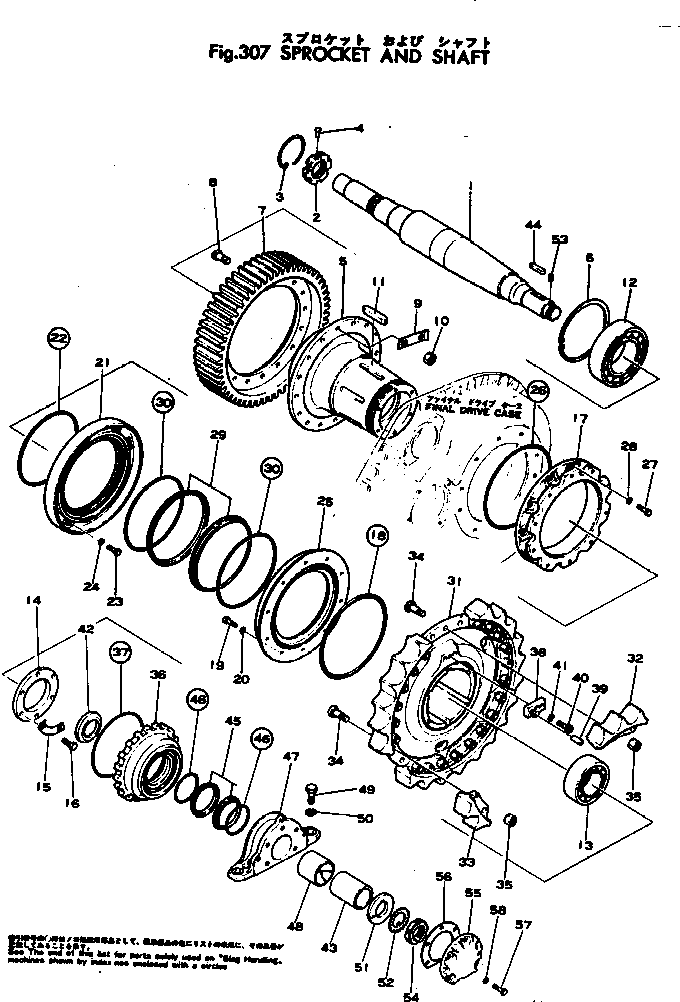

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 155-27-12112 | SHAFT | 2 | SN: 1003- |
|||
| ? | 154-27-12473 | NUT | 2 | SN: 1003- |
|||
| ? | 170-27-12480 | RING,RETAINING | 2 | SN: 1003- |
|||
| ? | 09243-01230 | PIN | 2 | SN: 1338- |
|||
| ? | □170-27-12491 | PIN | 2 | SN: 1003-1337 |
|||
| ? | 155-27-12121 | HUB | 2 | SN: 1003- |
|||
| ? | 04071-00290 | RING,SNAP | 2 | SN: 1003- |
|||
| ? | 155-27-12210 | GEAR,(B) | 2 | SN: 1003- |
|||
| ? | 175-27-12181 | BOLT,REAMER | 32 | SN: 1003- |
|||
| ? | 175-27-12190 | LOCK | 16 | SN: 1003- |
|||
| ? | 01582-02419 | NUT | 32 | SN: 1003- |
|||
| ? | 170-27-12150 | KEY | 12 | SN: 1003- |
|||
| ? | 150-09-13220 | BEARING | 2 | SN: 1003- |
|||
| ? | 06030-23222 | BEARING | 2 | SN: 1003- |
|||
| ? | 170-27-12181 | RETAINER,BEARING | 2 | SN: 1003- |
|||
| ? | 170-27-12210 | WASHER | 6 | SN: 1003- |
|||
| ? | 01010-31440 | BOLT | 12 | SN: 1003- |
|||
| ? | 155-27-12130 | SPACER | 2 | SN: 1003- |
|||
| ? | 07000-05410 | O-RING | 2 | SN: 1003- |
|||
| ? | 01010-31230 | BOLT | 20 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 20 | SN: 1003- |
|||
| ? | 154-27-12152 | COVER | 2 | SN: 1446- |
|||
| ? | □154-27-12151 | COVER | 2 | SN: 1003-1445 |
|||
| ? | 07000-05410 | O-RING | 2 | SN: 1003- |
|||
| ? | 01010-31230 | BOLT | 20 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 20 | SN: 1003- |
|||
| ? | 154-27-12162 | COVER | 2 | SN: 1446- |
|||
| ? | □154-27-12161 | COVER | 2 | SN: 1003-1445 |
|||
| ? | 07000-05410 | O-RING | 2 | SN: 1003- |
|||
| ? | 01010-31230 | BOLT | 20 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 20 | SN: 1003- |
|||
| ? | 170-27-00021 | FLOATING SEAL ASS'Y | 2 | SN: 1003- |
|||
| ? | 170-27-00020 | FLOATING SEAL ASS'Y | 2 | SN: 1003-1434 |
|||
| ? | 170-27-00111 | • SEAL RING ASS'Y | 1 | SN: 1435- |
|||
| ? | □170-27-00110 | • SEAL RING ASS'Y | 1 | SN: 1003-1434 |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1435- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1003-1434 |
|||
| ? | 170-27-00120 | • O-RING ASS'Y | 1 | SN: 1003- |
|||
| ? | ☆ | • • O-RING | 2 | SN: 1003- |
|||
| ? | 155-27-12172 | BOSS | 2 | SN: 1063- |
|||
| ? | ▩155-27-12171 | BOSS | 2 | SN: 1003-1062 |
|||
| ? | (155-27-12172{155-27-12181)} | ||||||
| ? | 155-27-00150 | TOOTH ASS'Y | 2 | SN: 1003- |
|||
| ? | 154-27-12271 | • TEETH | 7 | SN: 1003- |
|||
| ? | 154-27-12281 | • TEETH | 2 | SN: 1003- |
|||
| ? | 155-27-12181 | BOLT | 50 | SN: 1063- |
|||
| ? | 155-27-12180 | BOLT | 50 | SN: 1003-1062 |
|||
| ? | 01803-02228 | NUT | 50 | SN: 1250- |
|||
| ? | □154-27-13130 | NUT | 50 | SN: 1003-1249 |
|||
| ? | 170-27-12232 | NUT,RING | 2 | SN: 1003- |
|||
| ? | 07000-05315 | O-RING | 2 | SN: 1003- |
|||
| ? | 170-27-12241 | STOPPER | 2 | SN: 1003- |
|||
| ? | 170-27-12250 | PIN,DOWEL | 4 | SN: 1003- |
|||
| ? | 01252-01635 | BOLT | 2 | SN: 1003- |
|||
| ? | 01602-01648 | WASHER,SPRING | 2 | SN: 1003- |
|||
| ? | 154-27-12380 | SPACER | 2 | SN: 1003- |
|||
| ? | 154-27-12350 | SPACER | 2 | SN: 1003- |
|||
| ? | 04000-01280 | KEY | 2 | SN: 1003- |
|||
| ? | 198-30-00070 | FLOATING SEAL ASS'Y | 2 | SN: 1435- |
|||
| ? | □170-27-00010 | FLOATING SEAL ASS'Y | 2 | SN: 1003-1434 |
|||
| ? | 198-30-00080 | • SEAL RING ASS'Y | 1 | SN: 1435- |
|||
| ? | □170-27-00070 | • SEAL RING ASS'Y | 1 | SN: 1003-1434 |
|||
| ? | ☆ | • • RING ? SEAL,SEAL | 2 | SN: 1435- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1003-1434 |
|||
| ? | 170-27-00080 | • O-RING ASS'Y | 1 | SN: 1003- |
|||
| ? | 170-27-12340 | • • O-RING | 2 | SN: 1003- |
|||
| ? | 155-27-12340 | SUPPORT | 2 | SN: 1279- |
|||
| ? | ▩154-27-12332 | SUPPORT | 2 | SN: 1003-1278 |
|||
| ? | (155-27-12340{01010-32475(4) ?} | ||||||
| ? | 155-30-11360(2)) | ||||||
| ? | 154-27-12341 | BUSHING | 2 | SN: 1003- |
|||
| ? | 01010-32475 | BOLT | 8 | SN: 1279- |
|||
| ? | 01010-32460 | BOLT | 8 | SN: 1003-1278 |
|||
| ? | 01602-02472 | WASHER,SPRING | 8 | SN: 1003- |
|||
| ? | 155-27-12250 | SPACER | 2 | SN: 1003- |
|||
| ? | 155-27-12260 | LOCK | 2 | SN: 1003- |
|||
| ? | 175-27-32510 | PIN,DOWEL | 2 | SN: 1003- |
|||
| ? | 154-27-12410 | NUT | 2 | SN: 1003- |
|||
| ? | 155-27-12310 | COVER | 2 | SN: 1003- |
|||
| ? | 154-27-12370 | GASKET | 2 | SN: 1003- |
|||
| ? | 01010-31645 | BOLT | 10 | SN: 1003- |
|||
| ? | 01602-01648 | WASHER,SPRING | 10 | SN: 1003- |
|||
| ? | SLAG HANDLING PARTS | ||||||
| ? | 07000-35410 | O-RING | 2 | SN: 1003- |
|||
| ? | 07000-35410 | O-RING | 2 | SN: 1003- |
|||
| ? | 07000-35410 | O-RING | 2 | SN: 1003- |
|||
| ? | 170-27-00052 | FLOATING SEAL ASS'Y | 2 | SN: 1003- |
|||
| ? | 175-27-00111 | • SEAL RING ASS'Y | 1 | SN: 1003- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1003- |
|||
| ? | 154-27-00040 | • O-RING ASS'Y | 1 | SN: 1003- |
|||
| ? | ☆ | • • O-RING | 2 | SN: 1003- |
|||
| ? | 07000-35315 | O-RING | 2 | SN: 1003- |
|||
| ? | 170-27-00061 | FLOATING SEAL ASS'Y | 2 | SN: 1003- |
|||
| ? | 198-30-00080 | • SEAL RING ASS'Y | 1 | SN: 1003- |
|||
| ? | ☆ | • • RING ? SEAL,SEAL | 2 | SN: 1003- |
|||
| ? | 170-27-00091 | • O-RING ASS'Y | 1 | SN: 1003- |
|||
| ? | ☆ | • • O-RING | 2 | SN: 1003- |
