| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

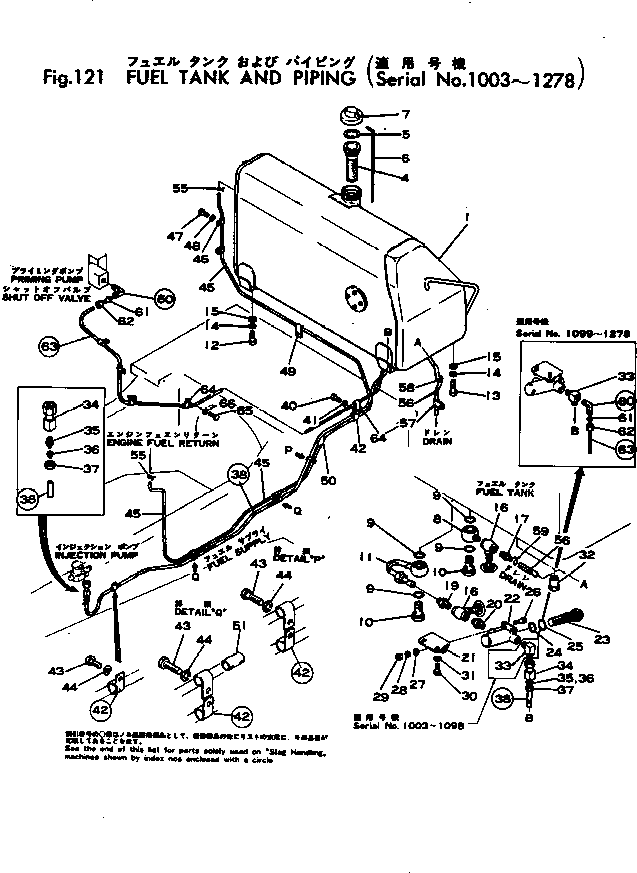

| ? | 155-04-00010 | FUEL TANK ASS'Y | 1 | SN: 1003-1278 |
|||
| ? | 155-04-11110 | • TANK,FUEL | 1 | SN: 1003-@ |
|||
| ? | 131-04-41120 | • STRAINER,FUEL | 1 | SN: @- |
|||
| ? | □130-04-11120 | • STRAINER,FUEL | 1 | SN: 1003-@ |
|||
| ? | 110-04-11120 | • RING,RETAINING | 1 | SN: 1003-@ |
|||
| ? | 154-04-31130 | • GAUGE,FUEL LEVEL | 1 | SN: 1003-@ |
|||
| ? | 07050-00000 | • CAP | 1 | SN: 1003-@ |
|||
| ? | 195-04-11230 | • JOINT,EYE | 1 | SN: 1003-@ |
|||
| ? | 07000-03035 | • O-RING | 4 | SN: 1003-@ |
|||
| ? | 195-04-11280 | • BOLT,JOINT | 2 | SN: 1003-@ |
|||
| ? | 195-04-11220 | • TUBE,OUTLET | 1 | SN: 1003-1278 |
|||
| ? | 01010-32045 | BOLT | 2 | SN: 1003-1278 |
|||
| ? | 01010-32085 | BOLT | 2 | SN: 1003-1278 |
|||
| ? | 01602-02060 | WASHER,SPRING | 4 | SN: 1003-@ |
|||
| ? | 01643-02045 | WASHER | 4 | SN: 1003-@ |
|||
| ? | 154-04-12490 | VALVE | 2 | SN: 1003-@ |
|||
| ? | 154-04-12480 | NIPPLE | 1 | SN: 1003-@ |
|||
| ? | 07213-51521 | CONNECTOR | 1 | SN: 1003-@ |
|||
| ? | 154-04-11150 | NIPPLE | 1 | SN: 1003-1278 |
|||
| ? | 155-04-11210 | BRACKET,FUEL STRAINER | 1 | SN: 1003-1278 |
|||
| ? | 154-04-00073 | STRAINER ASS'Y | 1 | SN: 1279- |
|||
| ? | □154-04-00072 | STRAINER ASS'Y | 1 | SN: 1003-1278 |
|||
| ? | 154-04-12510 | • CASE,STRAINER | 1 | SN: 1003-@ |
|||
| ? | 154-04-12530 | • STRAINER,FUEL | 1 | SN: 1003-1278 |
|||
| ? | 07000-03032 | • O-RING | 1 | SN: 1003-1278 |
|||
| ? | 07000-03040 | • O-RING | 1 | SN: 1003-@ |
|||
| ? | 01010-30825 | BOLT | 2 | SN: 1003-1278 |
|||
| ? | 01641-00812 | WASHER | 2 | SN: 1003-1278 |
|||
| ? | 01602-00825 | WASHER,SPRING | 2 | SN: 1003-1278 |
|||
| ? | 01580-00806 | NUT | 2 | SN: 1003-1278 |
|||
| ? | 01010-31225 | BOLT | 2 | SN: 1003-1278 |
|||
| ? | 01602-01236 | WASHER,SPRING | 2 | SN: 1003-1278 |
|||
| ? | 154-04-12470 | PLUG | 1 | SN: 1003-@ |
|||
| ? | 175-04-25261 | ELBOW | 1 | SN: 1099-1278 |
|||
| ? | 155-04-11240 | ELBOW | 1 | SN: 1003-1098 |
|||
| ? | 155-04-11231 | JOINT | 2 | SN: 1003-1278 |
|||
| ? | 07836-00817 | CONNECTOR | 2 | SN: 1279- |
|||
| ? | □22-403581-01 | CONNECTOR | 2 | SN: 1003-1278 |
|||
| ? | 07831-00813 | SLEEVE | 2 | SN: 1279- |
|||
| ? | □22-403580-01 | SLEEVE | 2 | SN: 1003-1278 |
|||
| ? | 07832-00817 | NUT,SLEEVE | 2 | SN: 1279- |
|||
| ? | □22-403579-01 | NUT,SLEEVE | 2 | SN: 1003-1278 |
|||
| ? | 155-04-11142 | TUBE,FUEL SUPPLY | 1 | SN: 1003-@ |
|||
| ? | 01010-31220 | BOLT | 1 | SN: 1003-@ |
|||
| ? | 01602-01236 | WASHER,SPRING | 1 | SN: 1003-@ |
|||
| ? | 08036-11214 | CLIP | 9 | SN: 1003-@ |
|||
| ? | 01010-31020 | BOLT | 4 | SN: 1003-@ |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 1003-@ |
|||
| ? | 155-04-11150 | TUBE,FUEL RETURN | 1 | SN: 1003-@ |
|||
| ? | 08036-10810 | CLIP | 2 | SN: 1003-@ |
|||
| ? | 01010-30825 | BOLT | 2 | SN: 1003-@ |
|||
| ? | 01602-00825 | WASHER,SPRING | 2 | SN: 1003-@ |
|||
| ? | 155-804-1140 | CLAMP | 1 | SN: 1003-@ |
|||
| ? | 195-04-11320 | TUBE | 1 | SN: 1003-@ |
|||
| ? | 195-04-11330 | TUBE | 3 | SN: 1003-@ |
|||
| ? | 175-04-25180 | CLIP | 2 | SN: 1003-@ |
|||
| ? | 155-04-11160 | TUBE,DRAIN | 1 | SN: 1003-@ |
|||
| ? | 131-04-21130 | CLIP | 1 | SN: 1003-@ |
|||
| ? | 08037-01610 | GROMMET | 1 | SN: 1003-@ |
|||
| ? | 155-04-11190 | CLIP | 1 | SN: 1003-@ |
|||
| ? | 07834-00410 | ELBOW | 2 | SN: 1279- |
|||
| ? | □22-403578-01 | ELBOW | 2 | SN: 1099-1278 |
|||
| ? | 07831-00411 | SLEEVE | 2 | SN: 1279- |
|||
| ? | □22-403574-01 | SLEEVE | 2 | SN: 1099-1278 |
|||
| ? | 07832-00410 | NUT,SLEEVE | 2 | SN: 1279- |
|||
| ? | □22-403575-01 | NUT,SLEEVE | 2 | SN: 1099-1278 |
|||
| ? | 155-06-16170 | TUBE | 1 | SN: 1099-@ |
|||
| ? | 08036-10614 | CLIP | 5 | SN: 1099-@ |
|||
| ? | 01010-31016 | BOLT | 2 | SN: 1099-@ |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 1099-@ |
|||
| ? | SLAG HANDLING PARTS | ||||||
| ? | 07100-20436 | HOSE | 1 | SN: 1099-@ |
|||
| ? | 08036-02514 | CLIP | 7 | SN: 1099-@ |
|||
| ? | 07217-50610 | ELBOW | 2 | SN: 1099-@ |
|||
| ? | 155-804-5110 | TUBE | 1 | SN: 1099-@ |
