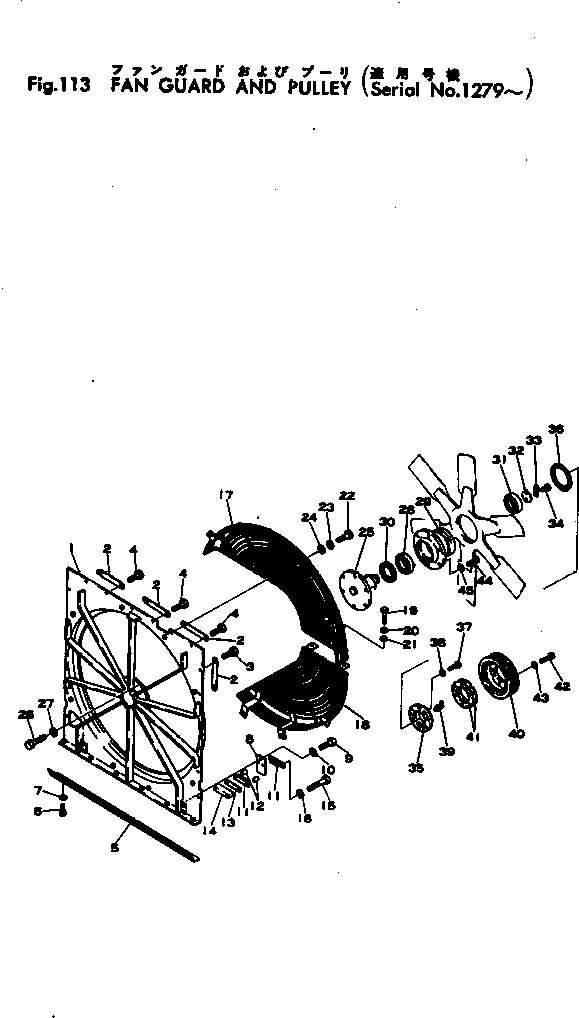

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 155-03-11214 | GUARD | 1 | SN: 1279- |
|||
| ? | 155-03-16111 | GUARD,(FOR REVERSIBLE FAN) | 1 | SN: 1279- |
|||
| ? | 155-03-11250 | LOCK | 9 | SN: 1279- |
|||
| ? | 01010-31230 | BOLT | 12 | SN: 1003- |
|||
| ? | 01010-31225 | BOLT | 6 | SN: 1003- |
|||
| ? | 155-03-11310 | COVER,BOTTOM | 1 | SN: 1003- |
|||
| ? | 01010-31020 | BOLT | 6 | SN: 1003- |
|||
| ? | 01602-01030 | WASHER,SPRING | 6 | SN: 1003- |
|||
| ? | 154-03-11330 | PLATE | 2 | SN: 1003- |
|||
| ? | 01010-31225 | BOLT | 6 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 6 | SN: 1003- |
|||
| ? | 170-03-13120 | CUSHION,MOUNT | 4 | SN: 1003- |
|||
| ? | 170-03-13130 | SPACER | 4 | SN: 1003- |
|||
| ? | 154-03-11340 | SHIM ? 0.6MM | 14 | SN: 1003- |
|||
| ? | 154-03-21140 | SPACER | 2 | SN: 1003- |
|||
| ? | 01011-31200 | BOLT | 4 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 4 | SN: 1003- |
|||
| ? | 155-03-11221 | NET | 1 | SN: 1279- |
|||
| ? | 155-03-16121 | NET,(FOR REVERSIBLE FAN) | 1 | SN: 1279- |
|||
| ? | 155-03-11231 | NET | 1 | SN: 1279- |
|||
| ? | 155-03-16131 | NET,(FOR REVERSIBLE FAN) | 1 | SN: 1279- |
|||
| ? | 01010-31230 | BOLT | 2 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 2 | SN: 1003- |
|||
| ? | 01643-01232 | WASHER | 2 | SN: 1003- |
|||
| ? | 01010-31230 | BOLT | 7 | SN: 1279- |
|||
| ? | 01602-01236 | WASHER,SPRING | 7 | SN: 1279- |
|||
| ? | 01643-01232 | WASHER | 7 | SN: 1279- |
|||
| ? | 175-03-31321 | SHAFT,COOLING FAN | 1 | SN: 1003- |
|||
| ? | 01010-31235 | BOLT | 6 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 6 | SN: 1003- |
|||
| ? | 06040-06212 | BEARING,BALL | 1 | SN: 1003- |
|||
| ? | 155-03-16140 | DRUM,(FOR REVERSIBLE FAN) | 1 | SN: 1279- |
|||
| ? | 195-03-11821 | DRUM,COOLING FAN | 1 | SN: 1003- |
|||
| ? | 07011-10090 | SEAL,OIL | 1 | SN: 1003- |
|||
| ? | 06040-06310 | BEARING,BALL | 1 | SN: 1003- |
|||
| ? | 195-03-11840 | HOLDER,BEARING | 1 | SN: 1003- |
|||
| ? | 195-03-11850 | LOCK | 1 | SN: 1003- |
|||
| ? | 01010-31025 | BOLT | 2 | SN: 1003- |
|||
| ? | 195-03-11860 | COVER,BEARING | 1 | SN: 1003- |
|||
| ? | 195-03-11870 | GASKET | 1 | SN: 1003- |
|||
| ? | 01010-31030 | BOLT | 3 | SN: 1003- |
|||
| ? | 01602-01030 | WASHER,SPRING | 3 | SN: 1003- |
|||
| ? | 07020-00675 | FITTING,GREASE | 1 | SN: 1003- |
|||
| ? | 155-03-11240 | PULLEY,FAN | 1 | SN: 1003- |
|||
| ? | 195-03-11880 | SHIM ? 1.0MM | 10 | SN: 1003- |
|||
| ? | 01010-31260 | BOLT | 6 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 6 | SN: 1003- |
|||
| ? | 01010-31235 | BOLT,COOLING FAN | 6 | SN: 1003- |
|||
| ? | 01602-01236 | WASHER,SPRING | 6 | SN: 1003- |
