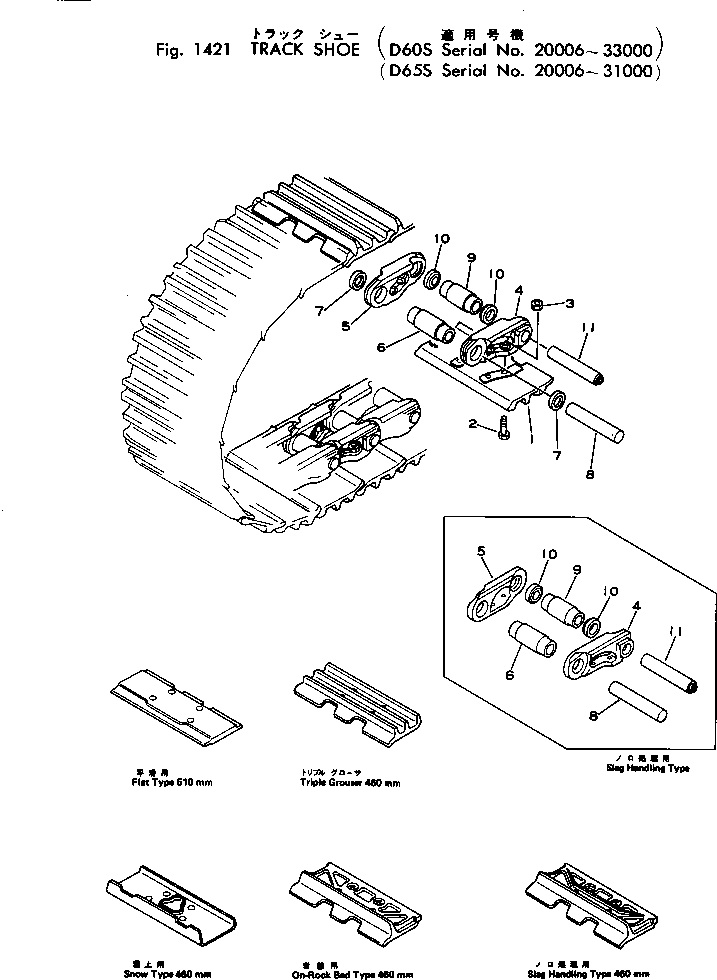

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SEMI-DOUBLE 460MM | ||||||
| ? | 141-32-03006 | TRACK SHOE ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-03005 | TRACK SHOE ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-03004 | TRACK SHOE ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-03003 | TRACK SHOE ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-03002 | TRACK SHOE ASS'Y | 1 | SN: .-25728 |
|||
| ? | □141-32-03001 | TRACK SHOE ASS'Y | 1 | SN: 22388-. |
|||
| ? | □141-32-03000 | TRACK SHOE ASS'Y | 1 | SN: 20006-22387 |
|||
| ? | 141-32-11312 | • SHOE,TRACK | 78 | SN: .-@ |
|||
| ? | □141-32-11311 | • SHOE,TRACK | 78 | SN: 20006-. |
|||
| ? | 144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 144-32-11210 | • BOLT ? SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 150-32-21331 | • NUT,SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 141-32-00044 | • TRACK LINK ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-00042 | • TRACK LINK ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-00041 | • TRACK LINK ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-00040 | • TRACK LINK ASS'Y | 1 | SN: 20006-25728 |
|||
| ? | 144-32-11122 | • • LINK,TRACK ? L.H. | 78 | SN: 29022-31000 |
|||
| ? | □144-32-11121 | • • LINK,TRACK ? L.H. | 78 | SN: 25729-29021 |
|||
| ? | 144-32-11120 | • • LINK,TRACK ? L.H. | 78 | SN: 20006-25728 |
|||
| ? | 144-32-11132 | • • LINK,TRACK ? R.H. | 78 | SN: 29022-31000 |
|||
| ? | □144-32-11131 | • • LINK,TRACK ? R.H. | 78 | SN: 25729-29021 |
|||
| ? | 144-32-11130 | • • LINK,TRACK ? R.H. | 78 | SN: 20006-25728 |
|||
| ? | 144-32-11142 | • • BUSHING ? REGULAR | 74 | SN: ..-31000 |
|||
| ? | □144-32-11140 | • • BUSHING,REGULAR | 74 | SN: 20006-.. |
|||
| ? | 144-32-11240 | • • SEAL,DUST ? REGULAR ? W-TYPE | 148 | SN: 25775-@ |
|||
| ? | □150-32-11250 | • • SEAL,DUST ? REGULAR ? E-TYPE | 148 | SN: 20006-25774 |
|||
| ? | 144-32-11151 | • • PIN ? REGULAR | 74 | SN: ..-@ |
|||
| ? | □144-32-11150 | • • PIN,REGULAR | 74 | SN: 20006-.. |
|||
| ? | 144-32-11171 | • • BUSHING,MASTER | 4 | SN: ..-31000 |
|||
| ? | □144-32-11170 | • • BUSHING,MASTER | 4 | SN: 20006-.. |
|||
| ? | 150-32-11260 | • • SEAL,DUST ? MASTER | 8 | SN: 20006-@ |
|||
| ? | 144-32-11192 | • • PIN,MASTER | 4 | SN: ..-@ |
|||
| ? | □144-32-11190 | • • PIN,MASTER | 4 | SN: 20006-.. |
|||
| ? | SEMI-DOUBLE 510MM | ||||||
| ? | 141-32-02006 | TRACK SHOE ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-02005 | TRACK SHOE ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-02004 | TRACK SHOE ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-02003 | TRACK SHOE ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-02002 | TRACK SHOE ASS'Y | 1 | SN: .-25728 |
|||
| ? | □141-32-02001 | TRACK SHOE ASS'Y | 1 | SN: 22388-. |
|||
| ? | □141-32-02000 | TRACK SHOE ASS'Y | 1 | SN: 20006-22387 |
|||
| ? | 141-32-11341 | • SHOE,TRACK | 78 | SN: .-@ |
|||
| ? | □141-32-11340 | • SHOE,TRACK | 78 | SN: 20006-. |
|||
| ? | 144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 144-32-11210 | • BOLT ? SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 150-32-21331 | • NUT,SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 141-32-00044 | • TRACK LINK ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-00042 | • TRACK LINK ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-00041 | • TRACK LINK ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-00040 | • TRACK LINK ASS'Y | 1 | SN: 20006-25728 |
|||
| ? | TRIPLE 460MM | ||||||
| ? | 141-32-03105 | TRACK SHOE ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-03104 | TRACK SHOE ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-03103 | TRACK SHOE ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-03102 | TRACK SHOE ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-03101 | TRACK SHOE ASS'Y | 1 | SN: 22388-25728 |
|||
| ? | □141-32-03100 | TRACK SHOE ASS'Y | 1 | SN: 20006-22387 |
|||
| ? | 141-32-11291 | • SHOE,TRACK | 78 | SN: 20006-@ |
|||
| ? | 144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 144-32-11210 | • BOLT ? SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 150-32-21331 | • NUT,SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 141-32-00044 | • TRACK LINK ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-00042 | • TRACK LINK ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-00041 | • TRACK LINK ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-00040 | • TRACK LINK ASS'Y | 1 | SN: 20006-25728 |
|||
| ? | FLAT 510MM | ||||||
| ? | 141-32-01408 | TRACK SHOE ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-01405 | TRACK SHOE ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-01404 | TRACK SHOE ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-01403 | TRACK SHOE ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-01402 | TRACK SHOE ASS'Y | 1 | SN: 22388-25728 |
|||
| ? | □141-32-01401 | TRACK SHOE ASS'Y | 1 | SN: 20006-22387 |
|||
| ? | 141-32-11281 | • SHOE,TRACK | 78 | SN: 20006-31000 |
|||
| ? | 154-32-21320 | • BOLT,SHOE (KIT) | 312 | SN: 22388-31000 |
|||
| ? | 150-32-21321 | • BOLT,SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 150-32-21331 | • NUT,SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 141-32-00044 | • TRACK LINK ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-00042 | • TRACK LINK ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-00041 | • TRACK LINK ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-00040 | • TRACK LINK ASS'Y | 1 | SN: 20006-25728 |
|||
| ? | SNOW 460MM | ||||||
| ? | 141-32-03600 | TRACK SHOE ASS'Y | 1 | SN: ...-31000 |
|||
| ? | □141-32-01109 | TRACK SHOE ASS'Y | 1 | SN: 29022-... |
|||
| ? | □141-32-01106 | TRACK SHOE ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-01105 | TRACK SHOE ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-01104 | TRACK SHOE ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-01103 | TRACK SHOE ASS'Y | 1 | SN: 22388-25728 |
|||
| ? | □141-32-01102 | TRACK SHOE ASS'Y | 1 | SN: 20006-22387 |
|||
| ? | 141-32-11331 | • SHOE,TRACK | 78 | SN: ...-31000 |
|||
| ? | □141-32-11330 | • SHOE,TRACK | 78 | SN: 20006-... |
|||
| ? | 144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 144-32-11210 | • BOLT ? SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 150-32-21331 | • NUT,SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 141-32-00044 | • TRACK LINK ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-00042 | • TRACK LINK ASS'Y | 1 | SN: ..-25774 |
|||
| ? | □141-32-00041 | • TRACK LINK ASS'Y | 1 | SN: 25729-.. |
|||
| ? | □141-32-00040 | • TRACK LINK ASS'Y | 1 | SN: 20006-25728 |
|||
| ? | ON-ROCKBED 460MM | ||||||
| ? | 141-32-03404 | TRACK SHOE ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-03403 | TRACK SHOE ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-03402 | TRACK SHOE ASS'Y,LONG BUSHING | 1 | SN: .-25774 |
|||
| ? | □141-32-03401 | TRACK SHOE ASS'Y,LONG BUSHING | 1 | SN: 25729-. |
|||
| ? | □141-32-03400 | TRACK SHOE ASS'Y,LONG BUSHING | 1 | SN: 22388-25728 |
|||
| ? | □141-32-03201 | TRACK SHOE ASS'Y | 1 | SN: 22388-25728 |
|||
| ? | □141-32-03200 | TRACK SHOE ASS'Y | 1 | SN: 20006-22387 |
|||
| ? | 141-32-11320 | • SHOE,TRACK | 78 | SN: 20006-@ |
|||
| ? | 144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 144-32-11210 | • BOLT ? SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388-@ |
|||
| ? | 150-32-21331 | • NUT,SHOE (KIT) | 312 | SN: 20006-22387 |
|||
| ? | 141-32-00044 | • TRACK LINK ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | 141-32-00053 | • TRACK LINK ASS'Y | 1 | SN: 25775-29021 |
|||
| ? | □141-32-00052 | • TRACK LINK ASS'Y | 1 | SN: .-25774 |
|||
| ? | □141-32-00051 | • TRACK LINK ASS'Y | 1 | SN: 25729-. |
|||
| ? | □141-32-00050 | • TRACK LINK ASS'Y | 1 | SN: 22388-25728 |
|||
| ? | □141-32-00040 | • TRACK LINK ASS'Y | 1 | SN: 20006-25728 |
|||
| ? | 144-32-11122 | • • LINK,TRACK ? L.H. | 78 | SN: 25775-31000 |
|||
| ? | □144-32-11121 | • • LINK,TRACK ? L.H. | 78 | SN: 25729-25774 |
|||
| ? | 144-32-11120 | • • LINK,TRACK ? L.H. | 78 | SN: 20006-25728 |
|||
| ? | 144-32-11132 | • • LINK,TRACK ? R.H. | 78 | SN: 25775-31000 |
|||
| ? | □144-32-11131 | • • LINK,TRACK ? R.H. | 78 | SN: 25729-25774 |
|||
| ? | 144-32-11130 | • • LINK,TRACK ? R.H. | 78 | SN: 20006-25728 |
|||
| ? | 144-32-11142 | • • BUSHING ? REGULAR | 74 | SN: 25775-31000 |
|||
| ? | 144-32-11143 | • • BUSHING,REGULAR ? LONG TYPE | 74 | SN: 25729-25774 |
|||
| ? | □144-32-11141 | • • BUSHING,REGULAR ? LONG TYPE | 74 | SN: 22388-25728 |
|||
| ? | 144-32-11142 | • • BUSHING ? REGULAR | 74 | SN: 20006-25728 |
|||
| ? | □144-32-11140 | • • BUSHING,REGULAR | 74 | SN: 20006-25728 |
|||
| ? | 144-32-11240 | • • SEAL,DUST ? REGULAR ? E-TYPE | 148 | SN: 25729-@ |
|||
| ? | □150-32-11250 | • • SEAL,DUST ? REGULAR ? E-TYPE | 148 | SN: 20006-25728 |
|||
| ? | 144-32-11151 | • • PIN ? REGULAR | 74 | SN: .-@ |
|||
| ? | □144-32-11150 | • • PIN,REGULAR | 74 | SN: 20006-. |
|||
| ? | 144-32-11171 | • • BUSHING,MASTER | 4 | SN: .-31000 |
|||
| ? | □144-32-11170 | • • BUSHING,MASTER | 4 | SN: 20006-. |
|||
| ? | 150-32-11260 | • • SEAL,DUST ? MASTER | 8 | SN: 29022-@ |
|||
| ? | 144-32-11180 | • • SPACER | 8 | SN: 22388-29021 |
|||
| ? | 150-32-11260 | • • SEAL,DUST ? MASTER | 8 | SN: 20006-25728 |
|||
| ? | 144-32-11192 | • • PIN,MASTER | 4 | SN: .-@ |
|||
| ? | □144-32-11190 | • • PIN,MASTER | 4 | SN: 20006-. |
|||
| ? | SERVICE KIT | ||||||
| ? | 144-32-05001 | SHOE BOLT AND NUT K. | 1 | SN: 22388-@ |
|||
| ? | 144-32-05000 | SHOE BOLT AND NUT K. | 1 | SN: 20006-22387 |
|||
| ? | 144-32-11211 | • BOLT ? SHOE | 30 | SN: 22388-@ |
|||
| ? | 144-32-11210 | • BOLT ? SHOE | 30 | SN: 20006-22387 |
|||
| ? | 154-32-21330 | • NUT,SHOE | 30 | SN: 22388-@ |
|||
| ? | 150-32-21331 | • NUT,SHOE | 30 | SN: 20006-22387 |
|||
| ? | OVERSIZE PARTS | ||||||
| ? | 0.10MM OVERSIZE | ||||||
| ? | 144-98-09111 | BUSHING ? REGULAR | A/R | SN: ..-31000 |
|||
| ? | □144-98-09110 | BUSHING,REGULAR | A/R | SN: 20006-.. |
|||
| ? | 144-98-09011 | PIN,REGULAR | A/R | SN: ..-@ |
|||
| ? | □144-98-09010 | PIN,REGULAR | A/R | SN: 20006-.. |
|||
| ? | 144-98-09141 | BUSHING ? MASTER | A/R | SN: ..-31000 |
|||
| ? | □144-98-09140 | BUSHING,MASTER | A/R | SN: 20006-.. |
|||
| ? | 144-98-09041 | PIN,MASTER | A/R | SN: ..-@ |
|||
| ? | □144-98-09040 | PIN,MASTER | A/R | SN: 20006-.. |
|||
| ? | 0.18MM OVERSIZE | ||||||
| ? | 144-98-09131 | BUSHING ? REGULAR | A/R | SN: ..-31000 |
|||
| ? | □144-98-09130 | BUSHING,REGULAR | A/R | SN: 20006-.. |
|||
| ? | 144-98-09031 | PIN,REGULAR | A/R | SN: ..-@ |
|||
| ? | □144-98-09030 | PIN,REGULAR | A/R | SN: 20006-.. |
|||
| ? | 144-98-09161 | BUSHING ? MASTER | A/R | SN: ..-31000 |
|||
| ? | □144-98-09160 | BUSHING,MASTER | A/R | SN: 20006-.. |
|||
| ? | 144-98-09061 | PIN,MASTER | A/R | SN: ..-@ |
|||
| ? | □144-98-09060 | PIN,MASTER | A/R | SN: 20006-.. |
|||
| ? | SLAG HANDLING 460MM | ||||||
| ? | 141-32-03303 | TRACK SHOE ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-03302 | TRACK SHOE ASS'Y | 1 | SN: .-29021 |
|||
| ? | □141-32-03301 | TRACK SHOE ASS'Y | 1 | SN: 25729-. |
|||
| ? | □141-32-03300 | TRACK SHOE ASS'Y | 1 | SN: 22388-25728 |
|||
| ? | 141-32-11370 | • SHOE,TRACK | 78 | SN: 22388-31000 |
|||
| ? | 144-32-11211 | • BOLT ? SHOE (KIT) | 312 | SN: 22388-31000 |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 312 | SN: 22388-31000 |
|||
| ? | 141-32-00054 | • TRACK LINK ASS'Y | 1 | SN: 29022-31000 |
|||
| ? | □141-32-00052 | • TRACK LINK ASS'Y | 1 | SN: .-29021 |
|||
| ? | □141-32-00051 | • TRACK LINK ASS'Y | 1 | SN: 25729-. |
|||
| ? | □141-32-00050 | • TRACK LINK ASS'Y | 1 | SN: 22388-25728 |
|||
| ? | 144-32-11122 | • • LINK,TRACK ? L.H. | 78 | SN: 29022-31000 |
|||
| ? | □144-32-11121 | • • LINK,TRACK ? L.H. | 78 | SN: 25729-29021 |
|||
| ? | 144-32-11120 | • • LINK,TRACK ? L.H. | 78 | SN: 22388-25728 |
|||
| ? | 144-32-11132 | • • LINK,TRACK ? R.H. | 78 | SN: 29022-31000 |
|||
| ? | □144-32-11131 | • • LINK,TRACK ? R.H. | 78 | SN: 25729-29021 |
|||
| ? | 144-32-11130 | • • LINK,TRACK ? R.H. | 78 | SN: 22388-25728 |
|||
| ? | 144-32-11142 | • • BUSHING ? REGULAR | 74 | SN: 29022-31000 |
|||
| ? | 144-32-11143 | • • BUSHING,REGULAR | 74 | SN: 25729-29021 |
|||
| ? | □144-32-11141 | • • BUSHING,REGULAR | 74 | SN: 22388-25728 |
|||
| ? | 144-32-11240 | • • SEAL,DUST ? REGULAR | 148 | SN: .-. |
|||
| ? | 144-32-11151 | • • PIN ? REGULAR | 74 | SN: .-31000 |
|||
| ? | □144-32-11150 | • • PIN,REGULAR | 74 | SN: 22388-. |
|||
| ? | 144-32-11171 | • • BUSHING,MASTER | 4 | SN: .-31000 |
|||
| ? | □144-32-11170 | • • BUSHING,MASTER | 4 | SN: 22388-. |
|||
| ? | 150-32-11260 | • • SEAL,DUST ? MASTER | 8 | SN: 29022-31000 |
|||
| ? | 144-32-11180 | • • SPACER | 8 | SN: 22388-29021 |
|||
| ? | 144-32-11192 | • • PIN,MASTER | 4 | SN: .-31000 |
|||
| ? | □144-32-11190 | • • PIN,MASTER | 4 | SN: 22388-. |
|||
| ? | OVERSIZE PARTS | ||||||
| ? | 0.10MM OVERSIZE | ||||||
| ? | 144-98-09211 | BUSHING,REGULAR ? LONG TYPE | A/R | SN: .-29021 |
|||
| ? | □144-98-09210 | BUSHING,REGULAR ? LONG TYPE | A/R | SN: 22388-. |
|||
| ? | 0.18MM OVERSIZE | ||||||
| ? | 144-98-09231 | BUSHING,REGULAR ? LONG TYPE | A/R | SN: .-29021 |
|||
| ? | □144-98-09230 | BUSHING,REGULAR ? LONG TYPE | A/R | SN: 22388-. |
