| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

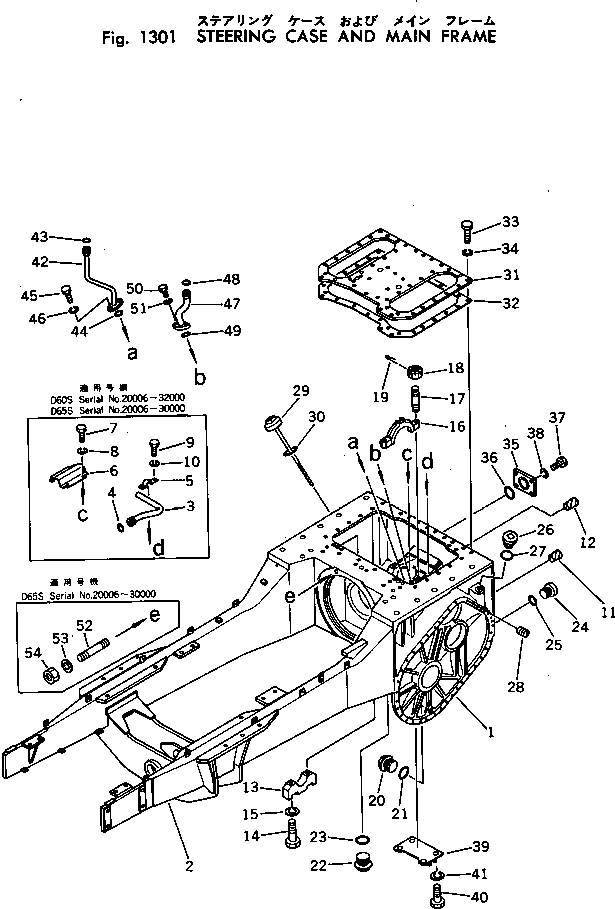

| ? | 141-21-00513 | MAIN FRAME ASS'Y | 1 | SN: 30001- |
|||
| ? | 141-21-00512 | MAIN FRAME ASS'Y | 1 | SN: 22388-30000 |
|||
| ? | □141-21-00511 | MAIN FRAME ASS'Y | 1 | SN: 20024-22387 |
|||
| ? | □141-21-00510 | MAIN FRAME ASS'Y | 1 | SN: 20006-20021 |
|||
| ? | 141-21-31108 | • CASE AND FRAME | 1 | SN: 30001- |
|||
| ? | 141-21-31107 | • CASE AND FRAME | 1 | SN: .-30000 |
|||
| ? | □141-21-31106 | • CASE AND FRAME | 1 | SN: 23712-. |
|||
| ? | □141-21-31104 | • CASE AND FRAME | 1 | SN: 22388-23711 |
|||
| ? | □141-21-31103 | • CASE AND FRAME | 1 | SN: 20024-22387 |
|||
| ? | □141-21-31102 | • CASE AND FRAME | 1 | SN: 20006-20021 |
|||
| ? | 141-21-31590 | • CASE AND FRAME,(FOR LARGE-CAPACITY RADIATOR) | 1 | SN: 30001- |
|||
| ? | 141-21-31216 | • • CASE | 1 | SN: 30001- |
|||
| ? | 141-21-31215 | • • CASE | 1 | SN: 23712-30000 |
|||
| ? | □141-21-31213 | • • CASE | 1 | SN: 22388-23711 |
|||
| ? | 141-21-31212 | • • CASE | 1 | SN: 20024-22387 |
|||
| ? | 141-21-31211 | • • CASE | 1 | SN: 20006-20021 |
|||
| ? | 141-21-31313 | • • FRAME | 1 | SN: 20024- |
|||
| ? | 141-21-31312 | • • FRAME | 1 | SN: 20006-20021 |
|||
| ? | 141-21-31250 | • TUBE | 1 | SN: 20006-30000 |
|||
| ? | 07000-03035 | • O-RING | 1 | SN: 20006-30000 |
|||
| ? | 141-21-31260 | • CLIP | 1 | SN: 20006-30000 |
|||
| ? | 144-21-11222 | • COVER | 1 | SN: 20024-30000 |
|||
| ? | 144-21-11221 | • COVER | 1 | SN: 20006-20021 |
|||
| ? | 01010-31016 | • BOLT | 4 | SN: 20006-30000 |
|||
| ? | 01602-01030 | • WASHER | 4 | SN: 20006-30000 |
|||
| ? | 01010-31020 | • BOLT | 2 | SN: 20006-30000 |
|||
| ? | 01602-01030 | • WASHER | 2 | SN: 20006-30000 |
|||
| ? | 07049-03342 | • PLUG | 6 | SN: 20006- |
|||
| ? | 07049-02430 | • PLUG | 14 | SN: 20006- |
|||
| ? | 145-21-31171 | • CAP | 4 | SN: 20006- |
|||
| ? | 01010-32295 | • BOLT | 8 | SN: 20006- |
|||
| ? | 01602-02268 | • WASHER | 8 | SN: 20006- |
|||
| ? | 144-21-12190 | • CAP | 2 | SN: 20006- |
|||
| ? | 01123-62200 | • STUD | 4 | SN: 20006- |
|||
| ? | 01592-02226 | • NUT | 4 | SN: 20006- |
|||
| ? | 04050-05040 | • PIN | 4 | SN: 20006- |
|||
| ? | 07044-13620 | • PLUG | 2 | SN: 22388- |
|||
| ? | □07044-03620 | • PLUG | 2 | SN: 20006-22387 |
|||
| ? | 07000-03032 | • O-RING | 2 | SN: 20006- |
|||
| ? | 07044-13620 | • PLUG | 2 | SN: 22388- |
|||
| ? | □07044-03620 | • PLUG | 2 | SN: 20006-22387 |
|||
| ? | 07000-03032 | • O-RING | 2 | SN: 20006- |
|||
| ? | 07041-13612 | • PLUG | 2 | SN: 22388- |
|||
| ? | 07041-03612 | • PLUG | 2 | SN: 20032-22387 |
|||
| ? | □135-27-11150 | • PLUG | 2 | SN: 20006-20031 |
|||
| ? | 07000-03032 | • O-RING | 2 | SN: 20006- |
|||
| ? | 07041-13612 | • PLUG | 2 | SN: 22388- |
|||
| ? | 07041-03612 | • PLUG | 2 | SN: 20032-22387 |
|||
| ? | □135-27-11150 | • PLUG | 2 | SN: 20006-20031 |
|||
| ? | 07000-03032 | • O-RING | 2 | SN: 20006- |
|||
| ? | 135-21-11250 | • PLUG | 4 | SN: 20006- |
|||
| ? | 141-21-31220 | • GAUGE | 1 | SN: 20006- |
|||
| ? | 07000-03038 | • O-RING | 1 | SN: 20006- |
|||
| ? | 141-21-31411 | • COVER | 1 | SN: 20006- |
|||
| ? | 135-21-11421 | • GASKET | 1 | SN: 20006- |
|||
| ? | 01010-31435 | • BOLT | 13 | SN: 22388- |
|||
| ? | □01040-31435 | • BOLT | 13 | SN: 20006-22387 |
|||
| ? | 01602-01442 | • WASHER | 13 | SN: 20006- |
|||
| ? | 135-21-11210 | • PLATE | 1 | SN: 20006- |
|||
| ? | 07000-03110 | • O-RING | 1 | SN: 20006- |
|||
| ? | 01010-31630 | • BOLT | 4 | SN: 22388- |
|||
| ? | □01040-31630 | • BOLT | 4 | SN: 20006-22387 |
|||
| ? | 01602-01648 | • WASHER | 4 | SN: 20006- |
|||
| ? | 135-21-11220 | • PLATE | 1 | SN: 20006- |
|||
| ? | 01010-62040 | • BOLT | 4 | SN: 22388- |
|||
| ? | □01040-62040 | • BOLT | 4 | SN: 20006-22387 |
|||
| ? | 01602-02060 | • WASHER | 4 | SN: 20006- |
|||
| ? | 144-21-11453 | • TUBE | 1 | SN: 20024- |
|||
| ? | 144-21-11452 | • TUBE | 1 | SN: 20006-20021 |
|||
| ? | 07000-02015 | • O-RING | 1 | SN: 20006- |
|||
| ? | 07000-02018 | • O-RING | 1 | SN: 20006- |
|||
| ? | 01010-31025 | • BOLT | 2 | SN: 20006- |
|||
| ? | 01602-01030 | • WASHER | 2 | SN: 20006- |
|||
| ? | 141-21-31460 | • TUBE | 1 | SN: 20006- |
|||
| ? | 07000-02015 | • O-RING | 1 | SN: 20006- |
|||
| ? | 07000-02018 | • O-RING | 1 | SN: 20006- |
|||
| ? | 01010-31025 | • BOLT | 2 | SN: 20006- |
|||
| ? | 01602-01030 | • WASHER | 2 | SN: 20006- |
|||
| ? | 01120-31840 | • STUD | 8 | SN: 20006-30000 |
|||
| ? | 01602-01854 | • WASHER | 8 | SN: 20006-30000 |
|||
| ? | 01500-31816 | • NUT | 8 | SN: 20006-30000 |
|||
| ? | 01582-11815 | • NUT | 8 | SN: 20006-30000 |
