| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

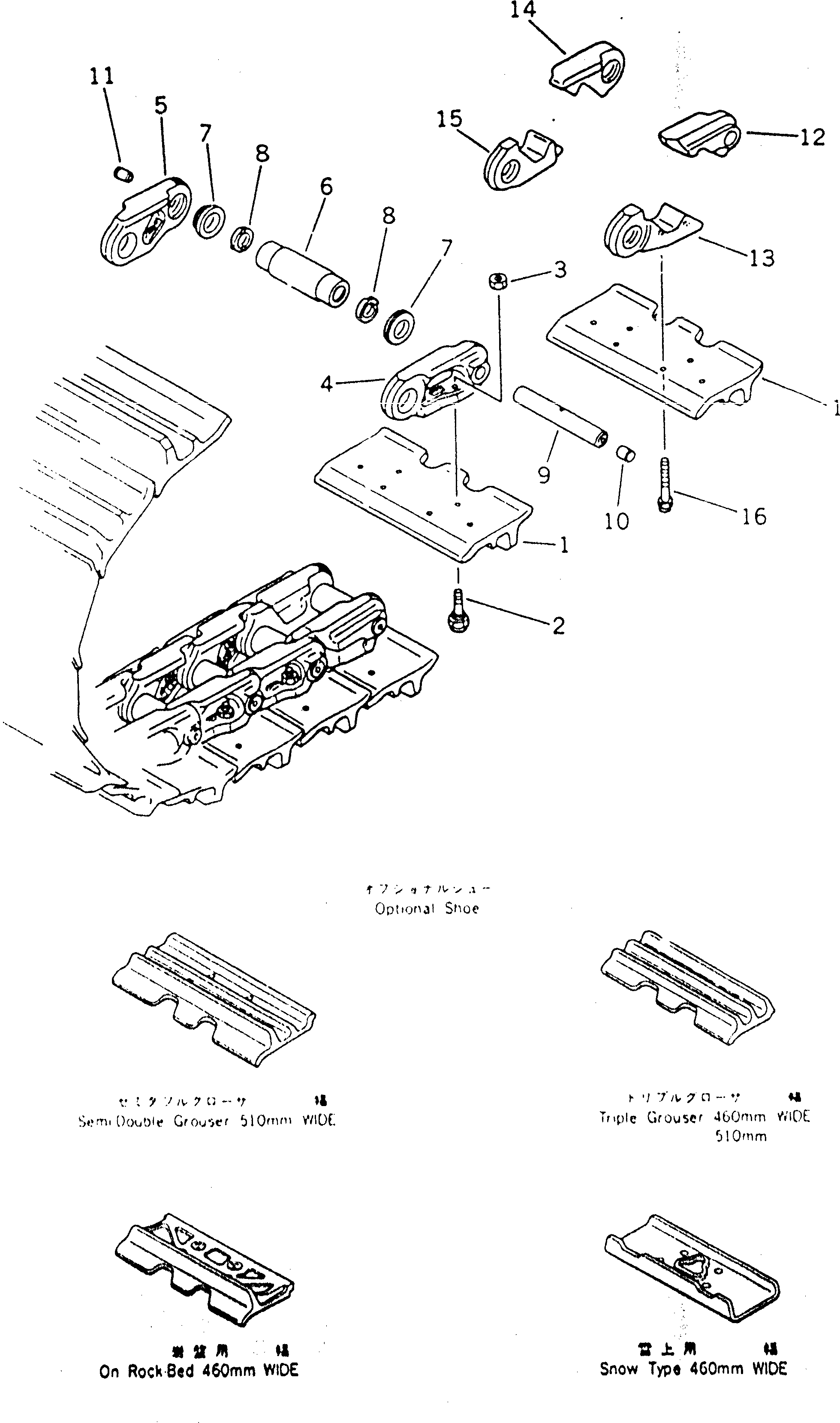

| ? | STANDARD TRACK SHOE | ||||||
| ? | SEMI-DOUBLE 460MM | ||||||
| ? | 141-32-03706 | TRACK SHOE ASS'Y | 1 | SN: 1908-1942 |
|||
| ? | □141-32-03703 | TRACK SHOE ASS'Y | 1 | SN: 1001-1907 |
|||
| ? | 141-32-11313 | • SHOE,TRACK | 78 | SN: 1908-1942 |
|||
| ? | 141-32-11312 | • SHOE,TRACK | 78 | SN: 1001-1907 |
|||
| ? | 207-32-11312 | • BOLT,SHOE (KIT) | 296 | SN: 1908-@ |
|||
| ? | 207-32-11310 | • BOLT,SHOE (KIT) | 296 | SN: 1001-1907 |
|||
| ? | 154-32-21331 | • NUT,SHOE (KIT) | 296 | SN: 1908-@ |
|||
| ? | 154-32-21330 | • NUT,SHOE (KIT) | 296 | SN: 1001-1907 |
|||
| ? | 141-32-00063 | • TRACK LINK ASS'Y | 1 | SN: 1908-@ |
|||
| ? | □141-32-00062 | • TRACK LINK ASS'Y | 1 | SN: 1001-1907 |
|||
| ? | 144-32-11123 | • • LINK,TRACK¤ L.H. | 74 | SN: 1001-@ |
|||
| ? | 144-32-11133 | • • LINK,TRACK¤ R.H. | 74 | SN: 1001-@ |
|||
| ? | 144-32-21142 | • • BUSHING | 78 | SN: 1001-@ |
|||
| ? | 144-32-21161 | • • SEAL ASS'Y | 156 | SN: 1001-@ |
|||
| ? | 144-32-21191 | • • SPACER | 156 | SN: 1001-@ |
|||
| ? | 144-32-21151 | • • PIN | 78 | SN: 1908-@ |
|||
| ? | 144-32-21150 | • • PIN | 78 | SN: 1001-1907 |
|||
| ? | 07059-11830 | • • PLUG,LARGE | 78 | SN: 1908-@ |
|||
| ? | □198-32-11292 | • • PLUG,LARGE | 78 | SN: 1001-1907 |
|||
| ? | 07059-20721 | • • PLUG,SMALL | 78 | SN: 1908-@ |
|||
| ? | □198-32-11311 | • • PLUG,SMALL | 78 | SN: 1001-1907 |
|||
| ? | 144-32-21222 | • • LINK,L.H.¤ PIN SIDE | 4 | SN: 1001-@ |
|||
| ? | 144-32-21232 | • • LINK,L.H.¤ BUSHING SIDE | 4 | SN: 1001-@ |
|||
| ? | 144-32-21322 | • • LINK,R.H.¤ PIN SIDE | 4 | SN: 1001-@ |
|||
| ? | 144-32-21332 | • • LINK,R.H.¤ BUSHING SIDE | 4 | SN: 1001-@ |
|||
| ? | 144-32-21342 | • • BOLT,MASTER LINK | 16 | SN: 1001-@ |
|||
| ? | SERVICE KIT | ||||||
| ? | 207-32-05002 | SHOE BOLT AND NUT K. | 1 | SN: 1908-@ |
|||
| ? | □207-32-05001 | SHOE BOLT AND NUT K. | 1 | SN: 1001-1907 |
|||
| ? | 207-32-11312 | • BOLT,SHOE | 30 | SN: 1908-@ |
|||
| ? | 207-32-11310 | • BOLT,SHOE | 30 | SN: 1001-1907 |
|||
| ? | 154-32-21331 | • NUT,SHOE | 30 | SN: 1908-@ |
|||
| ? | 154-32-21330 | • NUT,SHOE | 30 | SN: 1001-1907 |
|||
| ? | OPTIONAL TRACK SHOE | ||||||
| ? | SEMI-DOUBLE 510MM | ||||||
| ? | 141-32-03716 | TRACK SHOE ASS'Y | 1 | SN: 1908-1942 |
|||
| ? | □141-32-03713 | TRACK SHOE ASS'Y | 1 | SN: 1001-1907 |
|||
| ? | 141-32-11342 | • SHOE,TRACK | 78 | SN: 1908-1942 |
|||
| ? | 141-32-11341 | • SHOE,SHOE | 78 | SN: 1001-1907 |
|||
| ? | TRIPLE 460MM | ||||||
| ? | 141-32-03726 | TRACK SHOE ASS'Y | 1 | SN: 1908-@ |
|||
| ? | □141-32-03723 | TRACK SHOE ASS'Y | 1 | SN: 1001-1907 |
|||
| ? | 141-32-11292 | • SHOE,TRACK | 78 | SN: 1908-@ |
|||
| ? | 141-32-11291 | • SHOE,TRACK | 78 | SN: 1001-1907 |
|||
| ? | TRIPLE 510MM | ||||||
| ? | 141-32-03756 | TRACK SHOE ASS'Y | 1 | SN: 1908-@ |
|||
| ? | □141-32-03753 | TRACK SHOE ASS'Y | 1 | SN: 1001-1907 |
|||
| ? | 141-32-11351 | • SHOE,TRACK | 78 | SN: 1908-@ |
|||
| ? | 141-32-11350 | • SHOE,TRACK | 78 | SN: 1001-1907 |
|||
| ? | ON-ROCKBED 460MM | ||||||
| ? | 141-32-03745 | TRACK SHOE ASS'Y | 1 | SN: 1908-1942 |
|||
| ? | □141-32-03743 | TRACK SHOE ASS'Y | 1 | SN: 1001-1907 |
|||
| ? | 141-32-11320 | • SHOE,TRACK | 78 | SN: 1001-1942 |
|||
| ? | SNOW 460MM | ||||||
| ? | 141-32-03765 | TRACK SHOE ASS'Y | 1 | SN: 1908-@ |
|||
| ? | □141-32-03763 | TRACK SHOE ASS'Y | 1 | SN: 1001-1907 |
|||
| ? | 141-32-11332 | • SHOE,TRACK | 78 | SN: 1908-@ |
|||
| ? | 141-32-11331 | • SHOE,TRACK | 78 | SN: 1001-1907 |
|||
| ? | 0.10MM OVERSIZE | ||||||
| ? | 144-98-09170 | BUSHING | A/R | SN: 1001-@ |
|||
| ? | 144-98-09071 | PIN | A/R | SN: 1908-@ |
|||
| ? | 144-98-09070 | PIN | A/R | SN: 1001-1907 |
|||
| ? | 0.18MM OVERSIZE | ||||||
| ? | 144-98-09180 | BUSHING | A/R | SN: 1001-@ |
|||
| ? | 144-98-09081 | PIN | A/R | SN: 1908-@ |
|||
| ? | 144-98-09080 | PIN | A/R | SN: 1001-1907 |
