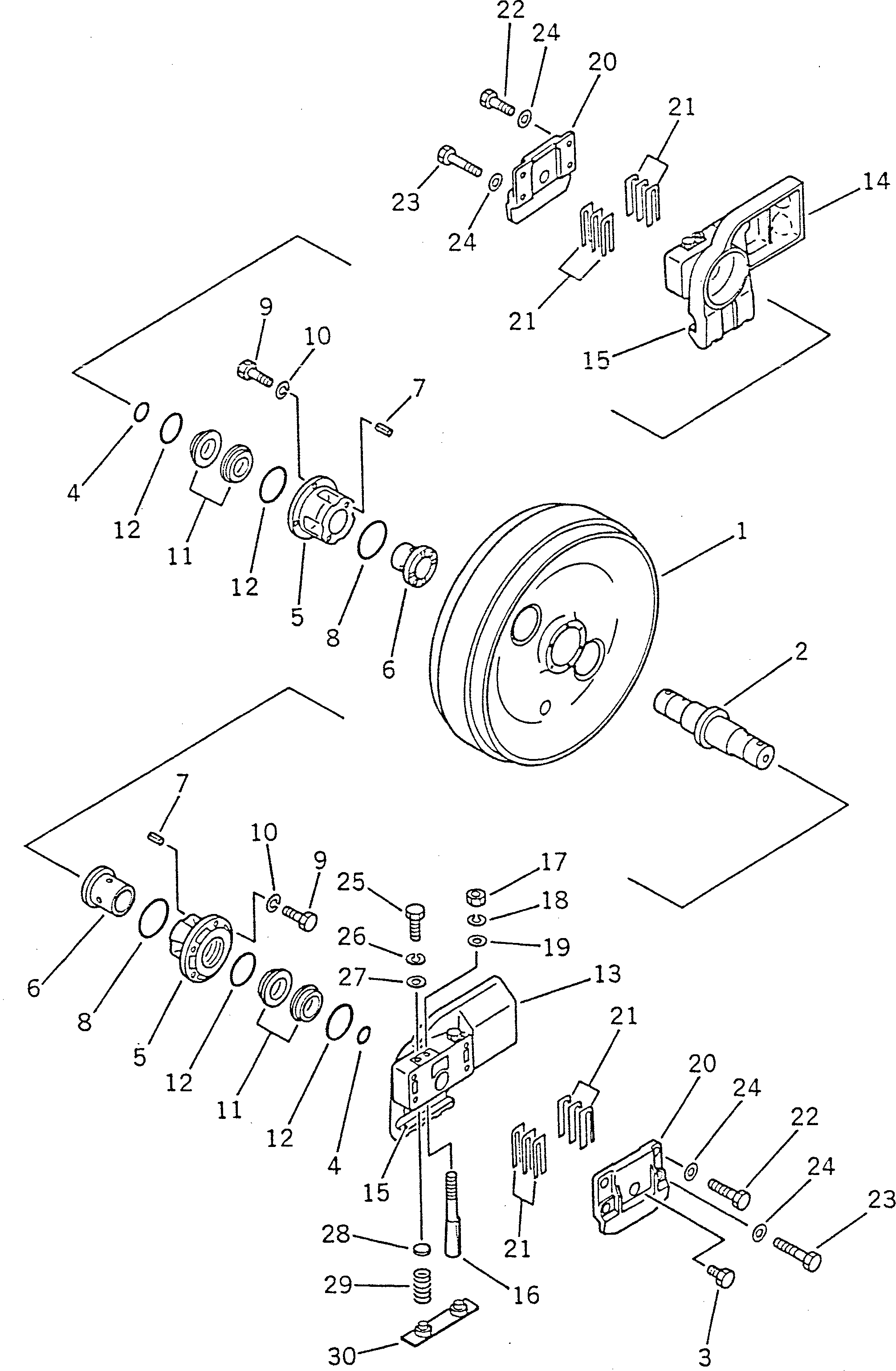

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 142-30-00011 | FRONT IDLER ASS'Y,L.H. | 1 | SN: 1865- |
|||
| ? | □142-30-00010 | FRONT IDLER ASS'Y,L.H. | 1 | SN: 1001-1864 |
|||
| ? | 142-30-00021 | FRONT IDLER ASS'Y,R.H. | 1 | SN: 1865- |
|||
| ? | □142-30-00020 | FRONT IDLER ASS'Y,R.H. | 1 | SN: 1001-1864 |
|||
| ? | 141-30-33111 | • IDLER | 1 | SN: 1001- |
|||
| ? | 141-30-33122 | • SHAFT | 1 | SN: 1001- |
|||
| ? | 07052-21624 | • PLUG | 1 | SN: 1001- |
|||
| ? | 07000-03052 | • O-RING | 2 | SN: 1001- |
|||
| ? | 141-30-00543 | • BUSHING ASS'Y | 2 | SN: 1001- |
|||
| ? | 141-30-36144 | • • BUSHING | 1 | SN: 1001- |
|||
| ? | 141-30-36150 | • • BUSHING | 1 | SN: 1001- |
|||
| ? | 141-30-36310 | • • PIN | 2 | SN: 1001- |
|||
| ? | 07000-05105 | • O-RING | 2 | SN: 1001- |
|||
| ? | 01010-51030 | • BOLT | 12 | SN: 1001- |
|||
| ? | 01602-21030 | • WASHER,SPRING | 12 | SN: 1001- |
|||
| ? | 141-30-00616 | • FLOATING SEAL ASS'Y | 2 | SN: 1865- |
|||
| ? | □141-30-00615 | • FLOATING SEAL ASS'Y | 2 | SN: 1001-1864 |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1865- |
|||
| ? | ☆ | • • RING,SEAL | 2 | SN: 1001-1864 |
|||
| ? | ☆ | • • O-RING | 2 | SN: 1001- |
|||
| ? | 142-30-13111 | • BRACKET ASS'Y,L.H. OUTER AND R.H. INNER | 1 | SN: 1001- |
|||
| ? | 142-30-13121 | • BRACKET ASS'Y,R.H. OUTER AND L.H. INNER | 1 | SN: 1001- |
|||
| ? | 141-30-33170 | • • PLATE (WELDED) | 1 | SN: 1001- |
|||
| ? | 135-30-33170 | • BOLT | 2 | SN: 1001- |
|||
| ? | 01582-11613 | • NUT | 2 | SN: 1001- |
|||
| ? | 01602-21648 | • WASHER,SPRING | 2 | SN: 1001- |
|||
| ? | 01643-31645 | • WASHER | 2 | SN: 1001- |
|||
| ? | 142-30-13150 | • COVER | 2 | SN: 1001- |
|||
| ? | 135-30-33161 | • SHIM | 24 | SN: 1001- |
|||
| ? | 01010-51645 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01010-51660 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01643-31645 | • WASHER | 8 | SN: 1001- |
|||
| ? | 01016-51640 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01602-21648 | • WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 01640-21626 | • WASHER | 4 | SN: 1001- |
|||
| ? | 135-30-33210 | PLATE | 4 | SN: 1001- |
|||
| ? | 135-30-33280 | SPRING | 4 | SN: 1001- |
|||
| ? | 142-30-13160 | PLATE | 2 | SN: 1001- |
