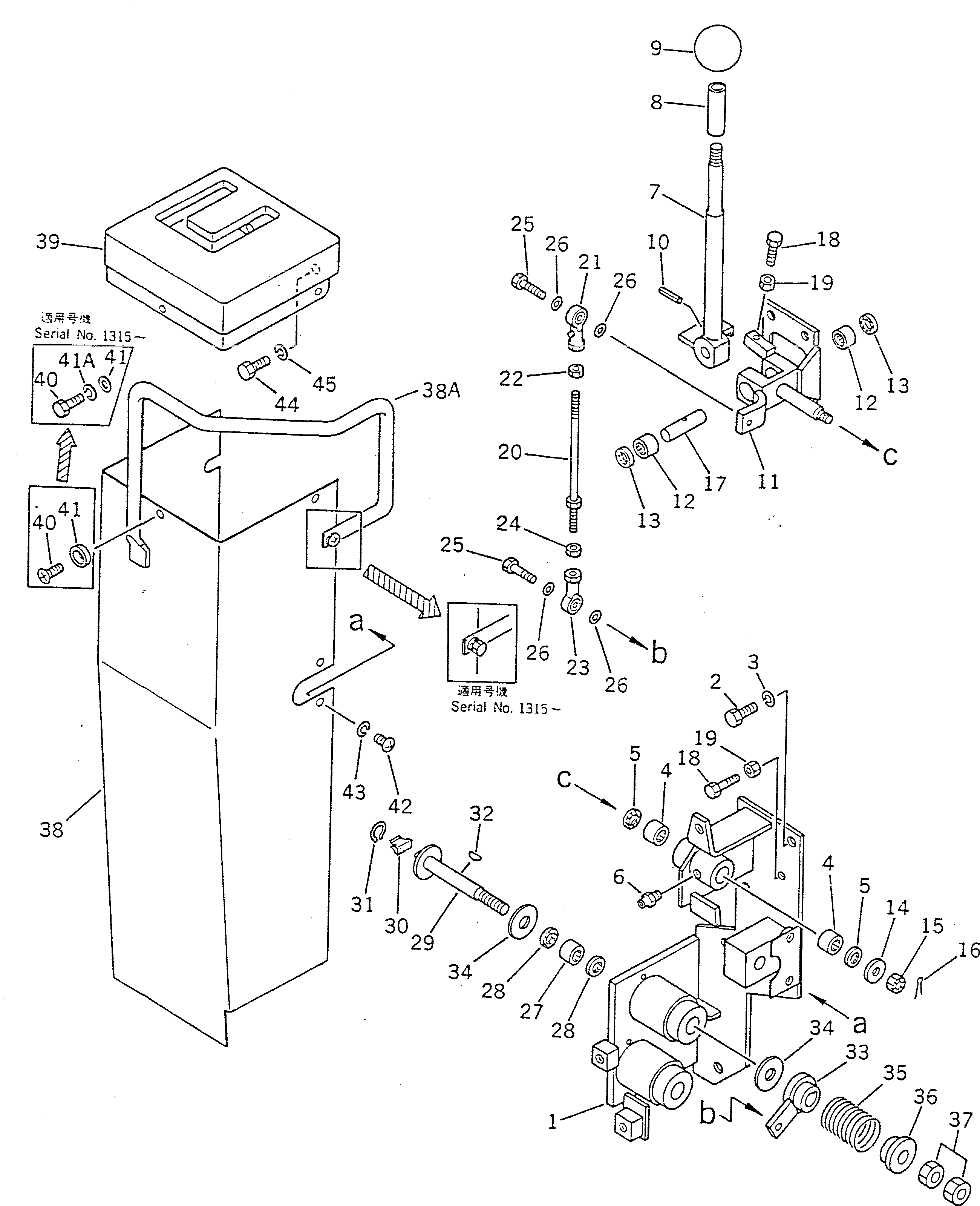

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 142-43-13111 | BRACKET | 1 | SN: 1001- |
|||
| ? | 01010-51025 | BOLT | 5 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 5 | SN: 1001- |
|||
| ? | 702-16-11490 | BEARING | 2 | SN: 1001- |
|||
| ? | 702-16-11510 | SEAL | 2 | SN: 1001- |
|||
| ? | 07020-00000 | FITTING,GREASE | 1 | SN: 1001- |
|||
| ? | 142-43-13132 | LEVER | 1 | SN: 1001- |
|||
| ? | 09361-01460 | BUSHING | 1 | SN: 1001- |
|||
| ? | 201-43-28160 | KNOB | 1 | SN: 1001- |
|||
| ? | 04025-00332 | PIN,SPRING | 1 | SN: 1001- |
|||
| ? | 142-43-13123 | YOKE | 1 | SN: 1001- |
|||
| ? | 702-16-11490 | BEARING | 2 | SN: 1001- |
|||
| ? | 702-16-11510 | SEAL,OIL | 2 | SN: 1001- |
|||
| ? | 113-43-23230 | WASHER | 1 | SN: 1001- |
|||
| ? | 01590-10809 | NUT | 1 | SN: 1001- |
|||
| ? | 04050-12015 | PIN,COTTER | 1 | SN: 1001- |
|||
| ? | 113-43-23410 | PIN | 1 | SN: 1001- |
|||
| ? | 01016-50830 | BOLT | 3 | SN: 1001- |
|||
| ? | 01580-10806 | NUT | 3 | SN: 1001- |
|||
| ? | 04248-30817 | ROD | 1 | SN: 1001- |
|||
| ? | 04250-60847 | END | 1 | SN: 1001- |
|||
| ? | 01508-40805 | NUT | 1 | SN: 1001- |
|||
| ? | 04250-40847 | END | 1 | SN: 1001- |
|||
| ? | 01580-10806 | NUT | 1 | SN: 1001- |
|||
| ? | 01010-50825 | BOLT | 2 | SN: 1001- |
|||
| ? | 04254-00823 | SPACER | 4 | SN: 1001- |
|||
| ? | 702-16-11490 | BEARING | 1 | SN: 1001- |
|||
| ? | 702-16-11510 | SEAL,OIL | 2 | SN: 1001- |
|||
| ? | 142-43-13161 | SHAFT | 1 | SN: 1001- |
|||
| ? | 142-43-13180 | SPRING | 1 | SN: 1001- |
|||
| ? | 04064-01610 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 04010-00516 | KEY | 1 | SN: 1001- |
|||
| ? | 142-43-13170 | LEVER | 1 | SN: 1001- |
|||
| ? | 10E-43-11160 | FACING | 2 | SN: 1001- |
|||
| ? | 10E-43-11190 | SPRING | 1 | SN: 1001- |
|||
| ? | 10E-43-11180 | RETAINER | 1 | SN: 1001- |
|||
| ? | 01580-11210 | NUT | 2 | SN: 1001- |
|||
| ? | 142-43-13232 | COVER | 1 | SN: 1001- |
|||
| ? | 142-43-13250 | HANDLE | 1 | SN: 1001- |
|||
| ? | 142-43-13241 | GUIDE | 1 | SN: 1001- |
|||
| ? | 01010-50820 | BOLT | 8 | SN: 1315- |
|||
| ? | □01224-40820 | SCREW | 8 | SN: 1001-1314 |
|||
| ? | 01643-30823 | WASHER | 8 | SN: 1315- |
|||
| ? | □113-54-22140 | WASHER | 8 | SN: 1001-1314 |
|||
| ? | 01602-20825 | WASHER,SPRING | 8 | SN: 1315- |
|||
| ? | 01220-40816 | SCREW | 2 | SN: 1001- |
|||
| ? | 01602-20825 | WASHER,SPRING | 2 | SN: 1001- |
|||
| ? | 01010-51025 | BOLT | 2 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 2 | SN: 1001- |
