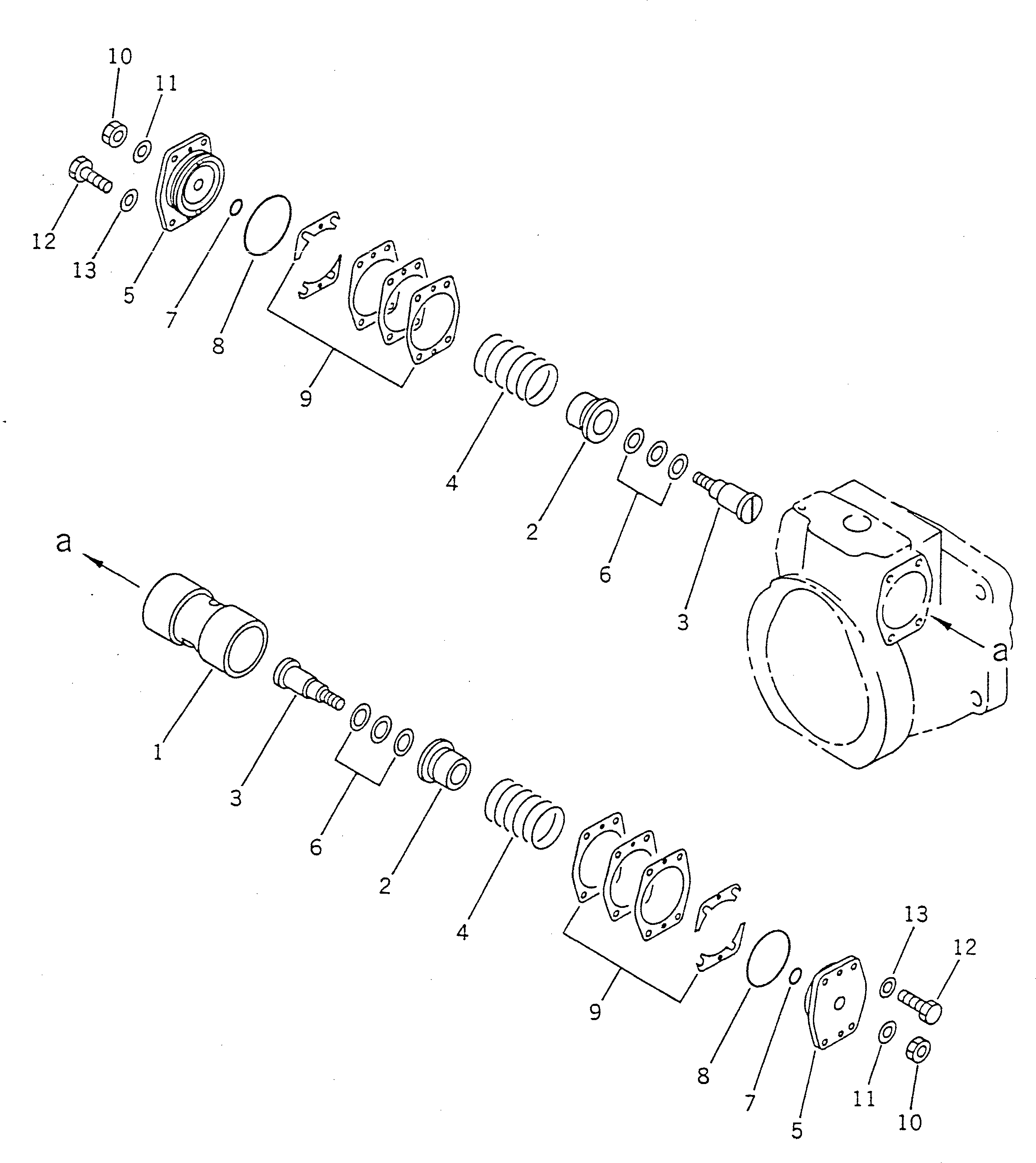

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (720-68-20203) | HST ASS'Y | 1 | SN: 1400- |
|||
| ? | (☒720-68-20202) | HST ASS'Y | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-20201) | HST ASS'Y | 1 | SN: (1400-1715) |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.251 TO 262. | ||||||
| ? | (720-68-22001) | • PUMP AND SERVO ASS'Y | 1 | SN: 1400- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.252A TO 253A. | ||||||
| ? | (720-68-22101) | • • HST ASS'Y | 1 | SN: 1400- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.252A AND 253A. | ||||||
| ? | (★720-68-22510) | • • • PISTON | 1 | SN: 1400- |
|||
| ? | (★708-67-14120) | • • • RETAINER | 2 | SN: 1400- |
|||
| ? | (★708-68-14540) | • • • ROD | 2 | SN: 1400- |
|||
| ? | (★720-27-14130) | • • • SPRING | 2 | SN: 1400- |
|||
| ? | (★720-68-22550) | • • • CAP | 2 | SN: 1400- |
|||
| ? | (★720-98-05230) | • • • SHIM KIT | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM | 3 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM | 3 | SN: 1400- |
|||
| ? | (★07000-02016) | • • • O-RING | 2 | SN: 1400- |
|||
| ? | 07000-02075 | • • • O-RING | 2 | SN: 1400- |
|||
| ? | (★720-98-05240) | • • • SHIM KIT | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM¤ 0.1MM | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM¤ 0.1MM | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM¤ 0.15MM | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM¤ 0.2MM | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM¤ 0.5MM | 3 | SN: 1400- |
|||
| ? | (★01580-11411) | • • • NUT | 2 | SN: 1400- |
|||
| ? | (★01643-31445) | • • • WASHER | 2 | SN: 1400- |
|||
| ? | 01016-51035 | • • • BOLT | 8 | SN: 1400- |
|||
| ? | 01643-31032 | • • • WASHER | 8 | SN: 1400- |
