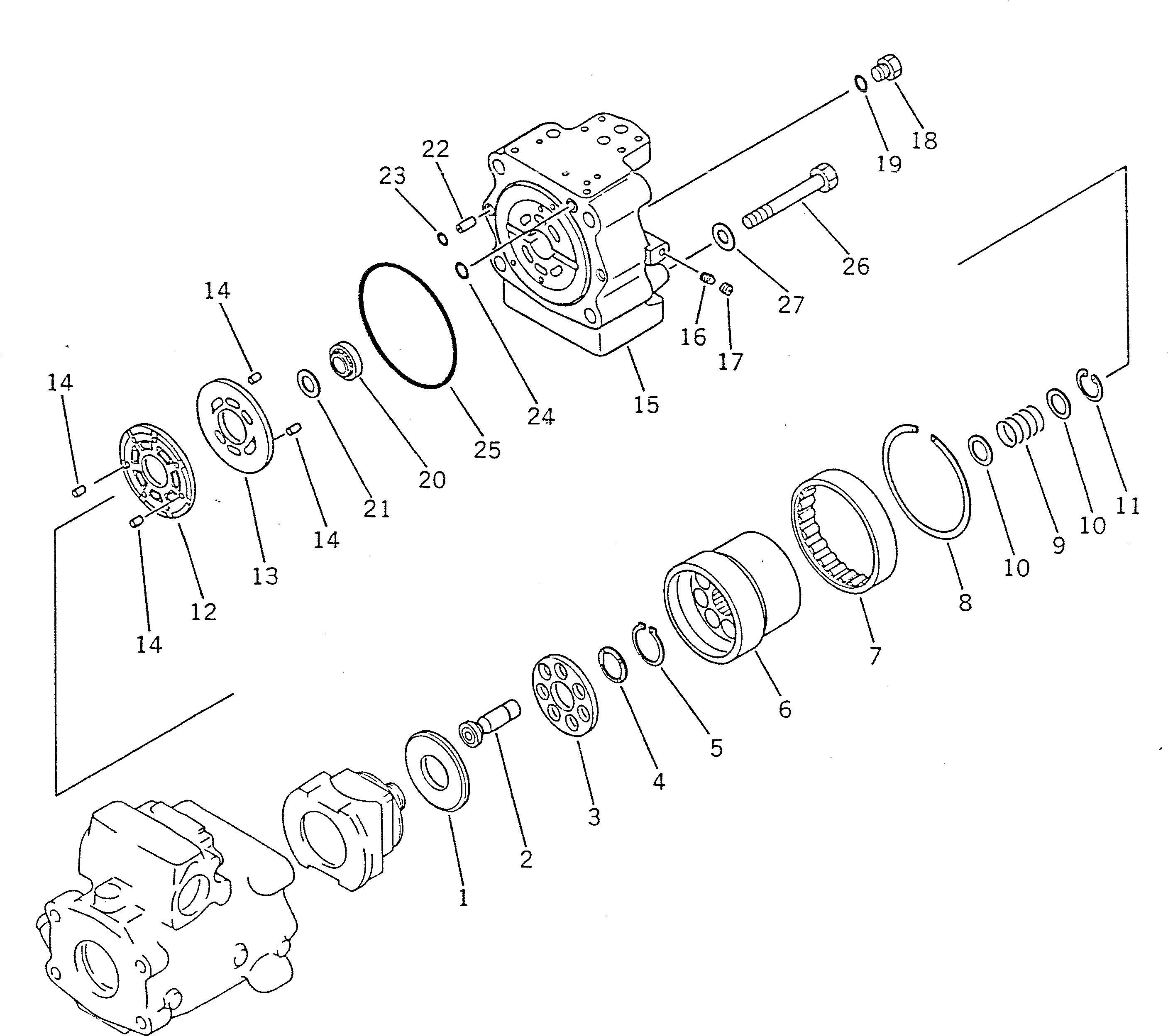

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (720-68-10202) | HST ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-10201) | HST ASS'Y | 1 | SN: (1184-1399) |
|||
| ? | (☒720-68-10200) | HST ASS'Y | 1 | SN: (1001-1183) |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.251 TO 262. | ||||||
| ? | (720-68-12000) | • PUMP AND SERVO ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.252 TO 254. | ||||||
| ? | (720-68-12100) | • • PUMP ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.252 AND 253. | ||||||
| ? | (★720-68-11310) | • • • PLATE | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11321) | • • • PISTON SUB ASS'Y | 7 | SN: 1001-1399 |
|||
| ? | (☒720-68-11320) | • • • PISTON SUB ASS'Y | 7 | SN: (1001-1306) |
|||
| ? | (★720-68-11350) | • • • RETAINER | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-05461) | • • • RETAINER KIT | 1 | SN: 1286-1399 |
|||
| ? | (★720-98-05460) | • • • RETAINER KIT | 1 | SN: 1001-1285 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1286-1399 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001-1285 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1286-1399 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001-1285 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1286-1399 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001-1285 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1286-1399 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001-1285 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1286-1399 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001-1285 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1286-1399 |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001-1285 |
|||
| ? | (★720-68-11430) | • • • RING,SNAP | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11440) | • • • BARREL | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11460) | • • • BEARING | 1 | SN: 1001-1399 |
|||
| ? | (★04071-00175) | • • • RING | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-19590) | • • • SPRING | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11470) | • • • WASHER | 2 | SN: 1001-1399 |
|||
| ? | (★04065-04218) | • • • RING | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11580) | • • • PLATE | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11490) | • • • PLATE | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-19610) | • • • PIN | 4 | SN: 1001-1399 |
|||
| ? | (★720-68-05420) | • • • END CAP ASS'Y | 4 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • CAP | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • PLUG | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • SCREW | 1 | SN: 1001-1399 |
|||
| ? | 720-68-19530 | • • • PLUG | 1 | SN: 1001-1399 |
|||
| ? | 07002-11823 | • • • O-RING | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-19540) | • • • BEARING | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-12320) | • • • COLLAR | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11130) | • • • JOINT | 2 | SN: 1001-1399 |
|||
| ? | (★07000-12012) | • • • O-RING | 2 | SN: 1001-1399 |
|||
| ? | (★07000-02015) | • • • O-RING | 1 | SN: 1001-1399 |
|||
| ? | (★07000-05180) | • • • O-RING | 1 | SN: 1001-1399 |
|||
| ? | (★01011-62035) | • • • BOLT | 4 | SN: 1001-1399 |
|||
| ? | (★01643-32060) | • • • WASHER | 4 | SN: 1001-1399 |
