| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (720-68-20103) | HST ASS'Y | 1 | SN: 1400- |
|||
| ? | (☒720-68-20102) | HST ASS'Y | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-20101) | HST ASS'Y | 1 | SN: (1400-1715) |
|||
| ? | (720-68-10101) | HST ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-10100) | HST ASS'Y | 1 | SN: (1001-1399) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.231 TO 242. | ||||||
| ? | (720-68-23003) | • MOTOR AND SERVO A. | 1 | SN: 1400- |
|||
| ? | (☒720-68-23002) | • MOTOR AND SERVO A. | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-23001) | • MOTOR AND SERVO A. | 1 | SN: (1400-1715) |
|||
| ? | (720-68-13001) | • MOTOR AND SERVO A. | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-13000) | • MOTOR AND SERVO A. | 1 | SN: (1001-1399) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.235 TO 237. | ||||||

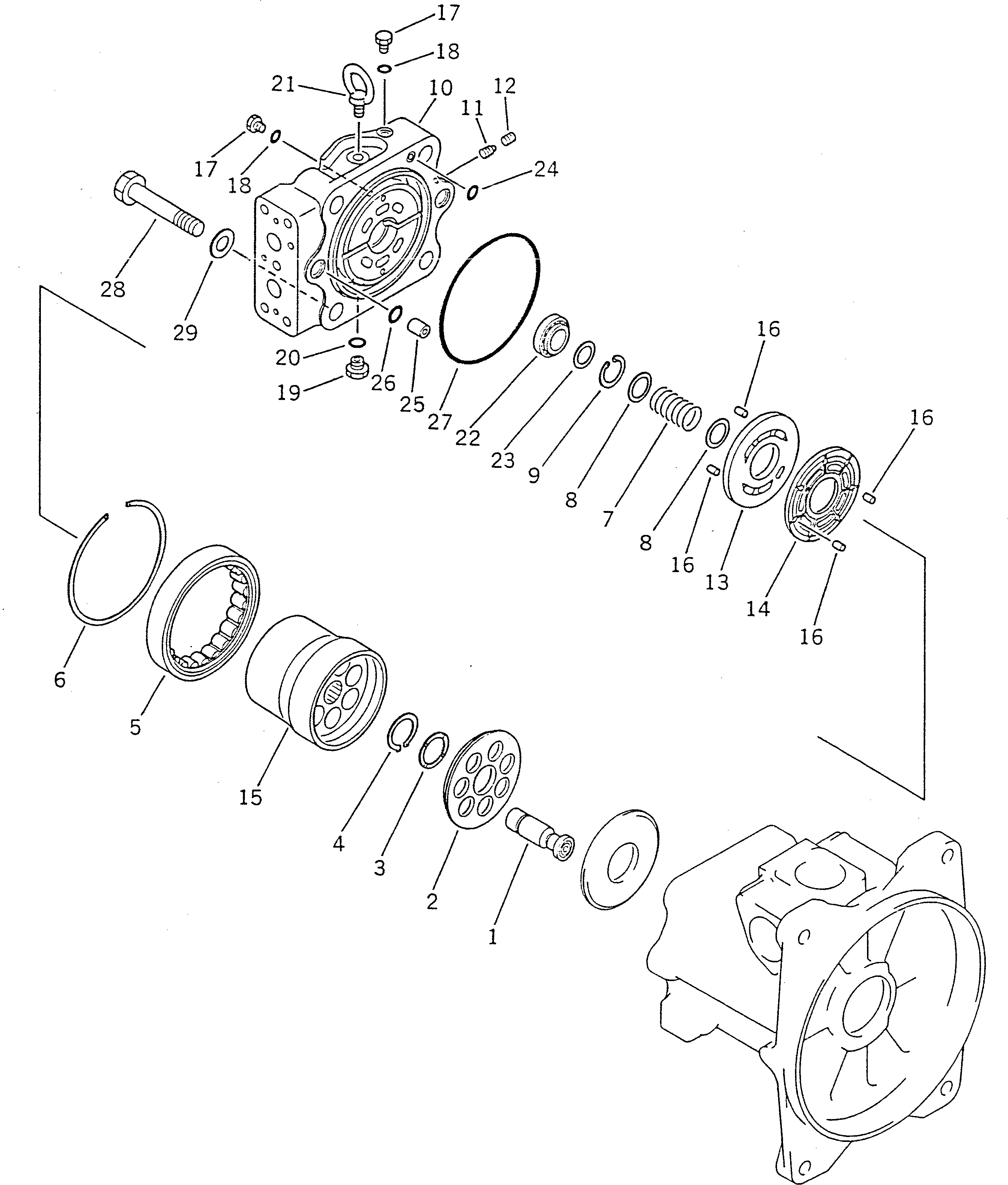

| ? | (720-68-23103) | • • MOTOR ASS'Y | 1 | SN: 1400- |
|||
| ? | (☒720-68-23102) | • • MOTOR ASS'Y | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-23101) | • • MOTOR ASS'Y | 1 | SN: (1400-1715) |
|||
| ? | (720-68-13101) | • • MOTOR ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-13100) | • • MOTOR ASS'Y | 1 | SN: (1001-1399) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.235 AND 236. | ||||||
| ? | 720-68-13321 | • • • PISTON SUB ASS'Y | 7 | SN: 1001- |
|||
| ? | (☒720-68-13320) | • • • PISTON SUB ASS'Y | 7 | SN: (1001-1306) |
|||
| ? | 720-68-13350 | • • • RETAINER | 1 | SN: 1001- |
|||
| ? | (★720-98-05470) | • • • RETAINER KIT | 1 | SN: 1001- |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001- |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001- |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001- |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001- |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001- |
|||
| ? | ☆ | • • • • RETAINER | 1 | SN: 1001- |
|||
| ? | (★720-68-13430) | • • • RING,SNAP | 1 | SN: 1001- |
|||
| ? | (★720-68-13460) | • • • BEARING | 1 | SN: 1001- |
|||
| ? | (★04071-00220) | • • • RING | 1 | SN: 1001- |
|||
| ? | (★720-68-19680) | • • • SPRING | 1 | SN: 1001- |
|||
| ? | (★720-68-13470) | • • • WASHER | 2 | SN: 1001- |
|||
| ? | (★04065-05220) | • • • RING | 1 | SN: 1001- |
|||
| ? | (★720-98-05810) | • • • CYLINDER BARREL A. | 1 | SN: 1001- |
|||
| ? | (★720-98-05281) | • • • • END CAP ASS'Y | 1 | SN: 1001- |
|||
| ? | (☒720-98-05280) | • • • • END CAP ASS'Y | 1 | SN: (1400-1779) |
|||
| ? | (☒720-68-05350) | • • • • END CAP ASS'Y | 1 | SN: (1001-1399) |
|||
| ? | ☆ | • • • • • CAP | 1 | SN: 1001- |
|||
| ? | (☒720-68-23120) | • • • • • CAP | 1 | SN: (1400-1779) |
|||
| ? | (☒720-68-13120) | • • • • • CAP | 1 | SN: (1001-1399) |
|||
| ? | ☆ | • • • • • PLUG | 2 | SN: 1001- |
|||
| ? | ☆ | • • • • SCREW | 2 | SN: 1001- |
|||
| ? | (★720-68-13491) | • • • • PLATE | 1 | SN: 1001- |
|||
| ? | (☒720-68-13490) | • • • • PLATE | 1 | SN: (1001-1779) |
|||
| ? | (★720-68-13581) | • • • • PLATE | 1 | SN: 1001- |
|||
| ? | (☒720-68-13580) | • • • • PLATE | 1 | SN: (1001-1779) |
|||
| ? | 720-68-13442 | • • • • BARREL | 1 | SN: 1001- |
|||
| ? | (☒720-68-13441) | • • • • BARREL | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-13440) | • • • • BARREL | 1 | SN: (1001-1715) |
|||
| ? | (★720-68-19610) | • • • PIN | 4 | SN: 1001- |
|||
| ? | 07040-11007 | • • • PLUG | 2 | SN: 1001- |
|||
| ? | 07002-01023 | • • • O-RING | 2 | SN: 1001- |
|||
| ? | 07044-12412 | • • • PLUG | 1 | SN: 1001- |
|||
| ? | 07002-02434 | • • • O-RING | 1 | SN: 1001- |
|||
| ? | 04530-01628 | • • • BOLT | 1 | SN: 1001- |
|||
| ? | (★720-68-19640) | • • • BEARING | 1 | SN: 1001- |
|||
| ? | (★720-68-11470) | • • • WASHER | 1 | SN: 1001- |
|||
| ? | (★07000-02016) | • • • O-RING | 1 | SN: 1001- |
|||
| ? | (★720-68-13130) | • • • JOINT | 2 | SN: 1001- |
|||
| ? | (★07000-13028) | • • • O-RING | 2 | SN: 1001- |
|||
| ? | (★720-68-19630) | • • • O-RING | 1 | SN: 1001- |
|||
| ? | (★01011-62720) | • • • BOLT | 4 | SN: 1001- |
|||
| ? | (★01643-32780) | • • • WASHER | 4 | SN: 1001- |
