| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (720-68-20103) | HST ASS'Y | 1 | SN: 1400- |
|||
| ? | (☒720-68-20102) | HST ASS'Y | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-20101) | HST ASS'Y | 1 | SN: (1400-1715) |
|||
| ? | (720-68-10101) | HST ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-10100) | HST ASS'Y | 1 | SN: (1001-1399) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.231 TO 242. | ||||||
| ? | (720-68-21001) | • PUMP AND SERVO ASS'Y | 1 | SN: 1400- |
|||
| ? | (720-68-11000) | • PUMP AND SERVO ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.232 TO 234. | ||||||

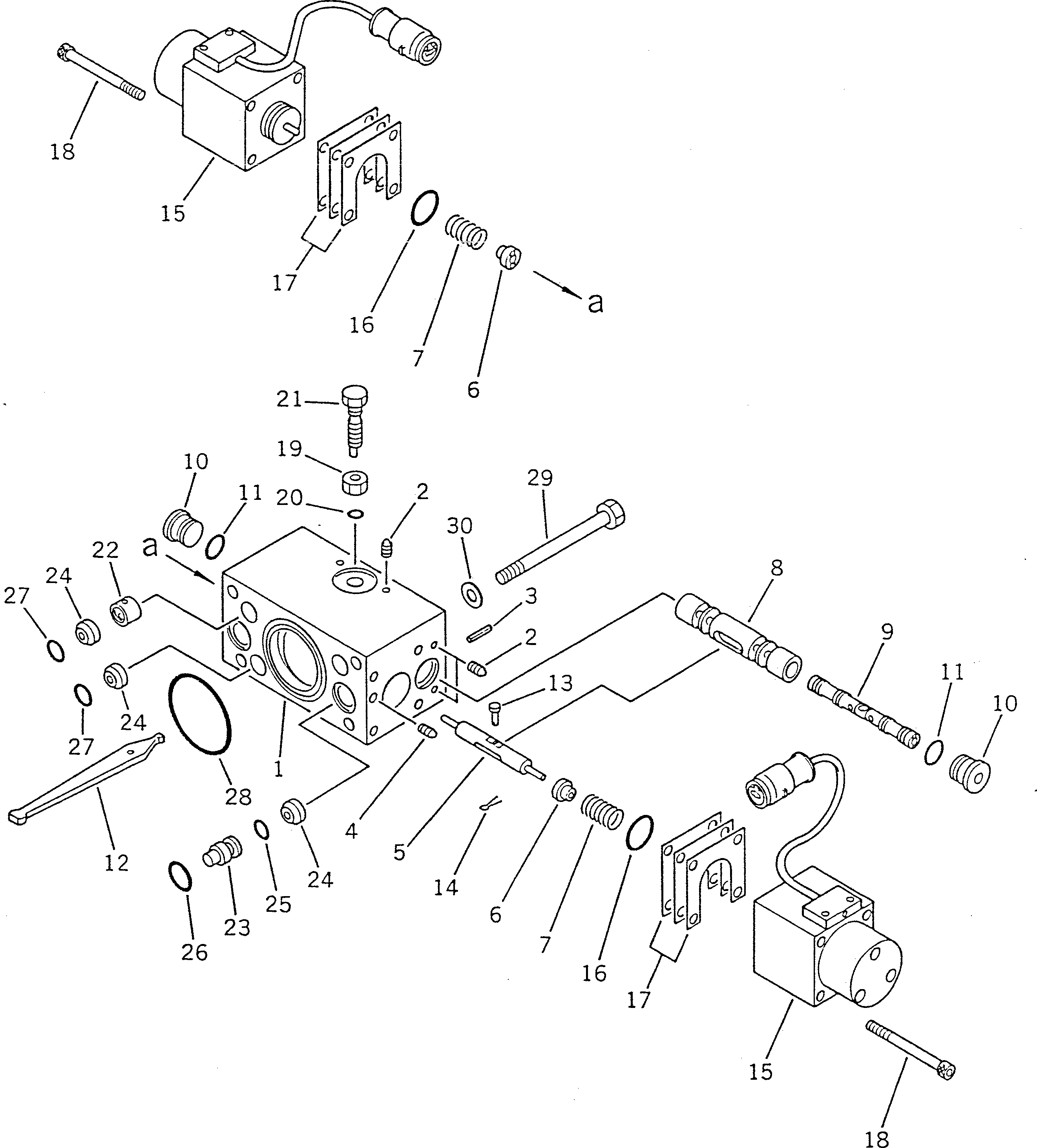

| ? | 720-68-12700 | • • SERVO VALVE ASS'Y | 1 | SN: 1400- |
|||
| ? | 720-68-11700 | • • SERVO VALVE ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | (★720-98-05650) | • • • BODY ASS'Y | 1 | SN: 1001- |
|||
| ? | ☆ | • • • • BODY | 1 | SN: 1001- |
|||
| ? | ☆ | • • • • PLUG | 7 | SN: 1001- |
|||
| ? | ☆ | • • • • PIN | 4 | SN: 1001- |
|||
| ? | ☆ | • • • • PLUG | 1 | SN: 1001- |
|||
| ? | (★720-68-11720) | • • • PISTON | 1 | SN: 1001- |
|||
| ? | (★720-68-11770) | • • • GUIDE | 2 | SN: 1001- |
|||
| ? | (★720-68-11760) | • • • SPRING | 2 | SN: 1001- |
|||
| ? | (★720-68-11930) | • • • SLEEVE | 1 | SN: 1001- |
|||
| ? | (★720-68-11750) | • • • SPOOL | 1 | SN: 1001- |
|||
| ? | (★720-68-11790) | • • • PLUG | 2 | SN: 1001- |
|||
| ? | (★07000-02012) | • • • O-RING | 2 | SN: 1001- |
|||
| ? | (★720-68-12710) | • • • ARM | 1 | SN: 1400- |
|||
| ? | (★720-68-11740) | • • • ARM | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-19890) | • • • PIN | 1 | SN: 1001- |
|||
| ? | (★04050-11008) | • • • PIN | 1 | SN: 1001- |
|||
| ? | 720-68-11810 | • • • SOLENOID ASS'Y | 2 | SN: 1001- |
|||
| ? | 07000-02018 | • • • O-RING | 2 | SN: 1001- |
|||
| ? | (★720-98-05690) | • • • SHIM KIT | 2 | SN: 1001- |
|||
| ? | 720-68-11880 | • • • • SHIM¤ 0.1MM | 5 | SN: 1001- |
|||
| ? | 720-68-11870 | • • • • SHIM¤ 0.15MM | 5 | SN: 1001- |
|||
| ? | 720-68-11860 | • • • • SHIM¤ 0.2MM | 4 | SN: 1001- |
|||
| ? | 720-68-19750 | • • • BOLT | 8 | SN: 1001- |
|||
| ? | (★720-68-11910) | • • • NUT | 1 | SN: 1001- |
|||
| ? | (★07002-00823) | • • • O-RING | 1 | SN: 1001- |
|||
| ? | (★720-68-11890) | • • • BOLT | 1 | SN: 1001- |
|||
| ? | 720-68-12721 | • • • ORIFICE | 2 | SN: 1400- |
|||
| ? | 720-68-11841 | • • • ORIFICE | 2 | SN: 1001-1399 |
|||
| ? | 720-68-11830 | • • • PIN | 2 | SN: 1001- |
|||
| ? | 720-68-11920 | • • • FILTER | 5 | SN: 1001- |
|||
| ? | 07000-02010 | • • • O-RING | 2 | SN: 1001- |
|||
| ? | 07000-02016 | • • O-RING | 2 | SN: 1001- |
|||
| ? | 07000-02010 | • • O-RING | 3 | SN: 1001- |
|||
| ? | 720-68-19730 | • • O-RING | 1 | SN: 1001- |
|||
| ? | 01010-30875 | • • BOLT | 4 | SN: 1001- |
|||
| ? | 01643-50823 | • • WASHER | 4 | SN: 1001- |
