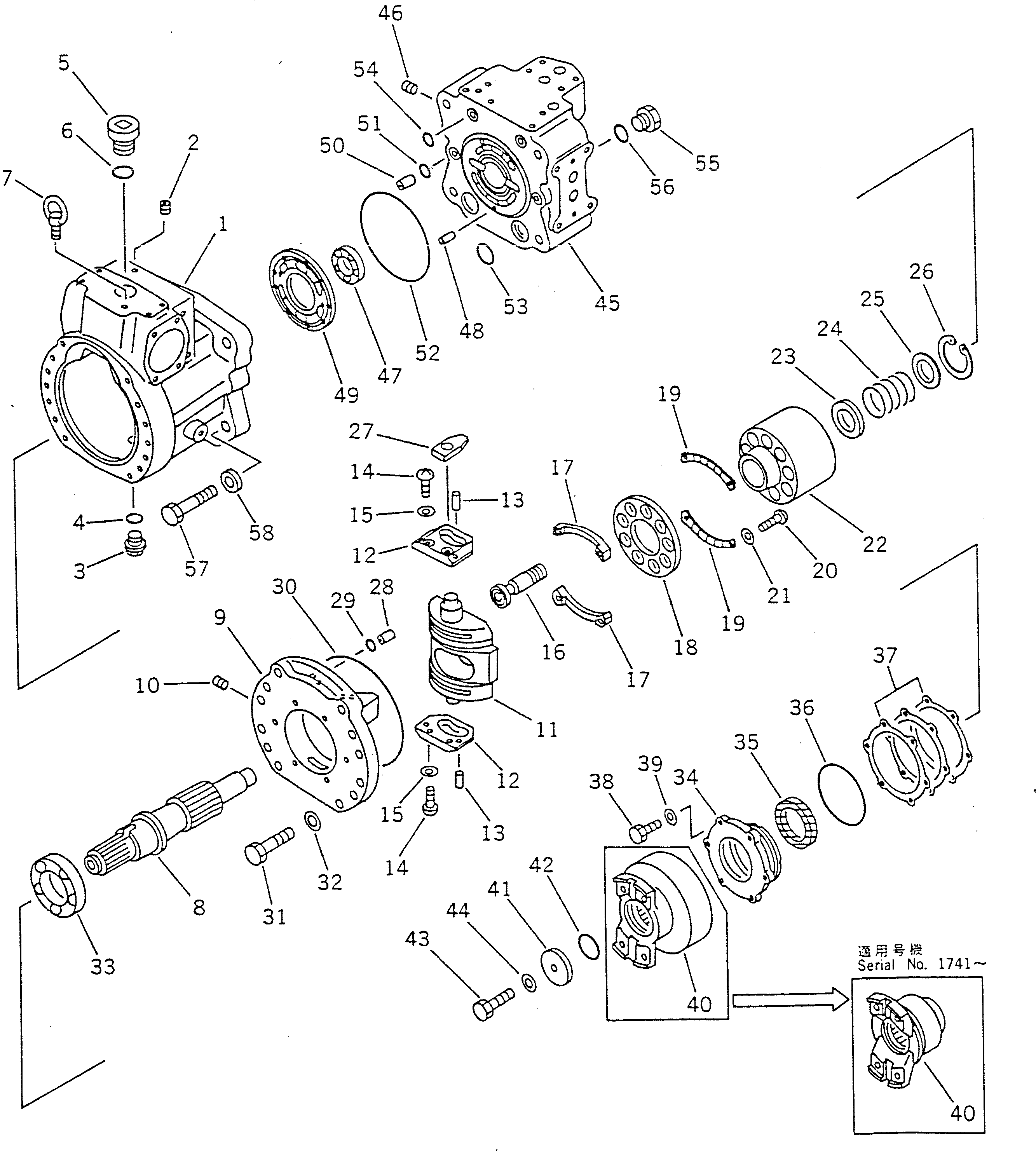

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 720-68-20103 | HST ASS'Y | 1 | SN: 1400- |
|||
| ? | (☒720-68-20102) | HST ASS'Y | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-20101) | HST ASS'Y | 1 | SN: (1400-1715) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.231 TO 242. | ||||||
| ? | 720-68-21001 | • PUMP AND SERVO ASS'Y | 1 | SN: 1400- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.232A TO 234. | ||||||
| ? | 720-68-21101 | • • PUMP ASS'Y | 1 | SN: 1400- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.232A AND 233A. | ||||||
| ? | (★720-98-05560) | • • • CASE ASS'Y | 1 | SN: 1400- |
|||
| ? | ☆ | • • • • CASE | 1 | SN: 1400- |
|||
| ? | ☆ | • • • • PLUG | 6 | SN: 1400- |
|||
| ? | 07044-12412 | • • • PLUG | 1 | SN: 1400- |
|||
| ? | 07002-02434 | • • • O-RING | 1 | SN: 1400- |
|||
| ? | 07040-13316 | • • • PLUG | 1 | SN: 1400- |
|||
| ? | 07002-03334 | • • • O-RING | 1 | SN: 1400- |
|||
| ? | 04530-01222 | • • • BOLT,EYE | 1 | SN: 1400- |
|||
| ? | (★720-68-22310) | • • • SHAFT | 1 | SN: 1400- |
|||
| ? | (★720-98-05570) | • • • CRADLE ASS'Y | 1 | SN: 1400- |
|||
| ? | ☆ | • • • • CRADLE | 1 | SN: 1400- |
|||
| ? | ☆ | • • • • PLUG | 8 | SN: 1400- |
|||
| ? | ☆ | • • • • CAM,ROCKER | 1 | SN: 1400- |
|||
| ? | (★708-27-12330) | • • • PLATE | 2 | SN: 1400- |
|||
| ? | (★04020-00820) | • • • PIN,DOWEL | 4 | SN: 1400- |
|||
| ? | (★708-27-12340) | • • • SCREW | 4 | SN: 1400- |
|||
| ? | (★01643-30823) | • • • WASHER | 4 | SN: 1400- |
|||
| ? | (★720-68-21320) | • • • PISTON SUB ASS'Y | 9 | SN: 1400- |
|||
| ? | (★720-98-05580) | • • • SPACER KIT | 1 | SN: 1400- |
|||
| ? | ☆ | • • • • SPACER | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SPACER | 2 | SN: 1400- |
|||
| ? | ☆ | • • • • SPACER | 2 | SN: 1400- |
|||
| ? | (★708-27-13342) | • • • RETAINER,SHOE | 1 | SN: 1635- |
|||
| ? | (★708-27-13341) | • • • RETAINER,SHOE | 1 | SN: 1400-1634 |
|||
| ? | (★708-27-13420) | • • • RETAINER | 2 | SN: 1400- |
|||
| ? | (★708-27-13480) | • • • SCREW | 4 | SN: 1400- |
|||
| ? | (★01643-30823) | • • • WASHER | 4 | SN: 1400- |
|||
| ? | (★720-68-21440) | • • • BLOCK,CYLINDER | 1 | SN: 1400- |
|||
| ? | (★708-27-13120) | • • • WASHER | 1 | SN: 1400- |
|||
| ? | (★708-27-13140) | • • • SPRING | 1 | SN: 1400- |
|||
| ? | (★708-27-13130) | • • • RETAINER | 1 | SN: 1400- |
|||
| ? | (★708-27-13150) | • • • RING,SNAP | 1 | SN: 1400- |
|||
| ? | (★708-27-14121) | • • • SLIDER | 1 | SN: 1635- |
|||
| ? | (★708-27-14120) | • • • SLIDER | 1 | SN: 1400-1634 |
|||
| ? | (★708-25-12330) | • • • JOINT | 2 | SN: 1400- |
|||
| ? | (★07000-12015) | • • • O-RING | 2 | SN: 1400- |
|||
| ? | (★708-27-12130) | • • • O-RING | 1 | SN: 1400- |
|||
| ? | (★01010-51450) | • • • BOLT | 12 | SN: 1400- |
|||
| ? | (★01643-31445) | • • • WASHER | 12 | SN: 1400- |
|||
| ? | (★720-68-21540) | • • • BEARING | 1 | SN: 1400- |
|||
| ? | (★720-68-22340) | • • • HOUSING | 1 | SN: 1400- |
|||
| ? | 708-27-22810 | • • • SEAL,OIL | 1 | SN: 1400- |
|||
| ? | 07000-02105 | • • • O-RING | 1 | SN: 1400- |
|||
| ? | (★720-98-05590) | • • • SHIM KIT | 1 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM¤ 0.5MM | 3 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM¤ 0.1MM | 4 | SN: 1400- |
|||
| ? | ☆ | • • • • SHIM¤ 0.15MM | 3 | SN: 1400- |
|||
| ? | 01010-30825 | • • • BOLT | 4 | SN: 1400- |
|||
| ? | 01643-30823 | • • • WASHER | 4 | SN: 1400- |
|||
| ? | 720-68-22392 | • • • COUPLING | 1 | SN: 1400- |
|||
| ? | (☒720-68-22391) | • • • COUPLING | 1 | SN: (1400-1740) |
|||
| ? | 720-68-12430 | • • • HOLDER | 1 | SN: 1400- |
|||
| ? | 720-68-19560 | • • • O-RING | 1 | SN: 1400- |
|||
| ? | 01010-31235 | • • • BOLT | 1 | SN: 1400- |
|||
| ? | 01643-31232 | • • • WASHER | 1 | SN: 1400- |
|||
| ? | (★720-98-05290) | • • • END CAP ASS'Y | 1 | SN: 1400- |
|||
| ? | ☆ | • • • • CAP,END | 1 | SN: 1400- |
|||
| ? | ☆ | • • • • PLUG | 1 | SN: 1400- |
|||
| ? | (★720-68-21530) | • • • BEARING | 1 | SN: 1400- |
|||
| ? | (★720-68-19610) | • • • PIN | 1 | SN: 1400- |
|||
| ? | (★720-68-21490) | • • • VALVE,PLATE | 1 | SN: 1400- |
|||
| ? | (★708-25-12330) | • • • JOINT | 2 | SN: 1400- |
|||
| ? | (★07000-12015) | • • • O-RING | 2 | SN: 1400- |
|||
| ? | (★708-27-12530) | • • • O-RING | 1 | SN: 1400- |
|||
| ? | (★07000-03025) | • • • O-RING | 2 | SN: 1400- |
|||
| ? | (★07000-12015) | • • • O-RING | 2 | SN: 1400- |
|||
| ? | 720-68-19530 | • • • PLUG | 1 | SN: 1400- |
|||
| ? | 07002-11823 | • • • O-RING | 1 | SN: 1400- |
|||
| ? | (★01010-82075) | • • • BOLT | 4 | SN: 1400- |
|||
| ? | (★708-27-12581) | • • • WASHER | 4 | SN: 1400- |
