| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (720-68-10101) | HST ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-10100) | HST ASS'Y | 1 | SN: (1001-1399) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.231 TO 242. | ||||||
| ? | 720-68-11000 | • PUMP AND SERVO ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.232 TO 234. | ||||||
| ? | 720-68-11100 | • • PUMP ASS'Y | 1 | SN: 1001-1399 |
|||

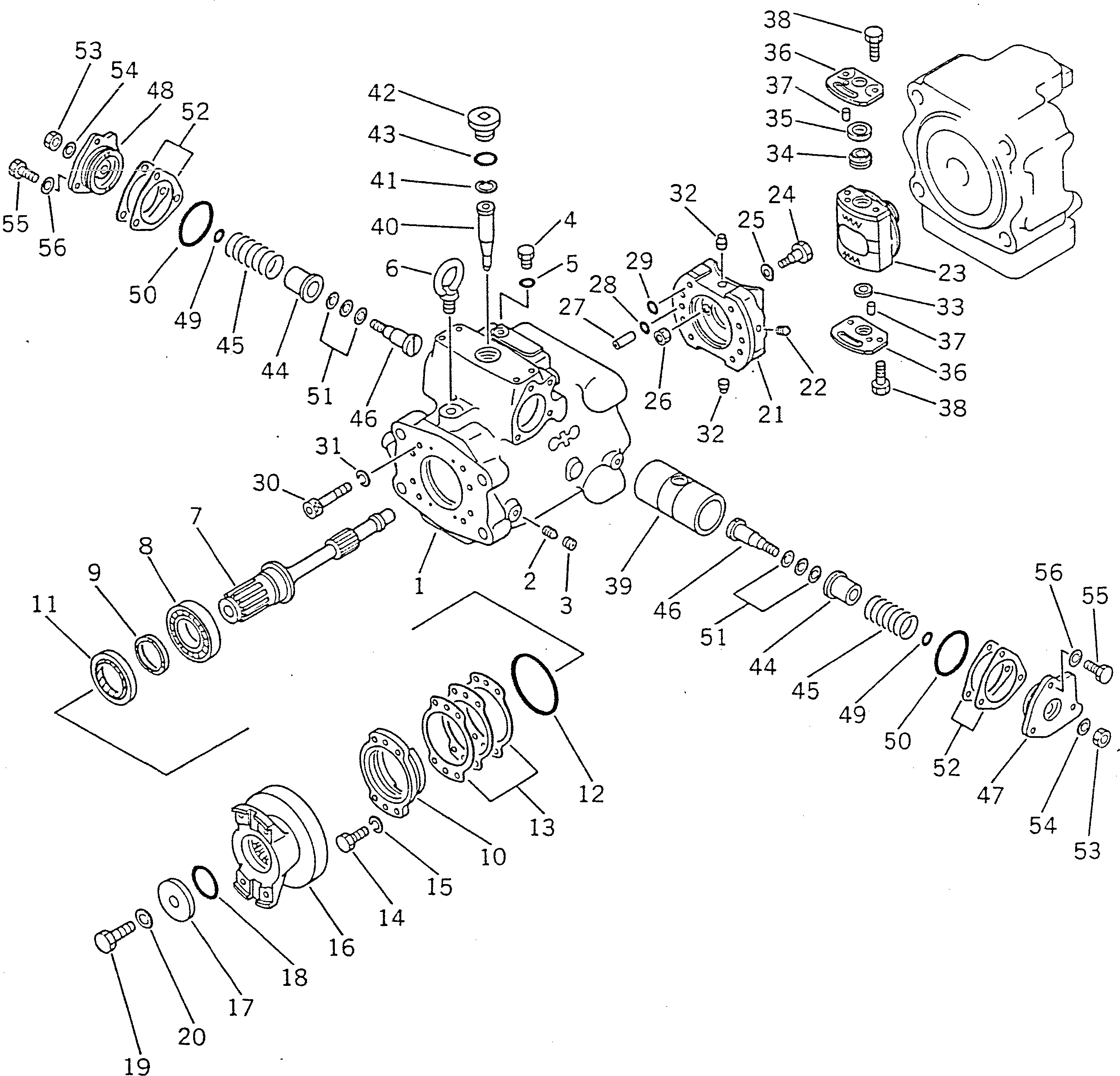

| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.232 AND 233. | ||||||
| ? | (★720-98-05310) | • • • CASE ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • CASE | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • PLUG | 7 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SCREW | 2 | SN: 1001-1399 |
|||
| ? | 07040-10807 | • • • PLUG | 1 | SN: 1001-1399 |
|||
| ? | 07002-00823 | • • • O-RING | 1 | SN: 1001-1399 |
|||
| ? | 04530-01628 | • • • BOLT | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-12310) | • • • SHAFT | 1 | SN: 1001-1399 |
|||
| ? | (★06002-30210) | • • • BEARING | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-12330) | • • • COLLAR | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-12340) | • • • HOUSING | 1 | SN: 1001-1399 |
|||
| ? | 720-68-19550 | • • • SEAL,OIL | 1 | SN: 1001-1399 |
|||
| ? | 07000-02085 | • • • O-RING | 1 | SN: 1001-1399 |
|||
| ? | (★720-98-05510) | • • • SHIM KIT | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.1MM | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.15MM | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.2MM | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.5MM | 2 | SN: 1001-1399 |
|||
| ? | 01010-30825 | • • • BOLT | 4 | SN: 1001-1399 |
|||
| ? | 01602-00825 | • • • WASHER,SPRING | 4 | SN: 1001-1399 |
|||
| ? | 720-68-12410 | • • • COUPLING | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-12390) | • • • COUPLING | 1 | SN: (1001-1399) |
|||
| ? | 720-68-12430 | • • • HOLDER | 1 | SN: 1001-1399 |
|||
| ? | 720-68-19560 | • • • O-RING | 1 | SN: 1001-1399 |
|||
| ? | 01010-31235 | • • • BOLT | 1 | SN: 1001-1399 |
|||
| ? | 01643-31232 | • • • WASHER | 1 | SN: 1001-1399 |
|||
| ? | (★720-98-05330) | • • • CRADLE ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • CRADLE | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • PLUG | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • CAM | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11230) | • • • BOLT | 2 | SN: 1001-1399 |
|||
| ? | (★720-68-11240) | • • • WASHER | 2 | SN: 1001-1399 |
|||
| ? | (★01580-00806) | • • • NUT | 2 | SN: 1001-1399 |
|||
| ? | (★720-68-11220) | • • • JOINT | 2 | SN: 1001-1399 |
|||
| ? | (★07000-22014) | • • • O-RING | 2 | SN: 1001-1399 |
|||
| ? | (★07000-02016) | • • • O-RING | 8 | SN: 1001-1399 |
|||
| ? | (★720-68-11510) | • • • BOLT | 8 | SN: 1001-1399 |
|||
| ? | (★01602-01236) | • • • WASHER,SPRING | 8 | SN: 1001-1399 |
|||
| ? | (★720-68-11270) | • • • PIN | 2 | SN: 1001-1399 |
|||
| ? | (★720-68-11290) | • • • SPACER | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-19570) | • • • BEARING | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11280) | • • • SPACER | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-11260) | • • • PLATE | 2 | SN: 1001-1399 |
|||
| ? | (★720-68-19610) | • • • PIN | 2 | SN: 1001-1399 |
|||
| ? | (★720-68-19580) | • • • BOLT | 4 | SN: 1001-1399 |
|||
| ? | (★720-68-12510) | • • • PISTON | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-12521) | • • • ROD | 1 | SN: 1001-1399 |
|||
| ? | (★04065-02812) | • • • RING,SNAP | 1 | SN: 1001-1399 |
|||
| ? | 07040-13316 | • • • PLUG | 1 | SN: 1001-1399 |
|||
| ? | 07002-03334 | • • • O-RING | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-12530) | • • • RETAINER | 2 | SN: 1001-1399 |
|||
| ? | (★720-68-19620) | • • • SPRING | 2 | SN: 1001-1399 |
|||
| ? | (★720-68-12540) | • • • ROD | 2 | SN: 1001-1399 |
|||
| ? | (★720-68-12560) | • • • CAP | 1 | SN: 1001-1399 |
|||
| ? | (★720-68-12550) | • • • CAP | 1 | SN: 1001-1399 |
|||
| ? | (★07000-02014) | • • • O-RING | 2 | SN: 1001-1399 |
|||
| ? | 07000-02060 | • • • O-RING | 2 | SN: 1001-1399 |
|||
| ? | (★720-98-05520) | • • • SHIM KIT | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.1MM | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.2MM | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.5MM | 2 | SN: 1001-1399 |
|||
| ? | (★720-98-05530) | • • • SHIM KIT | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.1MM | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.1MM | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.1MM | 2 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.2MM | 1 | SN: 1001-1399 |
|||
| ? | ☆ | • • • • SHIM¤ 0.5MM | 3 | SN: 1001-1399 |
|||
| ? | (★01580-11210) | • • • NUT | 2 | SN: 1001-1399 |
|||
| ? | (★01643-31232) | • • • WASHER | 2 | SN: 1001-1399 |
|||
| ? | 01010-31030 | • • • BOLT | 6 | SN: 1001-1399 |
|||
| ? | 01643-31032 | • • • WASHER | 6 | SN: 1001-1399 |
