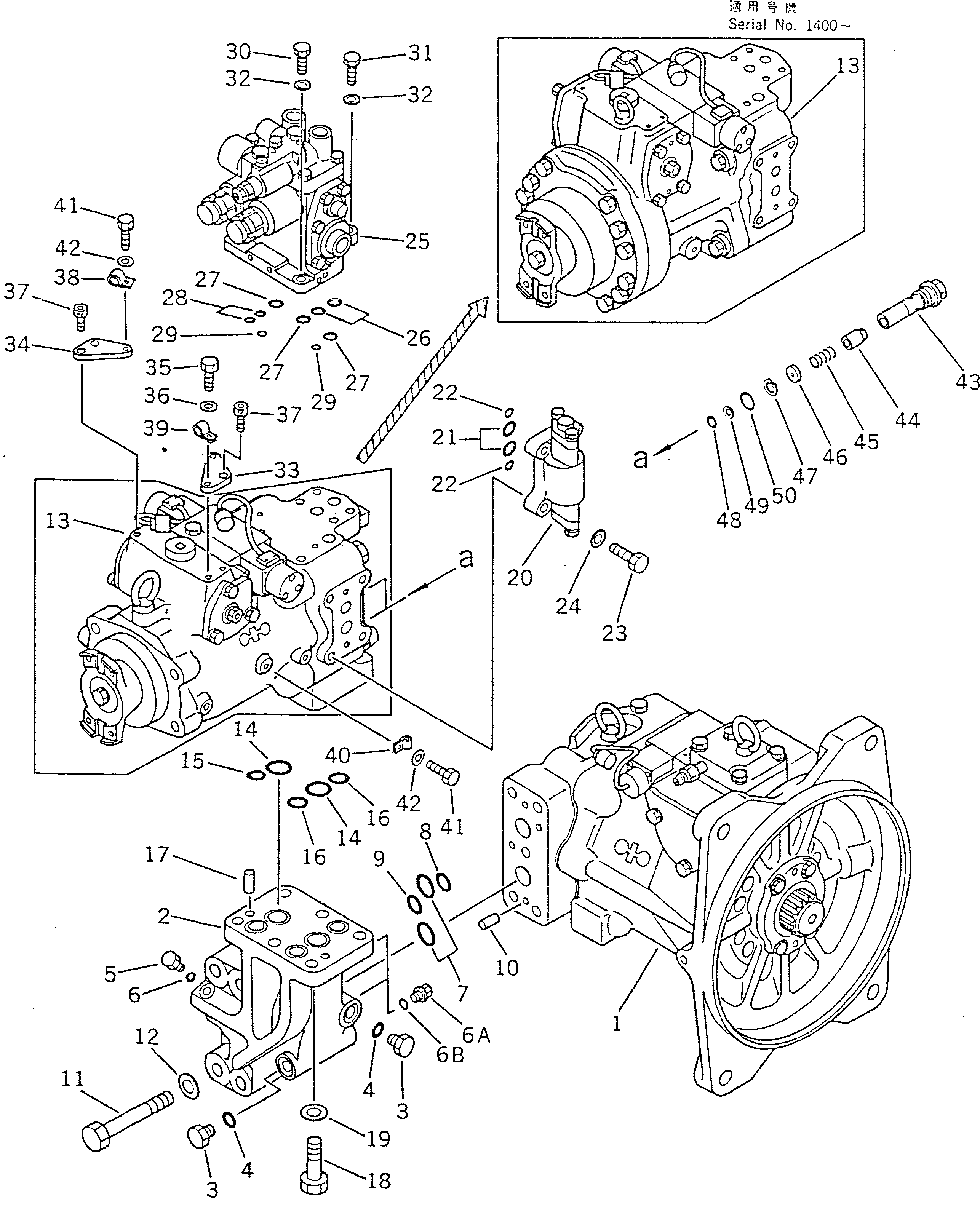

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 720-68-20103 | HST ASS'Y | 1 | SN: 1400- |
|||
| ? | (☒720-68-20102) | HST ASS'Y | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-20101) | HST ASS'Y | 1 | SN: (1400-1715) |
|||
| ? | 720-68-10101 | HST ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-10100) | HST ASS'Y | 1 | SN: (1001-1399) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.231 TO 242. | ||||||
| ? | 720-68-23003 | • MOTOR AND SERVO A. | 1 | SN: 1400- |
|||
| ? | (☒720-68-23002) | • MOTOR AND SERVO A. | 1 | SN: (1716-1779) |
|||
| ? | (☒720-68-23001) | • MOTOR AND SERVO A. | 1 | SN: (1400-1715) |
|||
| ? | 720-68-13001 | • MOTOR AND SERVO A. | 1 | SN: 1001-1399 |
|||
| ? | (☒720-68-13000) | • MOTOR AND SERVO A. | 1 | SN: (1001-1399) |
|||
| ? | 720-68-29110 | • BLOCK | 1 | SN: 1400- |
|||
| ? | □720-68-19110 | • BLOCK | 1 | SN: 1001-1399 |
|||
| ? | 07040-11812 | • PLUG | 3 | SN: 1001- |
|||
| ? | 07002-01823 | • O-RING | 3 | SN: 1001- |
|||
| ? | 07040-11007 | • PLUG | 2 | SN: 1001- |
|||
| ? | 07002-01023 | • O-RING | 2 | SN: 1001- |
|||
| ? | 720-68-19530 | • PLUG | 2 | SN: 1001- |
|||
| ? | 07002-11823 | • O-RING | 2 | SN: 1001- |
|||
| ? | 07000-13040 | • O-RING | 2 | SN: 1001- |
|||
| ? | 720-68-19710 | • O-RING | 1 | SN: 1001- |
|||
| ? | 07000-02020 | • O-RING | 1 | SN: 1001- |
|||
| ? | 720-68-19130 | • PIN | 2 | SN: 1001- |
|||
| ? | 01011-62025 | • BOLT | 5 | SN: 1001- |
|||
| ? | 01643-32060 | • WASHER | 5 | SN: 1001- |
|||
| ? | (720-68-21001) | • PUMP AND SERVO ASS'Y | 1 | SN: 1400- |
|||
| ? | (720-68-11000) | • PUMP AND SERVO ASS'Y | 1 | SN: 1001-1399 |
|||
| ? | 07000-13040 | • O-RING | 2 | SN: 1001- |
|||
| ? | 07000-03032 | • O-RING | 1 | SN: 1001- |
|||
| ? | 07000-03025 | • O-RING | 2 | SN: 1001- |
|||
| ? | 720-68-19130 | • PIN | 2 | SN: 1001- |
|||
| ? | 01010-61655 | • BOLT | 6 | SN: 1001- |
|||
| ? | 01643-31645 | • WASHER | 6 | SN: 1001- |
|||
| ? | (720-68-16100) | • VALVE ASS'Y | 1 | SN: 1001- |
|||
| ? | 07000-13025 | • O-RING | 2 | SN: 1001- |
|||
| ? | 07000-02015 | • O-RING | 2 | SN: 1001- |
|||
| ? | 01010-31245 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01643-31232 | • WASHER | 4 | SN: 1001- |
|||
| ? | 720-68-15000 | • ASSIST VALVE ASS'Y | 1 | SN: 1001- |
|||
| ? | 07000-13025 | • O-RING | 2 | SN: 1001- |
|||
| ? | 07000-03025 | • O-RING | 3 | SN: 1001- |
|||
| ? | 07000-02014 | • O-RING | 2 | SN: 1001- |
|||
| ? | 07000-02011 | • O-RING | 2 | SN: 1001- |
|||
| ? | 07372-01235 | • BOLT | 2 | SN: 1001- |
|||
| ? | 07372-01240 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01643-51232 | • WASHER | 6 | SN: 1001- |
|||
| ? | 720-68-19210 | • PLATE | 1 | SN: 1001- |
|||
| ? | 720-68-19220 | • PLATE | 1 | SN: 1001- |
|||
| ? | 01010-50825 | • BOLT | 1 | SN: 1001- |
|||
| ? | 01643-30823 | • WASHER | 1 | SN: 1001- |
|||
| ? | 01252-40816 | • BOLT | 3 | SN: 1001- |
|||
| ? | 08036-21814 | • CLIP | 3 | SN: 1001- |
|||
| ? | 08036-22514 | • CLIP | 1 | SN: 1001- |
|||
| ? | 21T-38-12270 | • CLIP | 2 | SN: 1001- |
|||
| ? | 01010-50816 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01643-30823 | • WASHER | 6 | SN: 1001- |
|||
| ? | 720-68-16200 | • VALVE ASS'Y | 2 | SN: 1001- |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 1001- |
|||
| ? | ☆ | • • VALVE | 1 | SN: 1001- |
|||
| ? | ☆ | • • SPRING | 1 | SN: 1001- |
|||
| ? | ☆ | • • PLATE | 1 | SN: 1001- |
|||
| ? | ☆ | • • RING,SNAP | 1 | SN: 1001- |
|||
| ? | 07000-12016 | • • O-RING | 1 | SN: 1001- |
|||
| ? | 07001-02016 | • • RING,BACK-UP | 1 | SN: 1001- |
|||
| ? | 07002-02434 | • • O-RING | 1 | SN: 1001- |
