| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

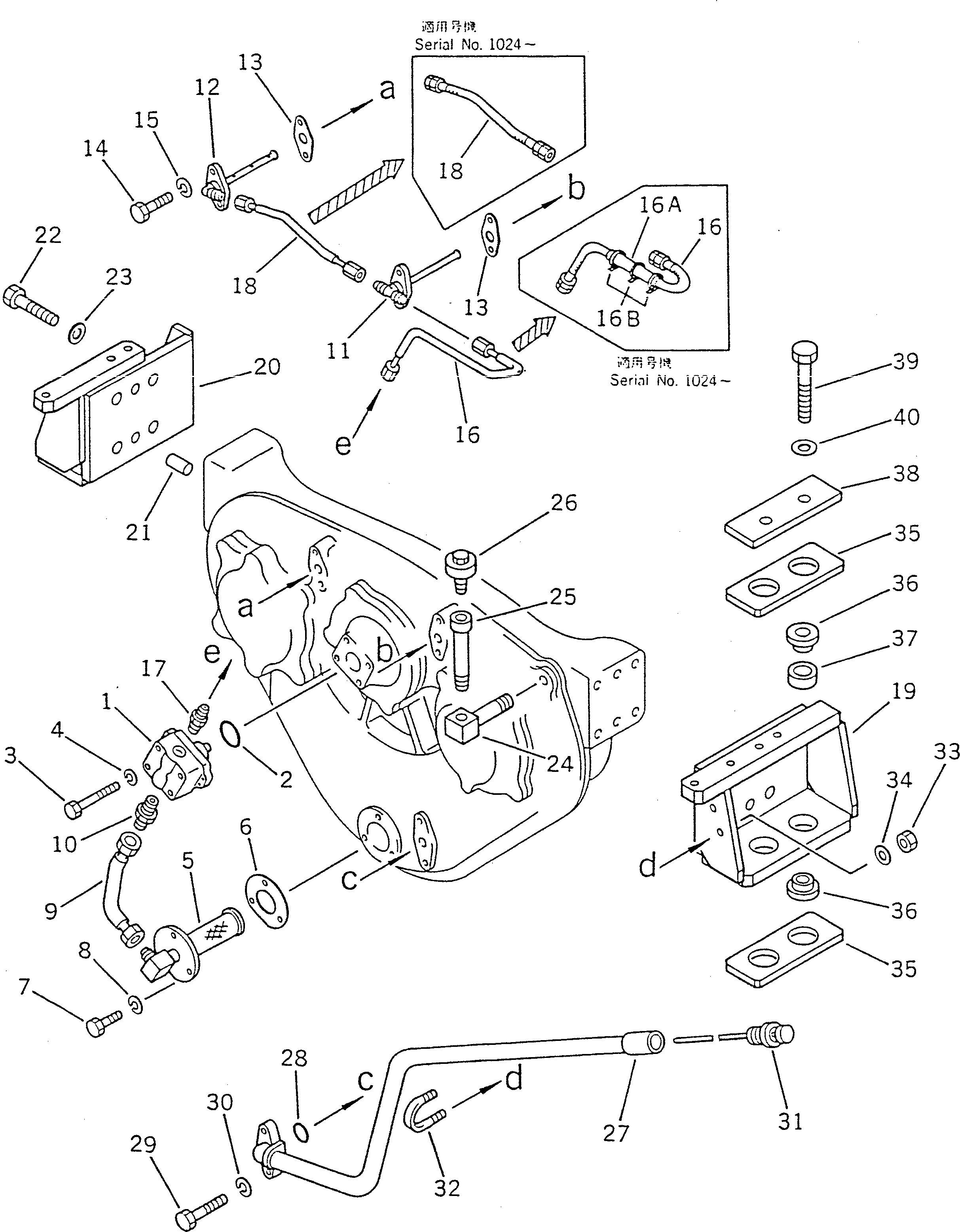

| ? | (142-16-00030) | TORQUE SPLITTER A. | 1 | SN: 1946- |
|||
| ? | (□142-16-00010) | TORQUE SPLITTER A. | 1 | SN: 1001-1945 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.221 AND 222. | ||||||
| ? | 111-11-15161 | • PUMP ASS'Y | 1 | SN: 1001- |
|||
| ? | 07000-03035 | • O-RING | 1 | SN: 1001- |
|||
| ? | 01010-50860 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01602-20825 | • WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 111-11-32110 | • STRAINER | 1 | SN: 1001- |
|||
| ? | 111-11-15321 | • GASKET | 1 | SN: 1946- |
|||
| ? | □111-11-15320 | • GASKET | 1 | SN: 1001-1945 |
|||
| ? | 01010-51025 | • BOLT | 3 | SN: 1001- |
|||
| ? | 01602-21030 | • WASHER,SPRING | 3 | SN: 1001- |
|||
| ? | 142-16-11512 | • TUBE | 1 | SN: 1001- |
|||
| ? | 07238-00522 | • CONNECTOR | 1 | SN: 1001- |
|||
| ? | 142-16-11540 | • TUBE | 1 | SN: 1001- |
|||
| ? | 142-16-11560 | • TUBE | 1 | SN: 1001- |
|||
| ? | 07343-02108 | • GASKET | 2 | SN: 1001- |
|||
| ? | 01010-51025 | • BOLT | 4 | SN: 1001- |
|||
| ? | 01602-21030 | • WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 142-16-11570 | • HOSE | 1 | SN: 1024- |
|||
| ? | 142-16-11532 | • TUBE | 1 | SN: 1001-1023 |
|||
| ? | 142-16-13320 | • SEAT | 1 | SN: 1024- |
|||
| ? | 08034-00414 | • BAND | 3 | SN: 1024- |
|||
| ? | 142-16-11520 | • NIPPLE | 1 | SN: 1001- |
|||
| ? | 142-16-11580 | • HOSE | 1 | SN: 1024- |
|||
| ? | 142-16-11550 | • TUBE | 1 | SN: 1001-1023 |
|||
| ? | 142-16-11312 | • BRACKET,L.H. | 1 | SN: 1001- |
|||
| ? | 142-16-11321 | • BRACKET,R.H. | 1 | SN: 1001- |
|||
| ? | 04020-01434 | • PIN,DOWEL | 4 | SN: 1001- |
|||
| ? | 01010-51645 | • BOLT | 8 | SN: 1001- |
|||
| ? | 01643-31645 | • WASHER | 8 | SN: 1001- |
|||
| ? | 142-16-11621 | PIPE | 1 | SN: 1418- |
|||
| ? | 142-16-11620 | PIPE | 1 | SN: 1001-1417 |
|||
| ? | 142-16-11612 | PIPE | 1 | SN: 1418- |
|||
| ? | 142-16-11611 | PIPE | 1 | SN: 1001-1417 |
|||
| ? | 07030-10252 | BREATHER | 1 | SN: 1001- |
|||
| ? | 142-16-11413 | FILLER | 1 | SN: .- |
|||
| ? | 142-16-11412 | FILLER | 1 | SN: 1001-. |
|||
| ? | 07000-03028 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51240 | BOLT | 2 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 2 | SN: 1001- |
|||
| ? | 142-16-11423 | GAUGE | 1 | SN: .- |
|||
| ? | 142-16-11422 | GAUGE | 1 | SN: 1001-. |
|||
| ? | 07283-22738 | CLIP | 1 | SN: 1001- |
|||
| ? | 01599-01011 | NUT | 2 | SN: 1001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1001- |
|||
| ? | 142-16-11330 | RUBBER | 4 | SN: 1001- |
|||
| ? | 142-16-11351 | COLLAR | 8 | SN: 1001- |
|||
| ? | 142-16-11340 | RUBBER | 4 | SN: 1001- |
|||
| ? | 142-16-11360 | PLATE | 2 | SN: 1001- |
|||
| ? | 01010-52080 | BOLT | 4 | SN: 1001- |
|||
| ? | 01643-32060 | WASHER | 4 | SN: 1001- |
