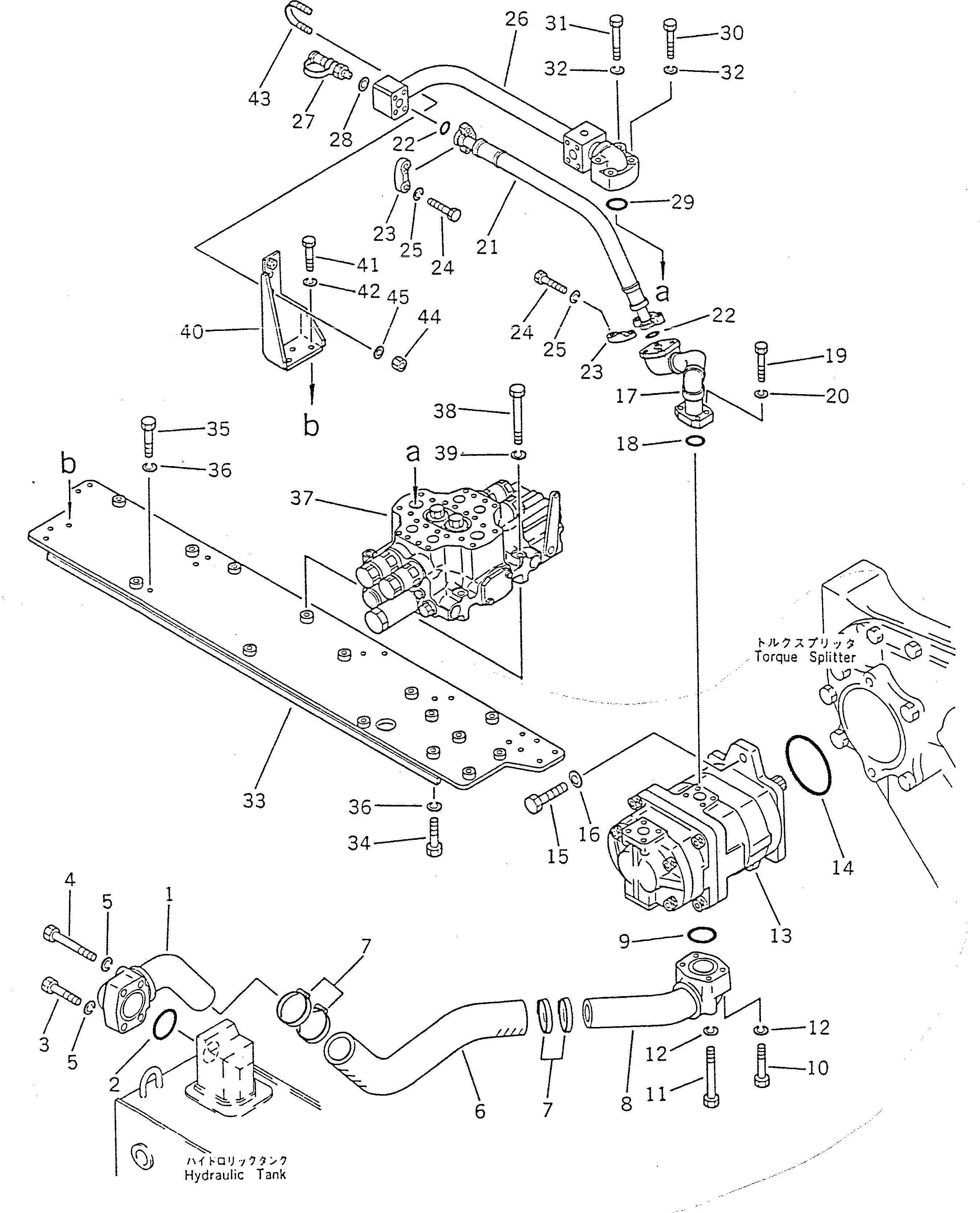

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 142-62-11112 | PIPE | 1 | SN: 1001- |
|||
| ? | 07000-02070 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51260 | BOLT | 2 | SN: 1001- |
|||
| ? | 01010-51275 | BOLT | 2 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 142-62-11150 | HOSE | 1 | SN: 1001- |
|||
| ? | 205-09-61120 | CLAMP | 4 | SN: 1677- |
|||
| ? | 07281-00909 | CLAMP | 4 | SN: 1001-1676 |
|||
| ? | 142-62-11160 | PIPE | 1 | SN: 1001- |
|||
| ? | 07000-02060 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51270 | BOLT | 2 | SN: 1001- |
|||
| ? | 01011-51205 | BOLT | 2 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | (705-51-30110) | PUMP ASS'Y | 1 | SN: 1001- |
|||
| ? | 07000-02130 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51645 | BOLT | 2 | SN: 1001- |
|||
| ? | 01643-31645 | WASHER | 2 | SN: 1001- |
|||
| ? | 142-62-12113 | TUBE | 1 | SN: 1001- |
|||
| ? | 07000-23035 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51040 | BOLT | 4 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 07089-01005 | HOSE | 1 | SN: 1001- |
|||
| ? | 07000-23032 | O-RING | 2 | SN: 1001- |
|||
| ? | 07371-31049 | FLANGE | 4 | SN: 1001- |
|||
| ? | 07372-21030 | BOLT | 8 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 8 | SN: 1001- |
|||
| ? | 142-62-12133 | TUBE | 1 | SN: 1400- |
|||
| ? | 142-62-12132 | TUBE | 1 | SN: 1001-1399 |
|||
| ? | 07042-20108 | PLUG | 1 | SN: 1400- |
|||
| ? | 720-68-15250 | NIPPLE | 1 | SN: 1001-1399 |
|||
| ? | 720-68-15260 | SEAL | 1 | SN: 1001-1399 |
|||
| ? | 07000-23040 | O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51050 | BOLT | 2 | SN: 1001- |
|||
| ? | 01010-51065 | BOLT | 2 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 4 | SN: 1001- |
|||
| ? | 142-60-13113 | PLATE | 1 | SN: 1001- |
|||
| ? | 01010-51240 | BOLT | 3 | SN: 1001- |
|||
| ? | 01010-51230 | BOLT | 3 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 6 | SN: 1001- |
|||
| ? | (700-92-11002) | VALVE ASS'Y | 1 | SN: 1001- |
|||
| ? | 01010-51280 | BOLT | 3 | SN: 1001- |
|||
| ? | 01602-21236 | WASHER,SPRING | 3 | SN: 1001- |
|||
| ? | 142-62-12151 | BRACKET | 1 | SN: 1001- |
|||
| ? | 01010-51030 | BOLT | 3 | SN: 1001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 3 | SN: 1001- |
|||
| ? | 07283-23442 | CLIP | 1 | SN: 1001- |
|||
| ? | 01599-01011 | NUT | 2 | SN: 1001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1001- |
