| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

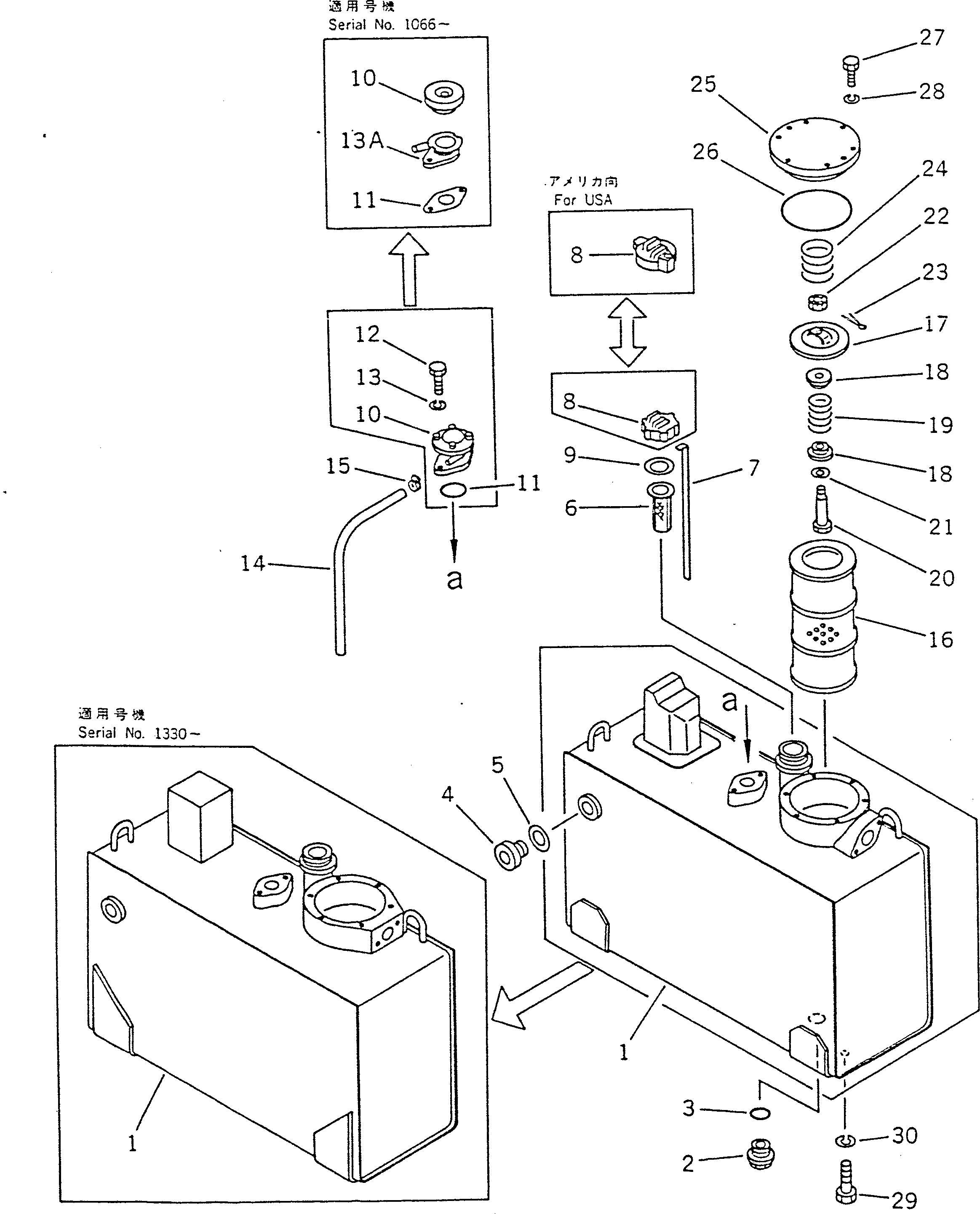

| ? | 142-60-00012 | HYDRAULIC TANK ASS'Y | 1 | SN: 1001- |
|||
| ? | (☒142-60-00011) | HYDRAULIC TANK ASS'Y | 1 | SN: (1066-1329) |
|||
| ? | (☒142-60-00010) | HYDRAULIC TANK ASS'Y | 1 | SN: (1001-1065) |
|||
| ? | 142-60-00052 | HYDRAULIC TANK ASS'Y,(FOR USA) | 1 | SN: 1001- |
|||
| ? | (☒142-60-00051) | HYDRAULIC TANK ASS'Y,(FOR USA) | 1 | SN: (1066-1329) |
|||
| ? | (☒142-60-00050) | HYDRAULIC TANK ASS'Y,(FOR USA) | 1 | SN: (1001-1065) |
|||
| ? | 142-60-14220 | • TANK | 1 | SN: 1001- |
|||
| ? | (☒142-60-14112) | • TANK | 1 | SN: (1001-1329) |
|||
| ? | 07044-12412 | • PLUG | 1 | SN: 1001- |
|||
| ? | 07002-02434 | • O-RING | 1 | SN: 1001- |
|||
| ? | 20N-60-11141 | • GAUGE | 1 | SN: 1001- |
|||
| ? | 20N-60-11180 | • • GASKET | 1 | SN: 1001- |
|||
| ? | 141-60-33730 | • STRAINER | 1 | SN: 1001- |
|||
| ? | 142-60-14150 | • GAUGE | 1 | SN: 1001- |
|||
| ? | 07051-20000 | • CAP | 1 | SN: 1001- |
|||
| ? | 07092-00000 | • CAP,(FOR USA) | 1 | SN: 1001- |
|||
| ? | 07051-00003 | • • GASKET | 1 | SN: 1001- |
|||
| ? | 201-60-12190 | • CAP ASS'Y | 1 | SN: 1066- |
|||
| ? | 154-03-11682 | • VALVE | 1 | SN: 1001-1065 |
|||
| ? | 142-60-14180 | • GASKET | 1 | SN: 1066- |
|||
| ? | 07000-03045 | • O-RING | 1 | SN: 1001-1065 |
|||
| ? | 01010-51020 | • BOLT | 2 | SN: 1066- |
|||
| ? | 01010-51025 | • BOLT | 2 | SN: 1001-1065 |
|||
| ? | 01602-21030 | • WASHER,SPRING | 2 | SN: 1001- |
|||
| ? | 142-60-14160 | • FILLER,NECK | 1 | SN: 1066- |
|||
| ? | 142-60-14190 | • HOSE | 1 | SN: 1066- |
|||
| ? | 142-03-13130 | • HOSE | 1 | SN: 1001-1065 |
|||
| ? | 07280-01620 | • CLAMP | 1 | SN: 1066- |
|||
| ? | 07281-00167 | • CLAMP | 1 | SN: 1001-1065 |
|||
| ? | 141-60-18270 | • ELEMENT | 1 | SN: 1001- |
|||
| ? | 145-60-17160 | • CAGE | 1 | SN: 1001- |
|||
| ? | 145-60-17170 | • VALVE | 2 | SN: 1001- |
|||
| ? | 135-60-17110 | • SPRING | 1 | SN: 1001- |
|||
| ? | 145-60-17190 | • BOLT | 1 | SN: 1001- |
|||
| ? | 01640-21223 | • WASHER | 1 | SN: 1001- |
|||
| ? | 01590-10809 | • NUT | 1 | SN: 1001- |
|||
| ? | 04050-12015 | • PIN,COTTER | 1 | SN: 1001- |
|||
| ? | 145-60-17150 | • SPRING | 1 | SN: 1001- |
|||
| ? | 142-60-14122 | • COVER | 1 | SN: 1001- |
|||
| ? | 07000-02135 | • O-RING | 1 | SN: 1001- |
|||
| ? | 01010-51025 | • BOLT | 6 | SN: 1001- |
|||
| ? | 01602-21030 | • WASHER,SPRING | 6 | SN: 1001- |
|||
| ? | 01010-51440 | BOLT | 4 | SN: 1330- |
|||
| ? | 01010-51435 | BOLT | 4 | SN: 1001-1329 |
|||
| ? | 01602-21442 | WASHER,SPRING | 4 | SN: 1001- |
