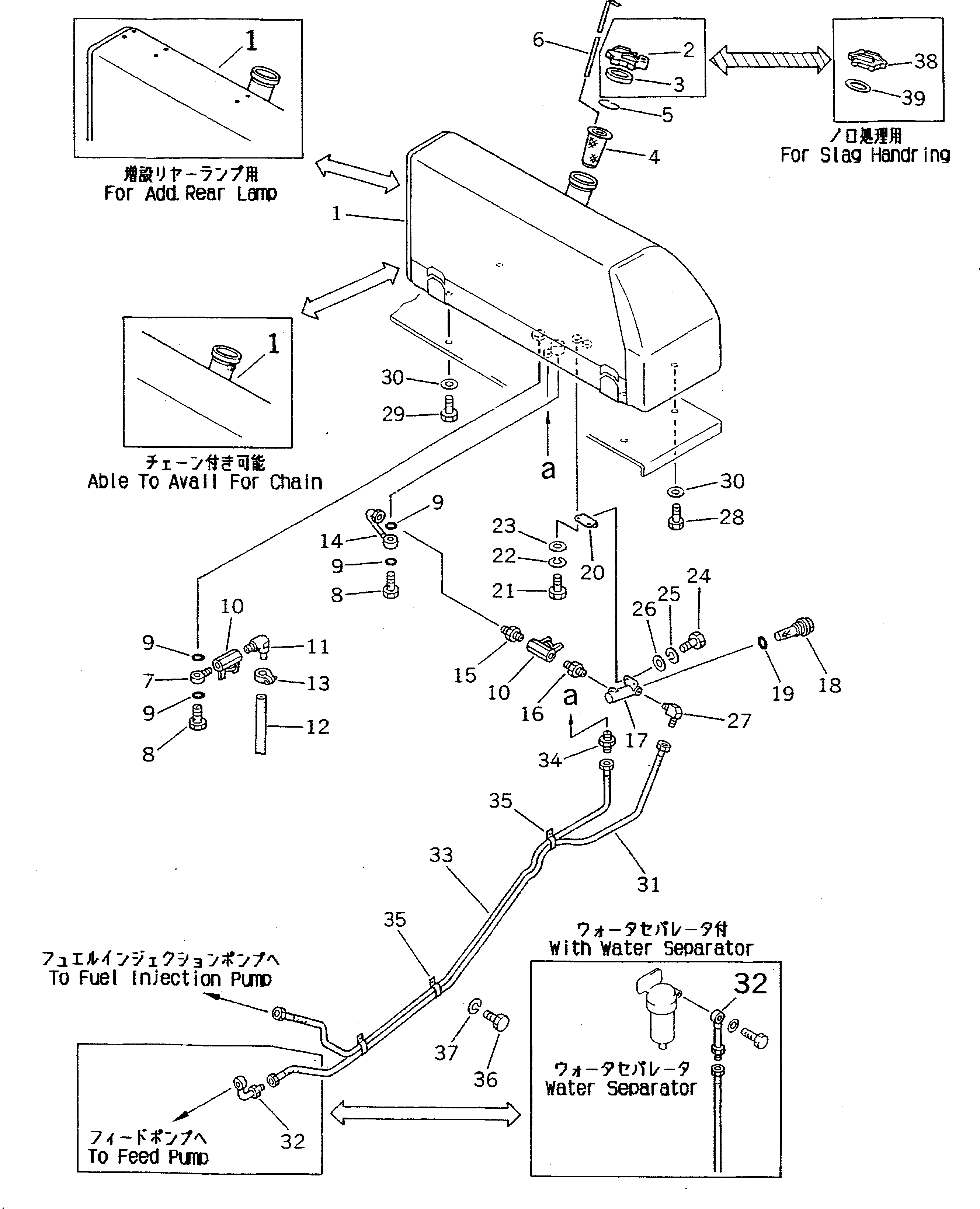

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 145-04-00201 | FUEL TANK ASS'Y | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | (☒145-04-00200) | FUEL TANK ASS'Y | 1 | SN: (15001-15003) KIT-FLAG: _- SERIALNO: (15001-15003) |
|||
| ? | 145-04-00210 | FUEL TANK ASS'Y,(ADD. REAR LAMP) | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | 145-04-00220 | FUEL TANK ASS'Y,(AVAILABLE FOR MOUNTING CHAIN) | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | ☆ | • FUEL TANK | 1 | SN: 15004-16527 KIT-FLAG: _- SERIALNO: 15004-16527 |
|||
| ? | ☆ | • FUEL TANK | 1 | SN: 15001-15003 KIT-FLAG: _- SERIALNO: 15001-15003 |
|||
| ? | ☆ | • FUEL TANK,(ADD. REAR LAMP) | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | ☆ | • FUEL TANK,(AVAILABLE FOR MOUNTING CHAIN) | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | 07050-41200 | • CAP | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07050-21202 | • • GASKET | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07056-18416 | • STRAINER | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07057-04087 | • RING | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 145-04-41121 | • GAUGE | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 195-04-11230 | • JOINT,EYE | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 195-04-11280 | • BOLT,JOINT | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07000-03035 | • O-RING | 4 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 145-04-41170 | VALVE | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 131-04-54130 | ELBOW | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07270-01280 | TUBE | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07270-21280 | TUBE,(FOR SLAG HANDLING) | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07280-01620 | CLAMP | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 145-04-41130 | TUBE | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07213-51521 | CONNECTOR | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 145-04-41150 | NIPPLE | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 145-04-00111 | STRAINER ASS'Y | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 154-04-12510 | • CASE,STRAINER | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07058-00005 | • ELEMENT | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07000-03040 | • O-RING | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 145-04-41140 | BRACKET | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01010-81025 | BOLT | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01602-21030 | WASHER,SPRING | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01010-80825 | BOLT | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01602-20825 | WASHER,SPRING | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01641-20812 | WASHER | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 144-04-51130 | ELBOW | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01010-82045 | BOLT | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01010-82055 | BOLT | 2 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01643-32060 | WASHER | 4 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07102-20327 | HOSE | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07103-80327 | HOSE,(FOR SLAG HANDLING) | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | 144-04-51120 | TUBE | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 144-04-51310 | TUBE,(WITH WATER SEPARATOR) | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07102-20325 | HOSE | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | 07103-80325 | HOSE,(FOR SLAG HANDLING) | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | 12F-62-21160 | NIPPLE | 1 | SN: 15001-16527 KIT-FLAG: _- SERIALNO: 15001-16527 |
|||
| ? | 141-01-33250 | CLIP | 3 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01010-81016 | BOLT | 3 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 01602-21030 | WASHER,SPRING | 3 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07050-00000 | CAP,(FOR SLAG HANDLING) | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
|||
| ? | 07050-00002 | • GASKET,(FOR SLAG HANDLING) | 1 | SN: 15001-@ KIT-FLAG: _- SERIALNO: 15001-@ |
