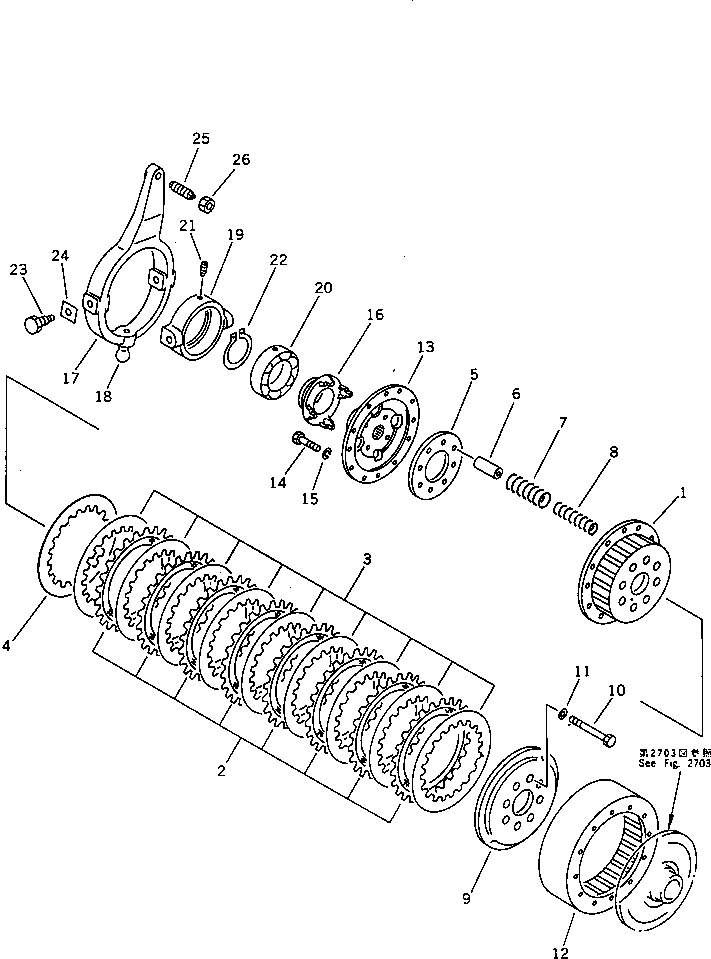

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 120-22-33111 | DRUM | 2 | SN: 40001- |
|||
| ? | 120-22-31233 | DISC | 16 | SN: 40550- |
|||
| ? | ♦120-22-31232 | DISC,(D31S) | 16 | SN: 40123-40549 |
|||
| ? | □120-22-31231 | DISC,(D31S) | 16 | SN: 40001-40122 |
|||
| ? | ♦120-22-31232 | DISC,(D31Q) | 16 | SN: 40166-40549 |
|||
| ? | □120-22-31231 | DISC,(D31Q) | 16 | SN: 40001-40165 |
|||
| ? | 120-22-31221 | PLATE | 18 | SN: 40001- |
|||
| ? | 120-22-31211 | PLATE | 2 | SN: 40001- |
|||
| ? | 120-22-31140 | RETAINER | 2 | SN: 40001- |
|||
| ? | 113-22-21150 | PIPE | 16 | SN: 40001- |
|||
| ? | 114-22-31110 | SPRING | 16 | SN: 40001- |
|||
| ? | 120-22-31181 | SPRING | 16 | SN: 40001- |
|||
| ? | 120-22-33122 | PLATE | 2 | SN: 40001- |
|||
| ? | 113-22-21230 | BOLT | 16 | SN: 40001- |
|||
| ? | 01643-31032 | WASHER | 16 | SN: 40001- |
|||
| ? | 120-22-31132 | DRUM | 2 | SN: 40001- |
|||
| ? | 120-22-32210 | FLANGE | 2 | SN: 40001- |
|||
| ? | 01010-51025 | BOLT | 24 | SN: 40001- |
|||
| ? | 01602-21030 | WASHER,SPRING | 24 | SN: 40001- |
|||
| ? | 120-22-32131 | COLLAR | 2 | SN: 40001- |
|||
| ? | 113-22-32141 | YOKE | 2 | SN: 40001- |
|||
| ? | 111-22-31120 | • BALL (WELDED) | 1 | SN: 40001- |
|||
| ? | 120-22-32151 | CAGE (D31S) | 2 | SN: 40094- |
|||
| ? | ▩120-22-32150 | CAGE (D31S) | 2 | SN: 40001-40093 |
|||
| ? | (120-22-32151{06002-07018)}\((D31S)\) | ||||||
| ? | 120-22-32151 | CAGE (D31Q) | 2 | SN: 40091- |
|||
| ? | ▩120-22-32150 | CAGE (D31Q) | 2 | SN: 40001-40090 |
|||
| ? | (120-22-32151{06002-07018)}\((D31Q)\) | ||||||
| ? | 06002-07018 | BEARING,BALL (D31S) | 2 | SN: 40094- |
|||
| ? | ▩120-22-32160 | BEARING,BALL (D31S) | 2 | SN: 40001-40093 |
|||
| ? | (06002-07018{120-22-32151)}\((D31S)\) | ||||||
| ? | 06002-07018 | BEARING,BALL (D31Q) | 2 | SN: 40091- |
|||
| ? | ▩120-22-32160 | BEARING,BALL (D31Q) | 2 | SN: 40001-40090 |
|||
| ? | (06002-07018{120-22-32151)}\((D31Q)\) | ||||||
| ? | 01322-30612 | SCREW,(D31S) | 2 | SN: 40001-40093 |
|||
| ? | 01322-30612 | SCREW,(D31Q) | 2 | SN: 40001-40090 |
|||
| ? | 04069-00902 | RING,SNAP | 2 | SN: 40001- |
|||
| ? | 120-22-11250 | PIN | 4 | SN: 40001- |
|||
| ? | 125-21-23370 | LOCK | 4 | SN: 40001- |
|||
| ? | 103-22-22170 | SCREW | 2 | SN: 40001- |
|||
| ? | 01583-11610 | NUT | 2 | SN: 40001- |
