| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (114-15-00033) | TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40068-40254 |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40068-40238 |
|||
| ? | □113-15-00600 | TRANSMISSION ASS'Y | 1 | SN: 40001-40067 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2561. | ||||||

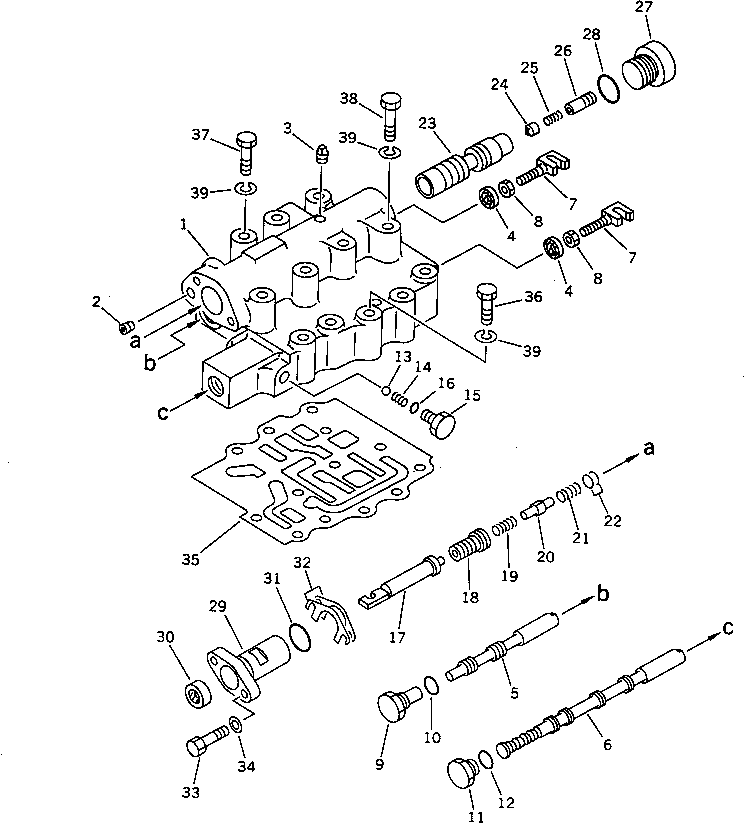

| ? | 114-15-00330 | • VALVE ASS'Y,SELECTOR AND INCHING (D31S) | 1 | SN: 40255- |
|||
| ? | 104-15-00320 | • VALVE ASS'Y,SELECTOR AND INCHING (D31S) | 1 | SN: 40001-40254 |
|||
| ? | 114-15-00330 | • VALVE ASS'Y,SELECTOR AND INCHING (D31Q) | 1 | SN: 40239- |
|||
| ? | 104-15-00320 | • VALVE ASS'Y,SELECTOR AND INCHING (D31Q) | 1 | SN: 40001-40238 |
|||
| ? | 104-15-35410 | • • BODY | 1 | SN: 40001- |
|||
| ? | 07043-00108 | • • PLUG | 3 | SN: 40001- |
|||
| ? | 07042-20108 | • • PLUG | 2 | SN: 40001- |
|||
| ? | 113-15-29110 | • • SEAL,OIL (K1) | 2 | SN: 40001- |
|||
| ? | 362-15-15430 | • • SPOOL | 1 | SN: 40001- |
|||
| ? | 362-15-15450 | • • SPOOL | 1 | SN: 40001- |
|||
| ? | 09363-00850 | • • YOKE | 2 | SN: 40001- |
|||
| ? | 01580-10806 | • • NUT | 2 | SN: 40001- |
|||
| ? | 104-15-25460 | • • PLUG | 1 | SN: 40001- |
|||
| ? | 07002-01623 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-25481 | • • PLUG | 1 | SN: 40001- |
|||
| ? | 07002-01823 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 103-15-15340 | • • DETENT ASS'Y | 2 | SN: 40001- |
|||
| ? | 04260-00635 | • • • BALL | 1 | SN: 40001- |
|||
| ? | 103-15-15350 | • • • SPRING | 1 | SN: 40001- |
|||
| ? | 103-15-15330 | • • • RETAINER | 1 | SN: 40001- |
|||
| ? | 07002-01223 | • • O-RING (K1) | 2 | SN: 40001- |
|||
| ? | 363-15-15510 | • • SPOOL | 1 | SN: 40001- |
|||
| ? | 104-15-35170 | • • STOPPER | 1 | SN: 40001- |
|||
| ? | 103-15-36160 | • • SPRING | 1 | SN: 40001- |
|||
| ? | 363-15-15530 | • • STOPPER | 1 | SN: 40001- |
|||
| ? | 103-15-36150 | • • SPRING (D31S) | 1 | SN: 40255- |
|||
| ? | ▩104-15-35150 | • • SPRING (D31S) | 1 | SN: 40001-40254 |
|||
| ? | (113-15-42711(13){103-15-36150)}\((D31S)\) | ||||||
| ? | 103-15-36150 | • • SPRING (D31Q) | 1 | SN: 40239- |
|||
| ? | ▩104-15-35150 | • • SPRING (D31Q) | 1 | SN: 40001-40238 |
|||
| ? | (113-15-42711(13){103-15-36150)}\((D31Q)\) | ||||||
| ? | 104-15-36490 | • • SHIM¤ 0.2MM | 4 | SN: 40001- |
|||
| ? | 104-15-36480 | • • SHIM¤ 0.5MM | 2 | SN: 40001- |
|||
| ? | 363-15-15520 | • • VALVE | 1 | SN: 40001- |
|||
| ? | 22W-75-18890 | • • VALVE | 1 | SN: 40001- |
|||
| ? | 125-15-15290 | • • SPRING | 1 | SN: 40001- |
|||
| ? | 22W-75-18880 | • • SLEEVE | 1 | SN: 40001- |
|||
| ? | 124-15-45450 | • • PLUG | 1 | SN: 40001- |
|||
| ? | 07002-03034 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 104-15-35210 | • • COVER | 1 | SN: 40001- |
|||
| ? | 113-15-29110 | • • SEAL,OIL (K1) | 1 | SN: 40001- |
|||
| ? | 07000-72021 | • • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 104-15-36470 | • • SHIM¤ 0.2MM | 6 | SN: 40001- |
|||
| ? | 104-15-36460 | • • SHIM¤ 0.5MM | 4 | SN: 40001- |
|||
| ? | 01010-50825 | • • BOLT | 2 | SN: 40001- |
|||
| ? | 01643-30823 | • • WASHER | 2 | SN: 40001- |
|||
| ? | 362-15-15920 | • GASKET,(D31S) (K1) | 1 | SN: 40302- |
|||
| ? | □104-15-25910 | • GASKET,(D31S) (K1) | 1 | SN: 40001-40301 |
|||
| ? | 362-15-15920 | • GASKET,(D31Q) (K1) | 1 | SN: 40298- |
|||
| ? | □104-15-25910 | • GASKET,(D31Q) (K1) | 1 | SN: 40001-40297 |
|||
| ? | 01010-50850 | • BOLT | 5 | SN: 40001- |
|||
| ? | 01010-50865 | • BOLT | 3 | SN: 40001- |
|||
| ? | 01010-50875 | • BOLT | 4 | SN: 40001- |
|||
| ? | 01602-20825 | • WASHER,SPRING | 12 | SN: 40001- |
