| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (114-15-00033) | TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40068-40254 |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40068-40238 |
|||
| ? | □113-15-00600 | TRANSMISSION ASS'Y | 1 | SN: 40001-40067 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2561. | ||||||

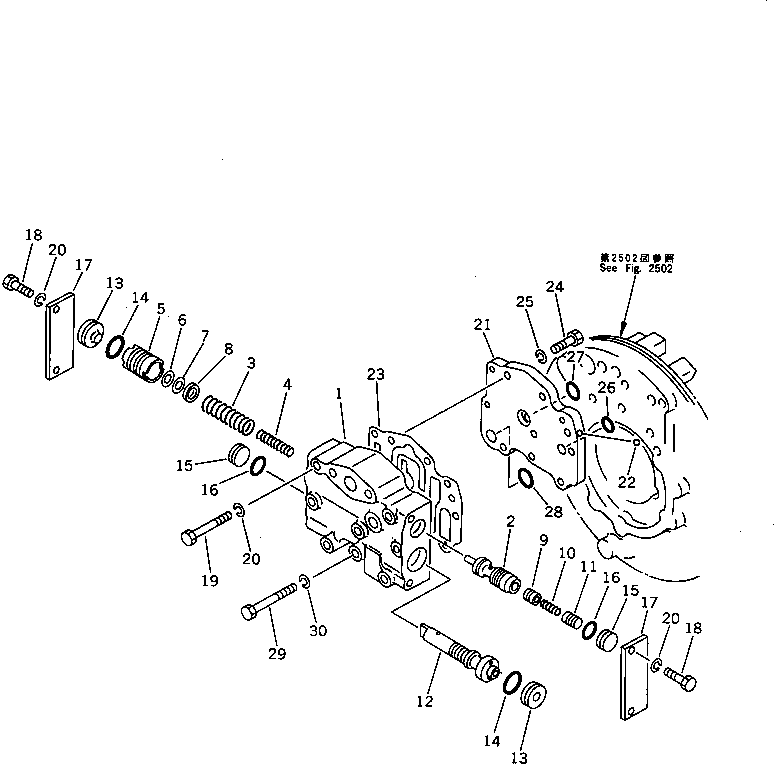

| ? | 113-15-00482 | • VALVE ASS'Y,MODULATION | 1 | SN: 40405- |
|||
| ? | □113-15-00481 | • VALVE ASS'Y,MODULATION | 1 | SN: 40068-40404 |
|||
| ? | □113-15-00480 | • VALVE ASS'Y,MODULATION | 1 | SN: 40001-40067 |
|||
| ? | 104-15-25110 | • • BODY | 1 | SN: 40001- |
|||
| ? | 104-15-25210 | • • SPOOL | 1 | SN: 40001- |
|||
| ? | 104-15-25290 | • • SPRING¤ (L= 62.0) | 1 | SN: 40001- |
|||
| ? | 113-15-45280 | • • SPRING | 1 | SN: 40068- |
|||
| ? | □104-15-25280 | • • SPRING | 1 | SN: 40001-40067 |
|||
| ? | 113-15-35220 | • • VALVE | 1 | SN: 40001- |
|||
| ? | 113-15-25260 | • • SHIM¤ 0.5MM | 3 | SN: 40001- |
|||
| ? | 113-15-25270 | • • SHIM¤ 0.2MM | 2 | SN: 40001- |
|||
| ? | 104-15-25260 | • • SPACER | 1 | SN: 40001- |
|||
| ? | 104-15-25490 | • • VALVE | 1 | SN: 40001- |
|||
| ? | 125-15-15290 | • • SPRING | 1 | SN: 40001- |
|||
| ? | 104-15-25480 | • • VALVE | 1 | SN: 40001- |
|||
| ? | 104-15-25321 | • • SPOOL | 1 | SN: 40001- |
|||
| ? | 104-15-25330 | • • STOPPER | 2 | SN: 40001- |
|||
| ? | 07000-73025 | • • O-RING (K1) | 2 | SN: 40001- |
|||
| ? | 104-15-25340 | • • STOPPER | 2 | SN: 40001- |
|||
| ? | 07000-72020 | • • O-RING (K1) | 2 | SN: 40001- |
|||
| ? | 103-15-25350 | • • PLATE | 2 | SN: 40001- |
|||
| ? | 01010-50820 | • • BOLT | 4 | SN: 40001- |
|||
| ? | 01010-50860 | • • BOLT | 3 | SN: 40001- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 7 | SN: 40001- |
|||
| ? | 113-15-00491 | • • SEAT ASS'Y | 1 | SN: 40405- |
|||
| ? | □113-15-00490 | • • SEAT ASS'Y | 1 | SN: 40001-40404 |
|||
| ? | ☆ | • • • SEAT | 1 | SN: 40405- |
|||
| ? | ☆ | • • • SEAT | 1 | SN: 40001-40404 |
|||
| ? | 04260-00635 | • • • BALL | 1 | SN: 40001- |
|||
| ? | 104-15-25140 | • • GASKET (K1) | 1 | SN: 40001- |
|||
| ? | 01010-51025 | • • BOLT | 2 | SN: 40001- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 2 | SN: 40001- |
|||
| ? | 07000-72014 | • O-RING (K1) | 2 | SN: 40001- |
|||
| ? | 07000-72018 | • O-RING (K1) | 1 | SN: 40405- |
|||
| ? | 07000-72016 | • O-RING (K1) | 1 | SN: 40001-40404 |
|||
| ? | 07000-72018 | • O-RING (K1) | 1 | SN: 40001- |
|||
| ? | 01010-50870 | • BOLT | 5 | SN: 40001- |
|||
| ? | 01602-20825 | • WASHER,SPRING | 5 | SN: 40001- |
