| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (114-15-00033) | TRANSMISSION ASS'Y | 1 | SN: 40405- |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40255-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31S) | 1 | SN: 40068-40254 |
|||
| ? | □113-15-00602 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40239-40404 |
|||
| ? | □113-15-00601 | TRANSMISSION ASS'Y,(D31Q) | 1 | SN: 40068-40238 |
|||
| ? | □113-15-00600 | TRANSMISSION ASS'Y | 1 | SN: 40001-40067 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2561. | ||||||

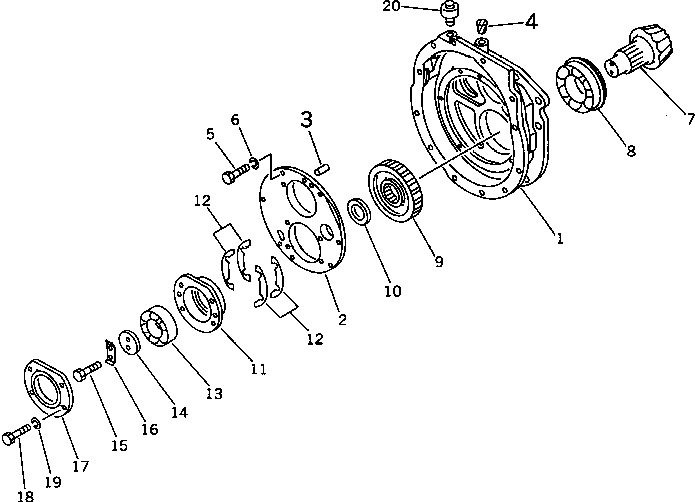

| ? | 114-15-00320 | • TRANSFER ASS'Y | 1 | SN: 40405- |
|||
| ? | 113-15-00620 | • TRANSFER ASS'Y | 1 | SN: 40001-40404 |
|||
| ? | 113-15-00530 | • • CASE ASS'Y | 1 | SN: 40001- |
|||
| ? | ☆ | • • • CASE | 1 | SN: 40001- |
|||
| ? | ☆ | • • • COVER | 1 | SN: 40001- |
|||
| ? | 04020-01024 | • • • PIN,DOWEL | 1 | SN: 40001- |
|||
| ? | 07049-01215 | • • PLUG | 1 | SN: 40001- |
|||
| ? | 01010-51025 | • • BOLT | 6 | SN: 40001- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 6 | SN: 40001- |
|||
| ? | 113-15-23240 | • • SHAFT | 1 | SN: 40001- |
|||
| ? | 113-15-43910 | • • BEARING,ROLLER | 1 | SN: 40405- |
|||
| ? | 113-15-23910 | • • BEARING,ROLLER | 1 | SN: 40001-40404 |
|||
| ? | 113-15-33220 | • • GEAR¤ 35 TEETH | 1 | SN: 40001- |
|||
| ? | 113-15-33390 | • • SPACER | 1 | SN: 40001- |
|||
| ? | 113-15-23360 | • • CAGE | 1 | SN: 40001- |
|||
| ? | 113-15-05070 | • • SHIM ASS'Y (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-23420 | • • • SHIM¤ 0.2MM (K1) | 8 | SN: 40001- |
|||
| ? | 113-15-23440 | • • • SHIM¤ 0.3MM (K1) | 4 | SN: 40001- |
|||
| ? | 113-15-23410 | • • • SHIM¤ 1.0MM (K1) | 2 | SN: 40001- |
|||
| ? | 06030-22308 | • • BEARING,ROLLER | 1 | SN: 40001- |
|||
| ? | 113-15-23380 | • • HOLDER | 1 | SN: 40001- |
|||
| ? | 01010-50825 | • • BOLT | 2 | SN: 40001- |
|||
| ? | 04081-03510 | • • LOCK (K1) | 1 | SN: 40001- |
|||
| ? | 113-15-33370 | • • PLATE | 1 | SN: 40001- |
|||
| ? | 01010-51035 | • • BOLT | 4 | SN: 40001- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 4 | SN: 40001- |
|||
| ? | 07030-00252 | • • BREATHER | 1 | SN: 40001- |
